Sony STR-DH500 User Manual

10
GB
* You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV or projector (page 15, 18).
You can use the supplied remote to operate the
receiver and to control the Sony audio/video
components that the remote is assigned to
operate (page 60).
RM-AAU020
E AUDIO INPUT/OUTPUT section
AUDIO IN
jacks
Connects to a Super
Audio CD player,
CD player, etc.
(page 16).
AUDIO OUT
jack
Connects to a
subwoofer (page
14).
F COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO IN/
OUT* jacks
Connects to a DVD
player, TV, or a
satellite tuner. You
can enjoy high
quality image (page
15, 20, 21).
G AUTO CAL MIC
AUTO CAL
MIC jack
Connects to the
supplied optimizer
microphone for the
Auto Calibration
function (page 25).
H DMPORT
DMPORT
jack
Connects to a
DIGITAL MEDIA
PORT adapter
(page 57).
White (L)
Red (R)
Black
Green
(Y)
Blue
(P
B/CB)
Red
(P
R/CR)

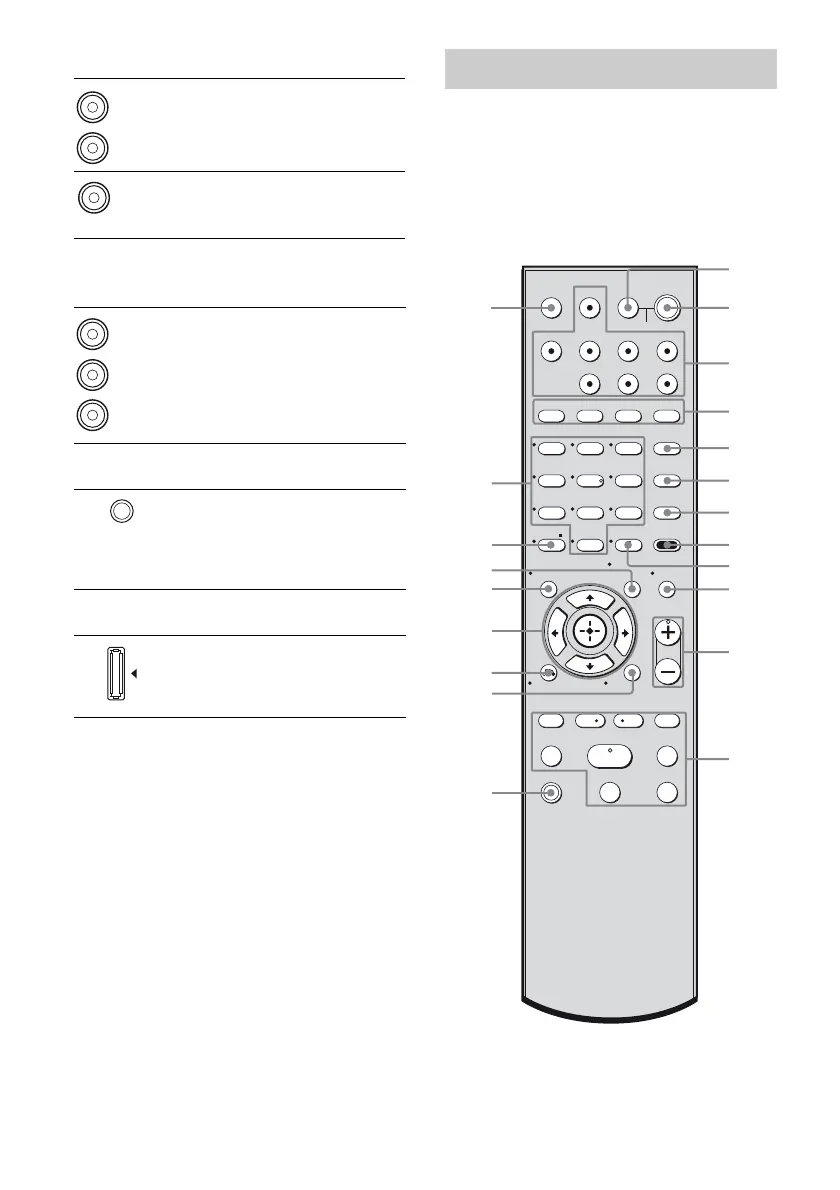

Remote commander
123
46
78
0/10 ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
TUNING –
TV
TUNING +
FM MODE
REPLAY ADVANCE
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
.
H
mM
X
x
< <
>
5
>10/
TV ?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
1
3
2
6
7
8
q;
9
qs
qa
4
5
qg
qj
qh
ql
w;
qd
qk
wa
qf

Sony STR-DH500 Specifications

General

Equalizer	Yes
Product color	Black
Audio decoders	DTS
Impedance	8 Ω
RMS rated power	500 W
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	1 %
Supported radio bands	AM, FM
Headphone outputs	1
Dimensions (WxDxH)	430 x 157.5 x 322 mm
Power requirements	120 V, 60 Hz
HDMI ports quantity	4
I/O ports	2 x Anten. 1 x Coax. - in 3 x Compon. - in 1 x Compon. - out 2 x HD Compon. - in 1 x HD Compon. - out 2 x Compos. - in 1 x Compos. - out 1 x DM 3 x HDMI - in 1 x HDMI - out 2 x Opt. - in 1 x Sub. - out
Power consumption (standby)	0.3 W

Weight and Dimensions

Weight	7400 g
