Sony STR-DH500 User Manual

6
GB

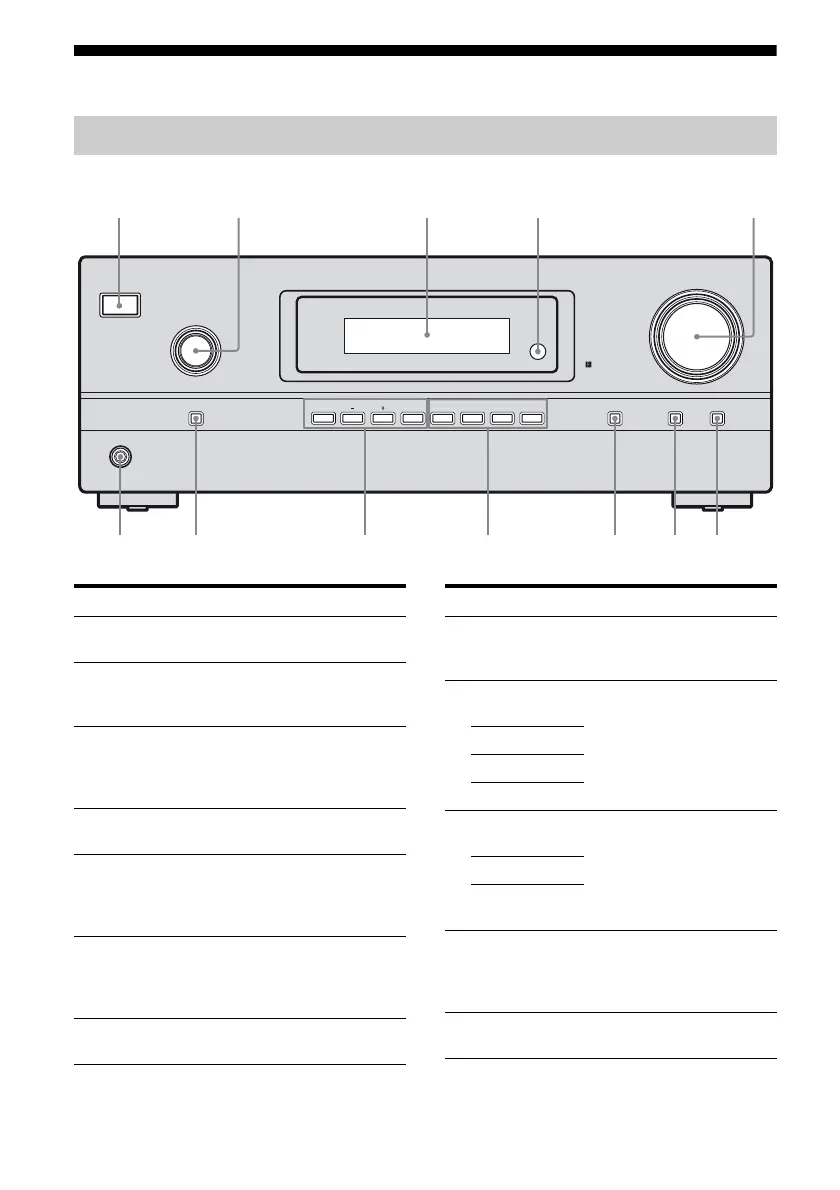

Description and location of parts
Front panel
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
1 3
4
2
67
8qaqs 9q;
5
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 23, 31, 32, 49).
B INPUT
SELECTOR
Turn to select the input
source to play back (page 29,
30, 31, 32, 49, 50, 53, 56, 60).
C Display The current status of the
selected component or a list
of selectable items appears
here (page 7).
D Remote
sensor
Receives signals from remote
commander.
E MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 28, 29, 31,
32).
F MUTING Press to turn off the sound
temporarily.
Press MUTING again to
restore the sound (page 29).
G DIMMER Press repeatedly to adjust
brightness of the display.
Name Function
H DISPLAY Press to select information
displayed on the display
(page 55, 59).
I 2CH/
A.DIRECT
Press to select a sound field
(page 44).
A.F.D.
MOVIE
MUSIC
J TUNING
MODE
Press to operate the tuner
(FM/AM) (page 50).
TUNING +/–
MEMORY/
ENTER
K INPUT MODE Press to select the input mode
when the same components
are connected to both digital
and analog jacks (page 56).
L PHONES jack Connects to headphones
(page 64).

Sony STR-DH500 Specifications

General

Equalizer	Yes
Product color	Black
Audio decoders	DTS
Impedance	8 Ω
RMS rated power	500 W
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	1 %
Supported radio bands	AM, FM
Headphone outputs	1
Dimensions (WxDxH)	430 x 157.5 x 322 mm
Power requirements	120 V, 60 Hz
HDMI ports quantity	4
I/O ports	2 x Anten. 1 x Coax. - in 3 x Compon. - in 1 x Compon. - out 2 x HD Compon. - in 1 x HD Compon. - out 2 x Compos. - in 1 x Compos. - out 1 x DM 3 x HDMI - in 1 x HDMI - out 2 x Opt. - in 1 x Sub. - out
Power consumption (standby)	0.3 W

Weight and Dimensions

Weight	7400 g
