Sony STR-DH500 User Manual

16
GB
4a: Connecting the audio
components

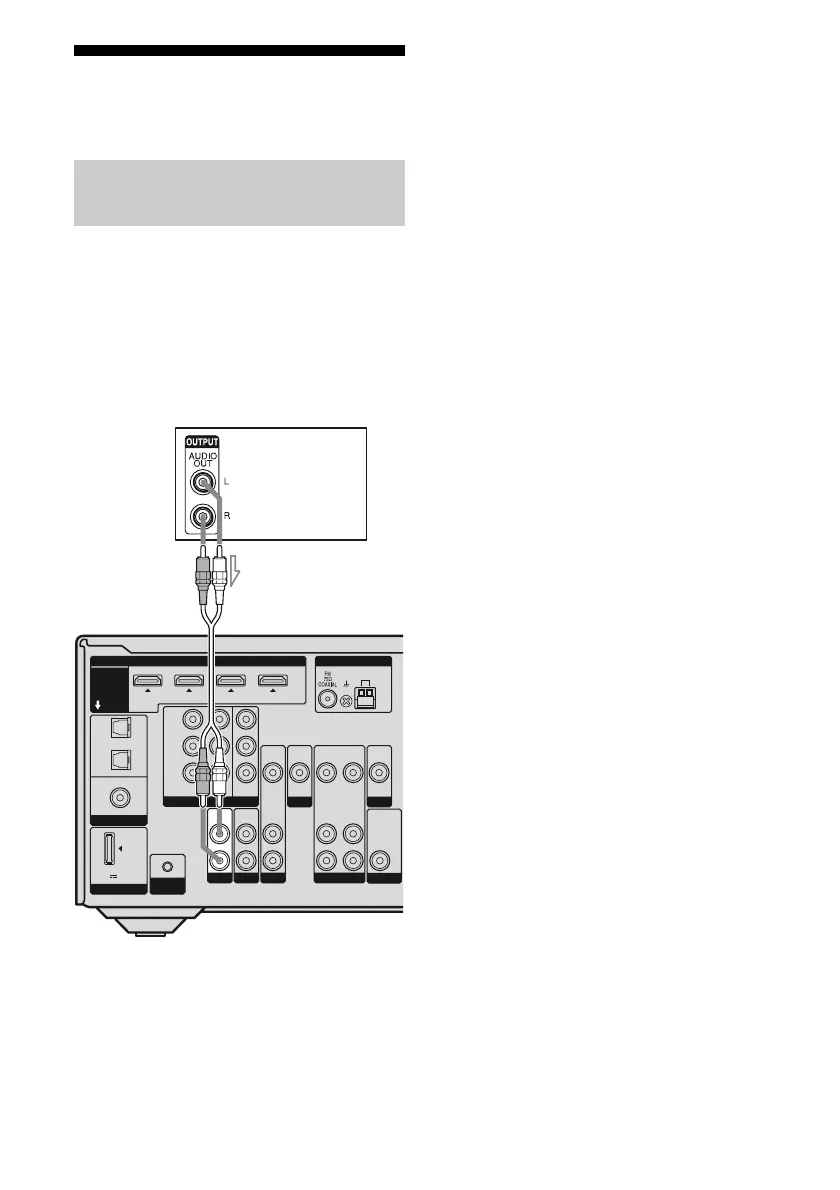

The following illustration shows how to
connect a Super Audio CD/CD player.
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
After connecting your audio component,
proceed to “4b: Connecting the video
components” (page 17) or “5: Connecting the
antennas (aerials)” (page 22).
Connecting a Super Audio CD/
CD player
BD
IN
DIGITAL
COMPONENT VIDEO
DMPORT
AUTO CAL
MIC
DC5V 0.7A MAX
OPTICAL
COAXIAL
SAT
IN
SAT IN
TV
IN
SAT
AUDIO
IN
DVD IN MONITOR
OUT
DVD
IN
Y
P
B / C B
P R / C R
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
ANTENNA
SAT IN DVD IN BD IN OUT
HDMI
CONNECT TO
DIGITAL
INPUT
FOR
AUDIO
SA-CD / CD
R
IN
L
Super Audio CD
player/CD player
A
A Audio cord (not supplied)

Sony STR-DH500 Specifications

General

Equalizer	Yes
Product color	Black
Audio decoders	DTS
Impedance	8 Ω
RMS rated power	500 W
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	1 %
Supported radio bands	AM, FM
Headphone outputs	1
Dimensions (WxDxH)	430 x 157.5 x 322 mm
Power requirements	120 V, 60 Hz
HDMI ports quantity	4
I/O ports	2 x Anten. 1 x Coax. - in 3 x Compon. - in 1 x Compon. - out 2 x HD Compon. - in 1 x HD Compon. - out 2 x Compos. - in 1 x Compos. - out 1 x DM 3 x HDMI - in 1 x HDMI - out 2 x Opt. - in 1 x Sub. - out
Power consumption (standby)	0.3 W

Weight and Dimensions

Weight	7400 g
