Sony STR-DH500 - Connecting a DVD Player

20
GB

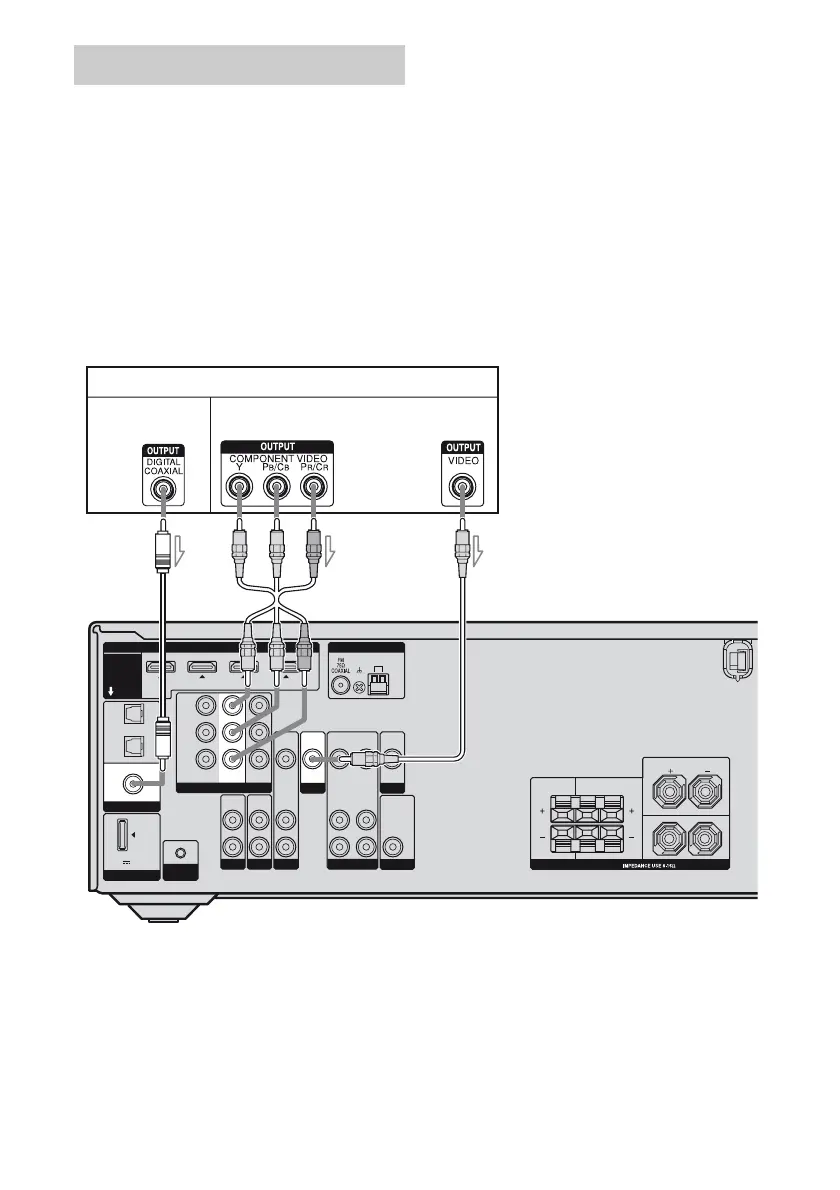

The following illustration shows how to
connect a DVD player.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• As this receiver does not have analog audio input
jacks for DVD, connect your DVD player to the
DIGITAL COAXIAL DVD IN jack on the
receiver. To output sound from the front left/right
speakers only, press 2CH.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a DVD player
DMPORT
AUTO CAL
MIC
SA-CD / CD
DC5V 0.7A MAX
IN
TV
IN
SAT
AUDIO
IN
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
SURROUNDCENTER
L
L
R
R
SPEAKERS
FRONT
R
L
ANTENNA
SAT IN DVD IN BD IN OUT
HDMI
CONNECT TO
DIGITAL
INPUT
FOR
AUDIO
COMPONENT VIDEO
SAT IN DVD IN MONITOR
OUT
Y
P
B / C B
P R / C R
BD
IN
DIGITAL
OPTICAL
COAXIAL
SAT
IN
DVD
IN
DVD player
ABC
A Coaxial digital cord (not supplied)
B Component video cord (not supplied)
C Video cord (not supplied)
Audio signals Video signals
