Other Operations
You can listen to the sound from the
component connected through the DIGITAL
MEDIA PORT adapter to the DMPORT jack
on the receiver.
You can also view the images on the TV
screen by connecting the video output of the
DIGITAL MEDIA PORT adapter to the
receiver.
To view the images, proceed to “Watching a
connected component through DMPORT
connection” on page 58.
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
Press and hold both sides of the connector and
then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT
adapter, be sure the connector is inserted with the
arrow mark facing towards the arrow mark on the
DMPORT jack.
• Be sure to make DMPORT connections firmly,
insert the connector straight in.
• As the connector of the DIGITAL MEDIA PORT
adapter is fragile, be sure to handle with care when
placing or moving the receiver.

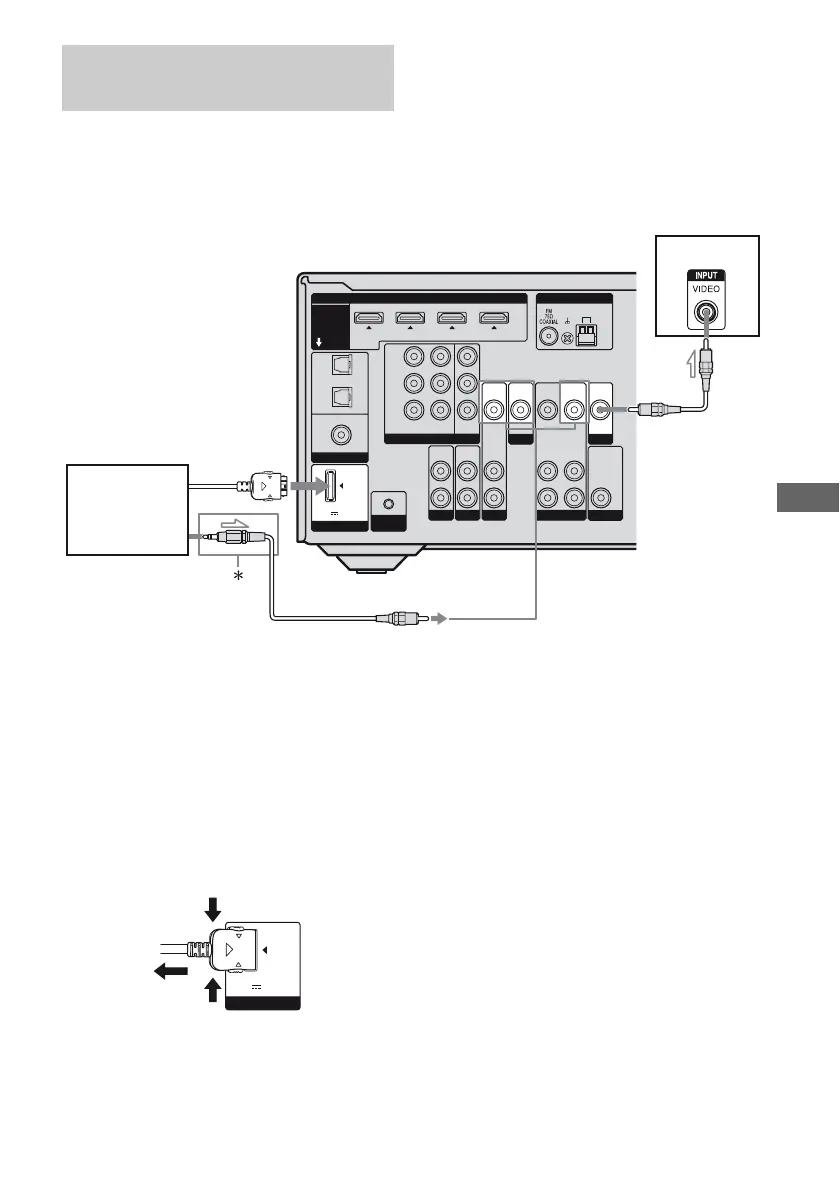

Connecting the DIGITAL MEDIA
PORT adapter
BD
IN
DIGITAL
COMPONENT VIDEO
DMPORT
AUTO CAL
MIC
SA-CD
/
CD
DC5V 0.7A MAX
OPTICAL
COAXIAL
SAT
IN
SAT IN
IN
TV
IN
DVD IN MONITOR
OUT
DVD
IN
Y
P
B
/
C
B
P
R
/
C
R
AUDIO
OUT
MONITOR
SUBWOOFER
VIDEO
OUT
AM
R
L
ANTENNA
SAT IN DVD IN BD IN OUT
HDMI
CONNECT
TO
DIGITAL
INPUT
FOR
AUDIO
SAT
AUDIO
IN
VIDEO
IN
VIDEO
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
DIGITAL MEDIA
PORT adapter
TV
A
* The type of connector varies depending on the DIGITAL MEDIA PORT adapter.
For details, refer to the operating instructions supplied with the DIGITAL MEDIA PORT adapter.
A Video cord (not supplied)
To one of the
VIDEO IN jacks
A
DMPORT
DC5V 0.7A MAX
2
1
To Next Page
