15
GB

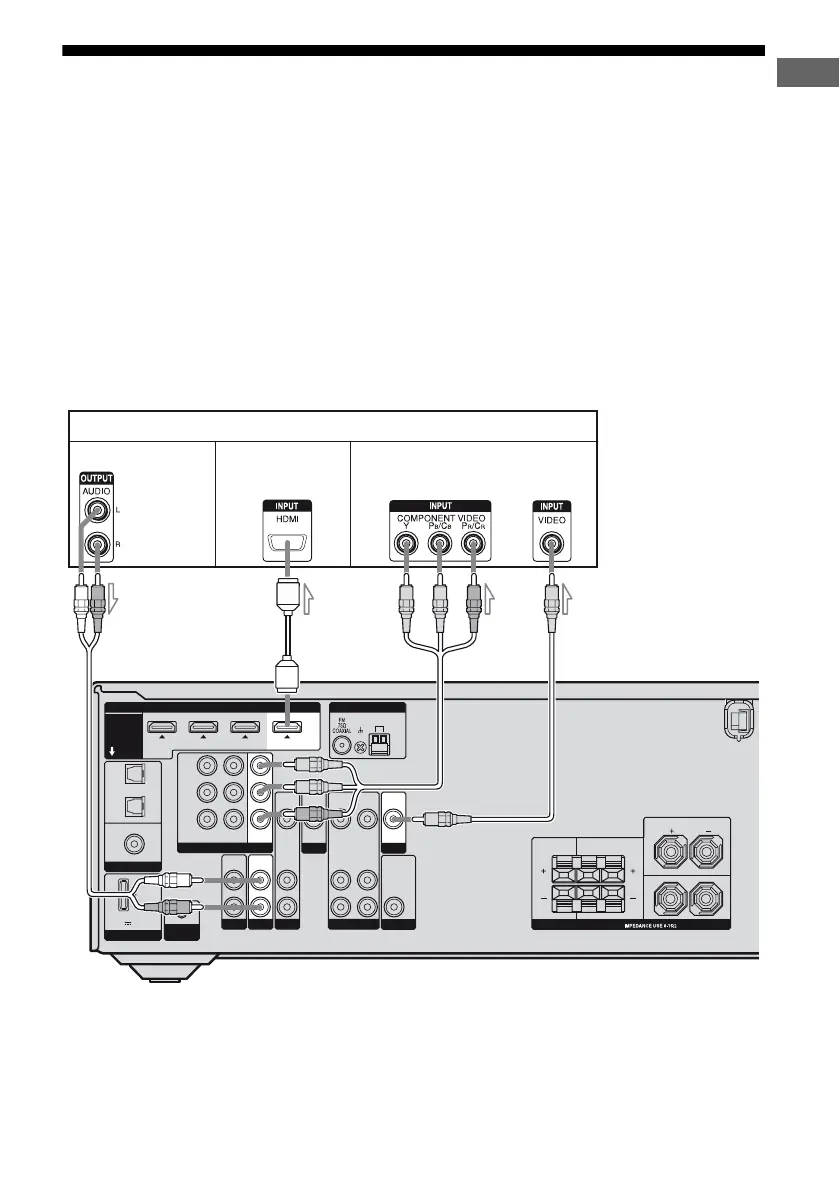

Getting Started
3: Connecting the TV
You can watch the selected input image when
you connect the HDMI OUT or MONITOR
OUT jack to a TV or projector.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
Note
Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
Tip
To output the sound of the TV from the speakers
connected to the receiver, be sure to:
– connect the audio output jacks of the TV to the TV
AUDIO IN jacks of the receiver.
– turn off TV’s volume or activate the TV’s muting
function.
BD
IN
DIGITAL
DMPORT
AUTO CAL
MIC
SA-CD
/
CD
DC5V 0.7A MAX
OPTICAL
COAXIAL
SAT
IN
IN
TV
IN
SAT
AUDIO
IN
DVD
IN
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
SURROUNDCENTER
L
L
R
R
SPEAKERS
FRONT
ANTENNA
SAT IN DVD IN BD IN
HDMI
CONNECT
TO
DIGITAL
INPUT
FOR
AUDIO
COMPONENT VIDEO
SAT IN DVD IN MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
R
L
OUT
TV
ACD
A Audio cord (not supplied)
B HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
C Component video cord (not supplied)
D Video cord (not supplied)
Audio signals Video signalsAudio/video
signals
B
To Next Page
