Sony STR-DH500 User Manual

31
GB
Playback
Listening/Watching a component
Listening to a Super Audio CD/CD
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
123
46
78
0/10 ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP
DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
TUNING –
TV
TUNING +
FM MODE
REPLAY ADVANCE
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
.
H
mM
X
x
< <
>
5
>10/
TV ?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
5
5
3
2
3
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating
instructions supplied with the
Super Audio CD player or CD
player.
Tip
You can select the sound field to
suit the music. Refer to page 44
for details.
Recommended sound fields:
Classical: HALL
Jazz: JAZZ
Live concert: CONCERT

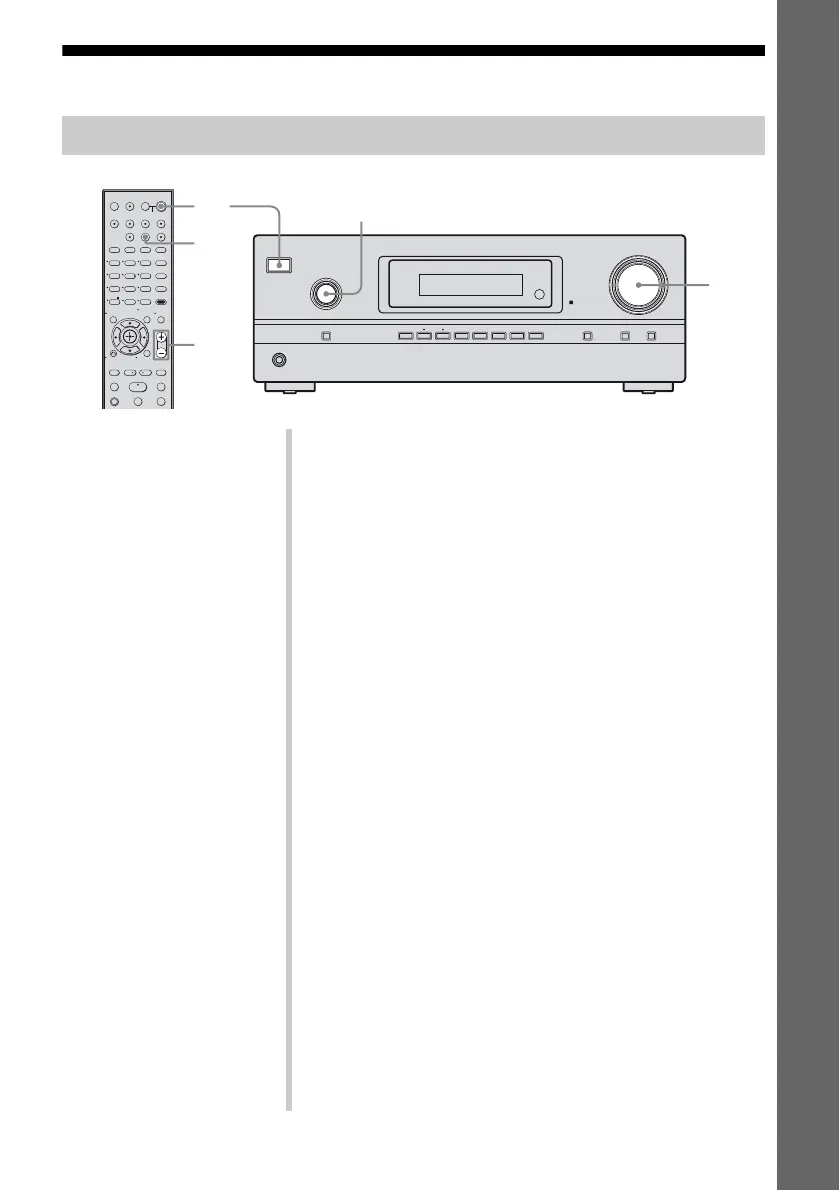

1 Turn on the Super Audio CD player/CD
player, then place the disc on the tray.
2 Turn on the receiver.
3 Press SA-CD/CD.
You can also use INPUT SELECTOR on the receiver to
select “SA-CD/CD”.
4 Play back the disc.
5 Adjust to a suitable volume.
6 After you have finished listening to the
Super Audio CD/CD, eject the disc and turn
off the receiver and Super Audio CD player/
CD player.

Sony STR-DH500 Specifications

General

Equalizer	Yes
Product color	Black
Audio decoders	DTS
Impedance	8 Ω
RMS rated power	500 W
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	1 %
Supported radio bands	AM, FM
Headphone outputs	1
Dimensions (WxDxH)	430 x 157.5 x 322 mm
Power requirements	120 V, 60 Hz
HDMI ports quantity	4
I/O ports	2 x Anten. 1 x Coax. - in 3 x Compon. - in 1 x Compon. - out 2 x HD Compon. - in 1 x HD Compon. - out 2 x Compos. - in 1 x Compos. - out 1 x DM 3 x HDMI - in 1 x HDMI - out 2 x Opt. - in 1 x Sub. - out
Power consumption (standby)	0.3 W

Weight and Dimensions

Weight	7400 g

Summary

Safety and Warning Information

Fire and Electric Shock Prevention

Measures to reduce risk of fire/electric shock from exposure to rain, moisture, and heat.

Battery Handling and Disposal

Instructions for safe battery handling and proper disposal in accordance with regulations.

Front Panel and Indicator Overview

Front Panel Controls and Layout

Detailed description of the receiver's front panel buttons, display, and jacks.

Display Indicators Explained

Rear Panel and Component Connections

Rear Panel Connection Terminals

Details on digital/analog input/output, antenna, and speaker connection jacks.

Connecting Audio, Video, and DMPORT

Remote Commander Operations

Remote Commander Overview and Functions

Introduction to the remote commander and its buttons for power, input, sound, tuning, and menus.

Getting Started: Initial Setup

Installing and Connecting Speakers

Guide to setting up a 5.1 channel speaker system and connecting them to the receiver.

Connecting the TV

Guide to connecting the television to the receiver for viewing.

Connecting Audio and Video Components

Instructions for connecting various audio/video components like CD players, DVD players, tuners, and VCRs.

Preparing the Receiver and Remote

Connecting power and performing initial setup operations.

Automatic Calibration (AUTO CALIBRATION)

Procedure to automatically calibrate speaker levels, distances, and settings.

Adjusting Speaker Levels and Balance

Using the test tone to adjust speaker levels and balance for optimal listening.

Playback Operations

Selecting and Playing Components

How to select and play back audio or video components connected to the receiver.

Amplifier Operations

Navigating Amplifier Menus

Guide to navigating and using the receiver's amplifier menus for adjustments.

Menu Parameters Summary

Summary of available settings and parameters within each amplifier menu.

System and Calibration Settings

Audio Adjustments

Tone and Surround Sound

Tuner and Audio Settings

Video Settings

System Speaker Configuration

Speaker Distance Settings

Surround Speaker Positioning

Enjoying Surround Sound

AUTO FORMAT DIRECT (A.F.D.) Mode

Listening to high fidelity sound and selecting decoding modes for stereo and multi-channel audio.

Selecting Pre-Programmed Sound Fields

Special Sound Modes: 2CH Stereo and Analog Direct

Tuner Operations

Listening to FM/AM Radio

How to listen to FM and AM broadcasts using the built-in tuner.

Station Tuning Methods

Other Operations

Input Mode and DMPORT Usage

Recording and Remote Button Customization

Precautions for Safe Use

Safety and Power Source Guidelines

Placement and Heat Buildup Considerations

Troubleshooting Common Issues

Audio Output Problems

Digital Sound and Recording Issues
