1: Installing the speakers
This receiver allows you to use up to a 7.2
channel system (7 speakers and 2
subwoofers).

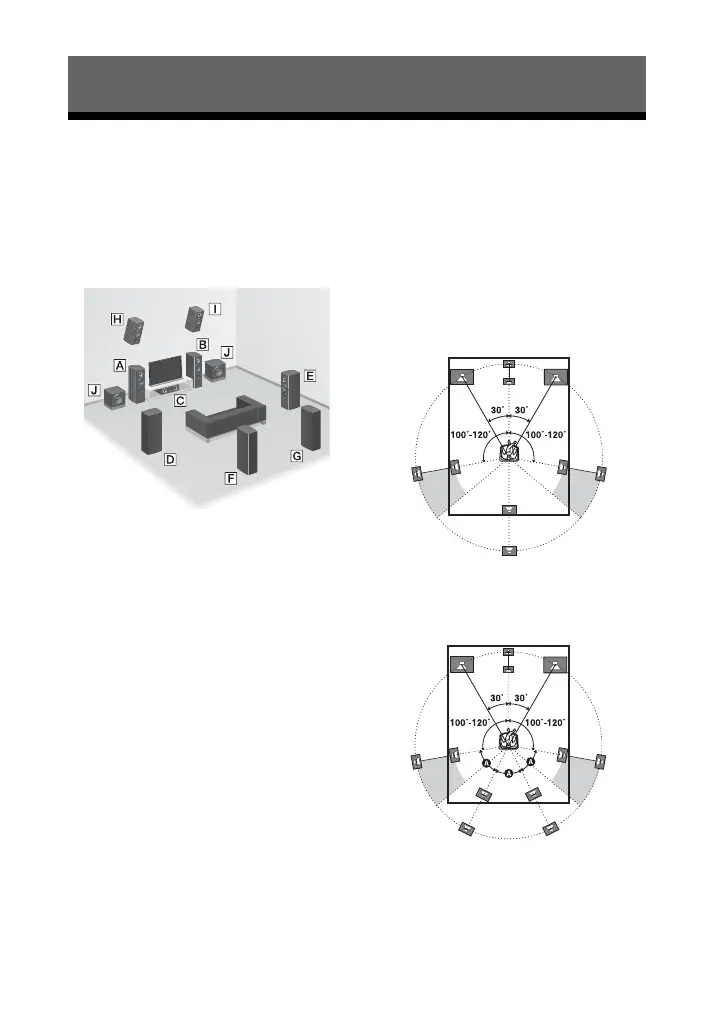

Example of speaker system
configuration
A Front speaker (Left)
B Front speaker (Right)
C Center speaker
D Surround speaker (Left)
E Surround speaker (Right)
F Surround back speaker (Left)*
G Surround back speaker (Right)*
H Front high speaker (Left)*
I Front high speaker (Right)*
J Subwoofer
* You cannot use the surround back speakers and
the front high speakers simultaneously.
5.1 channel speaker system
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer.
7.1 channel speaker system
using surround back
speakers
You can enjoy high fidelity reproduction of
DVD or Blu-ray Disc software recorded
sound in 6.1 channel or 7.1 channel format.
• 6.1 channel speaker placement
Place the surround back speaker behind
the listening position.
• 7.1 channel speaker placement
Place the surround back speakers as
shown in the illustration below. The angle
A should be the same.
Connections
To Next Page
