STR-ZA5000ES
11

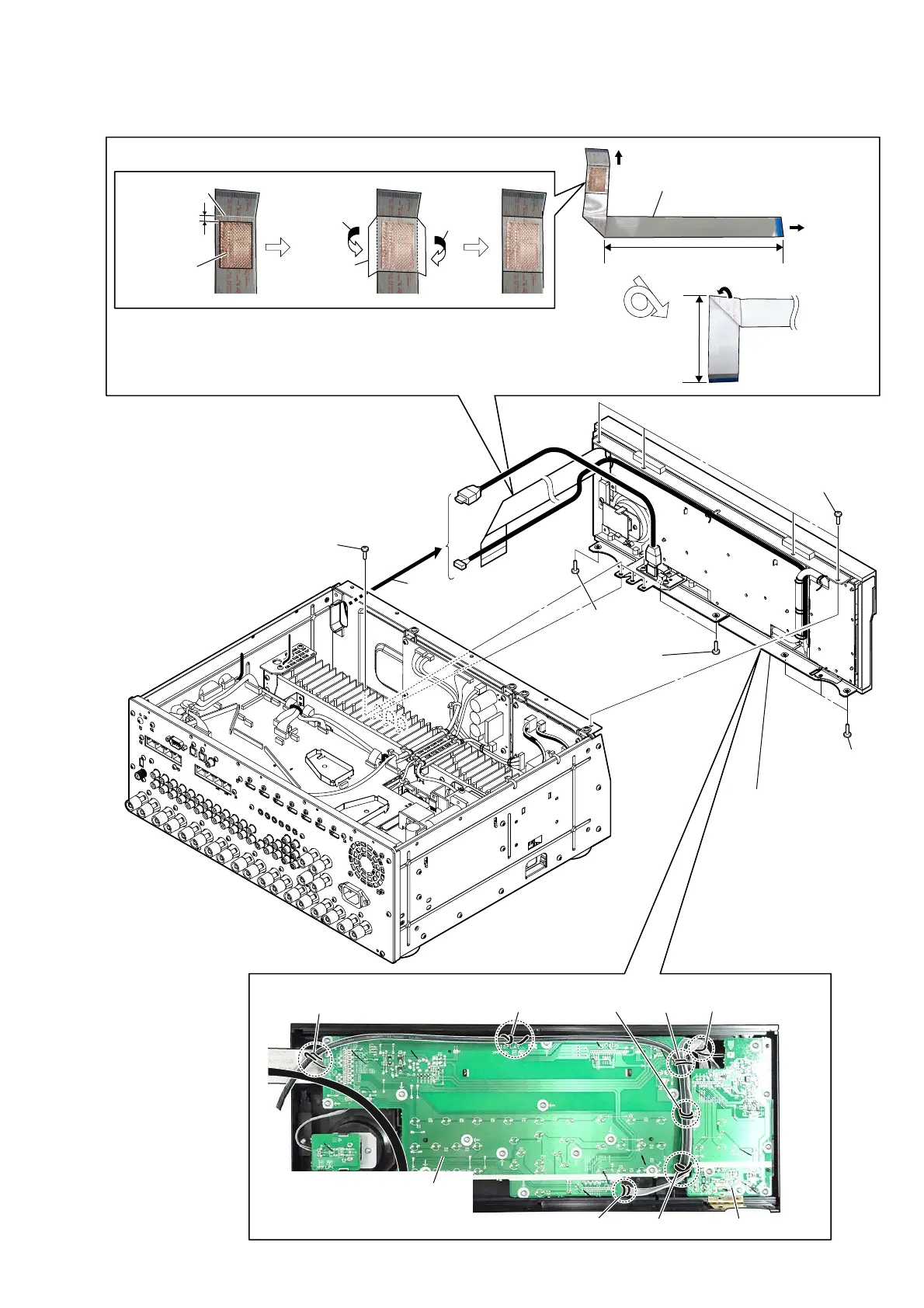

2-5. FRONT PANEL BLOCK-2
– Rear view –
– Front panel block rear view –
:LUHVHWWLQJ
1 three screws
(BVTP3 u 8)
1 four screws
(BVTP3 u 8)
1 three screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
3 front panel block
2 Draw the wires out of
the hole in chassis.
to DISPLAY
board
to DIGITAL board
flexible flat cable (FFC 29P (400))
long side
Bend.
short side
7 to 8 mm
folded line
copper tape
W25X35
(sub material)
teflon tape
W50X50
(sub material)
fold
fold
Flexible flat cable))&3VHWWLQJ
POWER_KEY board
DISPLAY board
lead pin
lead pin
lead pinlead pin
lead pin
lead pin
lead pin
