Sony STR-ZA5000ES Service Manual

STR-ZA5000ES
17

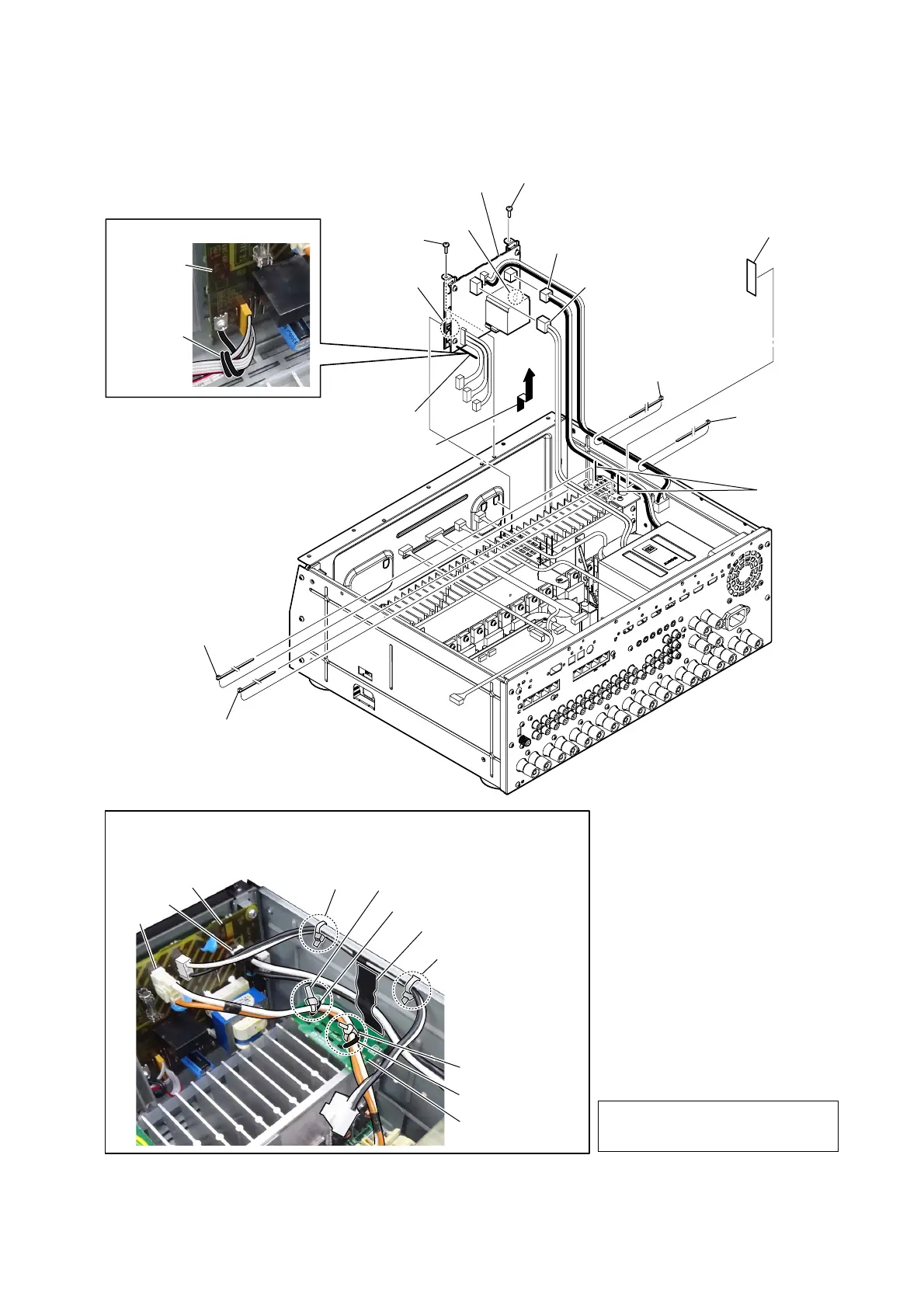

2-12. STBY BOARD BLOCK
– Rear view –
 :ire VeWWiQJ
5
AC inlet cable
connector (CN01)
4
main power transformer
cable connector
(CN11)
6 screw
(BVTP3 u 8)
6 screw
(BVTP3 u 8)
1 Cut the cable tie.
(See Fig. E)
(See Note 2)
1 Cut the cable tie.
(See Fig. E)
(See Note 2)
3
saranet cushion
(LXWXT)
9 Remove the wire
from the lead pin.
2 Remove the wire
from two lead pins.
(See Fig. E)
8 hook
8 hook
7 Remove the STBY board
block in the direction
of the arrow.
0 STBY board block
1 Cut the cable tie.
(See Fig. E)
(See Note 2)
1 Cut the cable tie.
(See Fig. E)
(See Note 2)
 :ire VeWWiQJ
STBY board
CN11
CN01
cable tie
cable tie
cable tie
cable tie
lead pin
HS_COVER-R board
lead pin
STBY board
lead pin
saranet cushion (LXWXT)
 )iJ ( !
Note 2:
During reassembly, use new cable
ties to fasten the wires back in place
as they were before disassembly.
Note 1:
Do not touch the wires to the heat sink.
