Sony STR-ZA5000ES Service Manual

83
STR-ZA5000ES

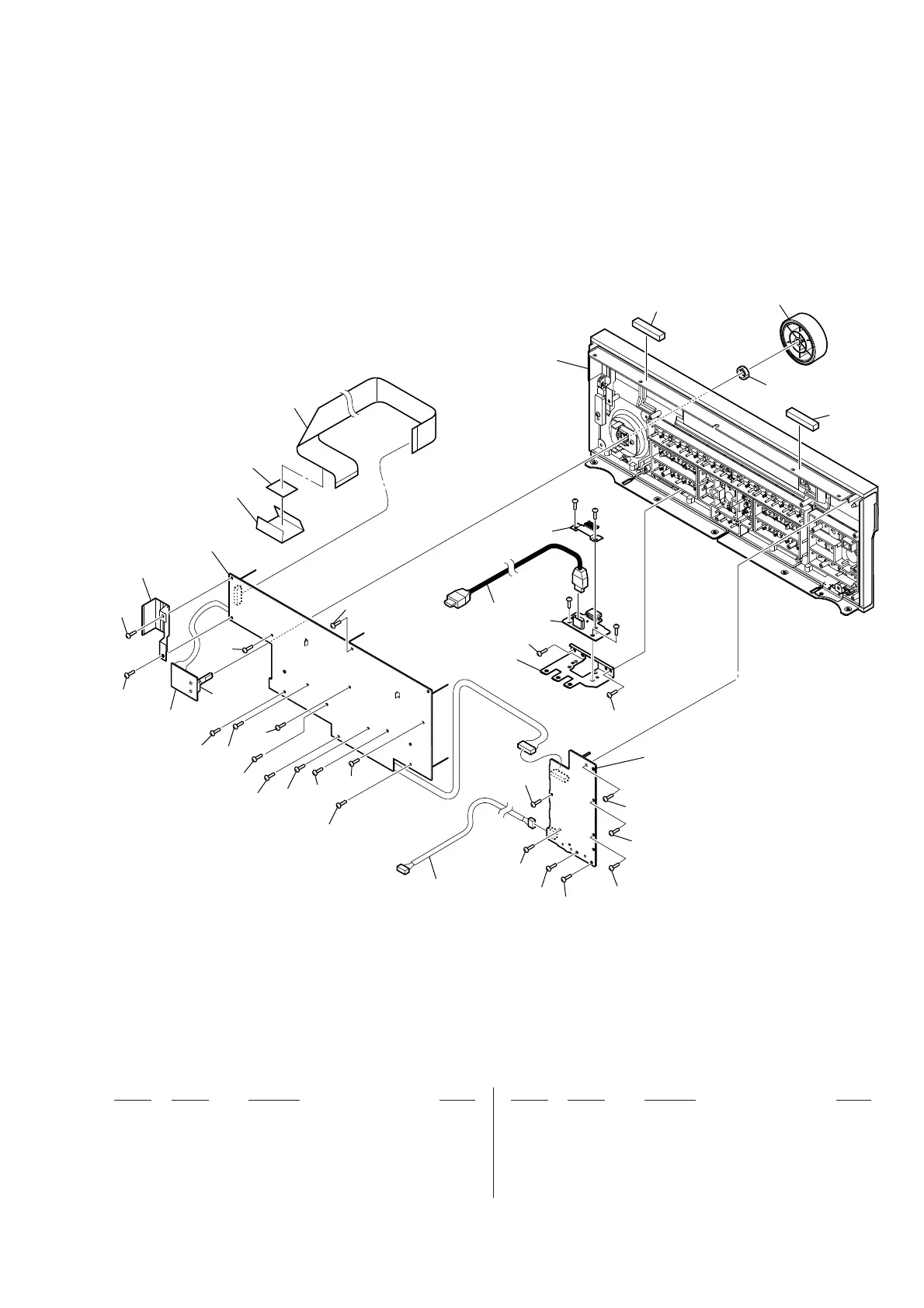

7-3. DISPLAY BOARD SECTION
• Rear view
101
101
101
101
103
103
not supplied
(M_VOL board)
EN153
101
101
101
101
not supplied
101
101
101
not supplied
(POWER_KEY board)
front panel section
104
supplied with EN153
101
101
101
101
101
101
FFC3
101
not supplied
(DISPLAY board)
not supplied
not supplied
not supplied
101
102
101
#2
#2
not supplied
not supplied
HC1
#2
#2
101
101
101 3-087-053-01 +BVTP2.6 (3CR)
102 A-2082-805-A F-HDMI BOARD, COMPLETE
103 4-152-293-01 SPACER (408)
104 X-2592-230-1 KNOB (VOL-AL) ASSY
EN153 1-418-725-41 ENCODER, ROTARY (12 TYPE) (Including nut)
(MASTER VOLUME)
FFC3 1-921-391-32 FFC 29P (400)
HC1 1-848-324-11 HDMI CABLE
#2 7-685-645-71 SCREW +BVTP 3X6 TYPE2 IT-3
