Sony STR-ZA5000ES Service Manual

STR-ZA5000ES
24

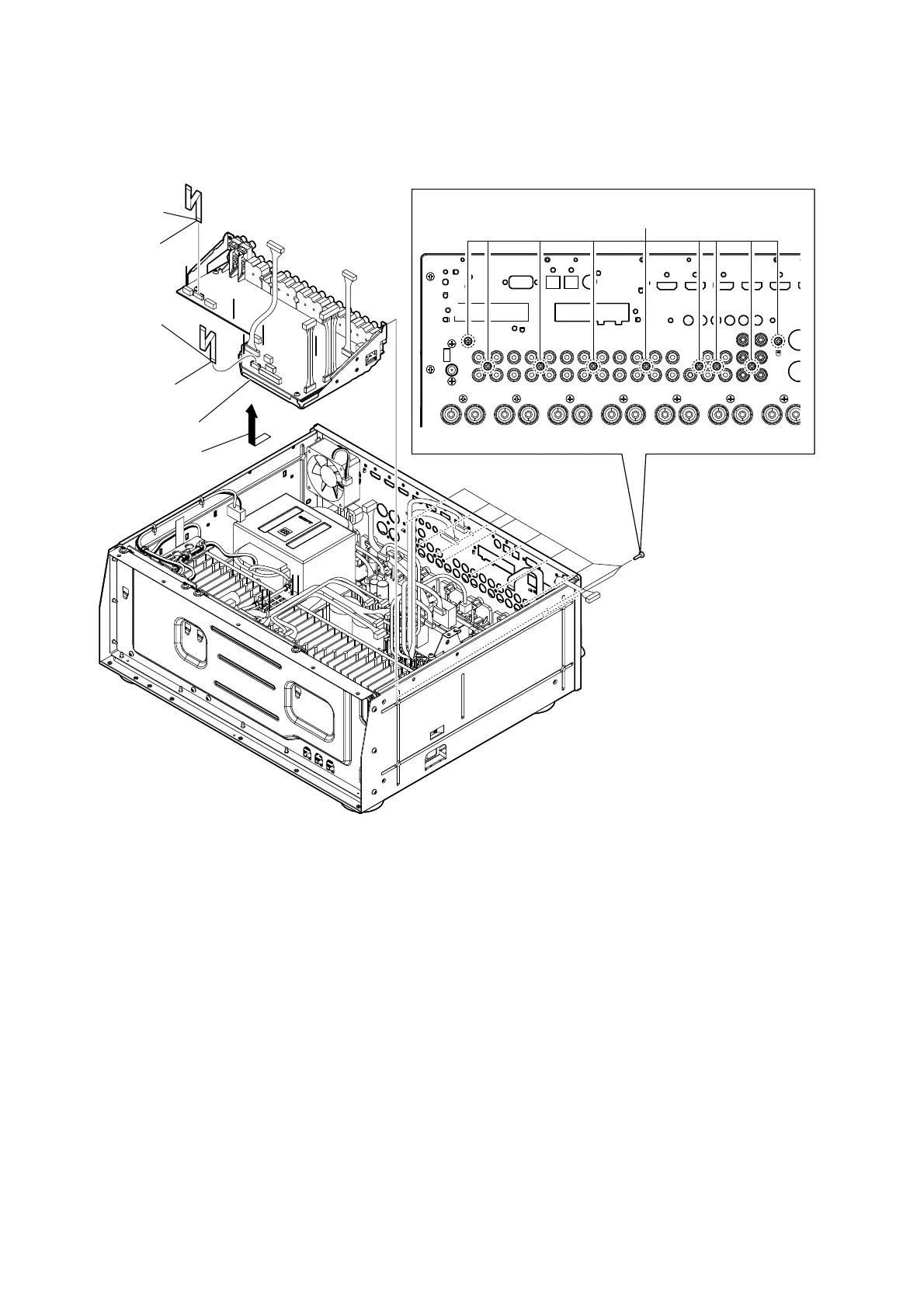

2-20. ANALOG BOARD BLOCK-2
1 nine screws
(BV3 u 8CU)
5
ANALOG board block
4 flexible flat cable
(FFC 11P (160))
(FFC2) (CN6508)
3 flexible flat cable
(FFC 9P (130))
(FFC1) (CN241)
2 Remove the ANALOG
board block in the
direction of the arrow.
The opposite side is
the terminal side.
The opposite side is
the terminal side.
– Rear view –
