Sony STR-ZA5000ES Service Manual

STR-ZA5000ES
15

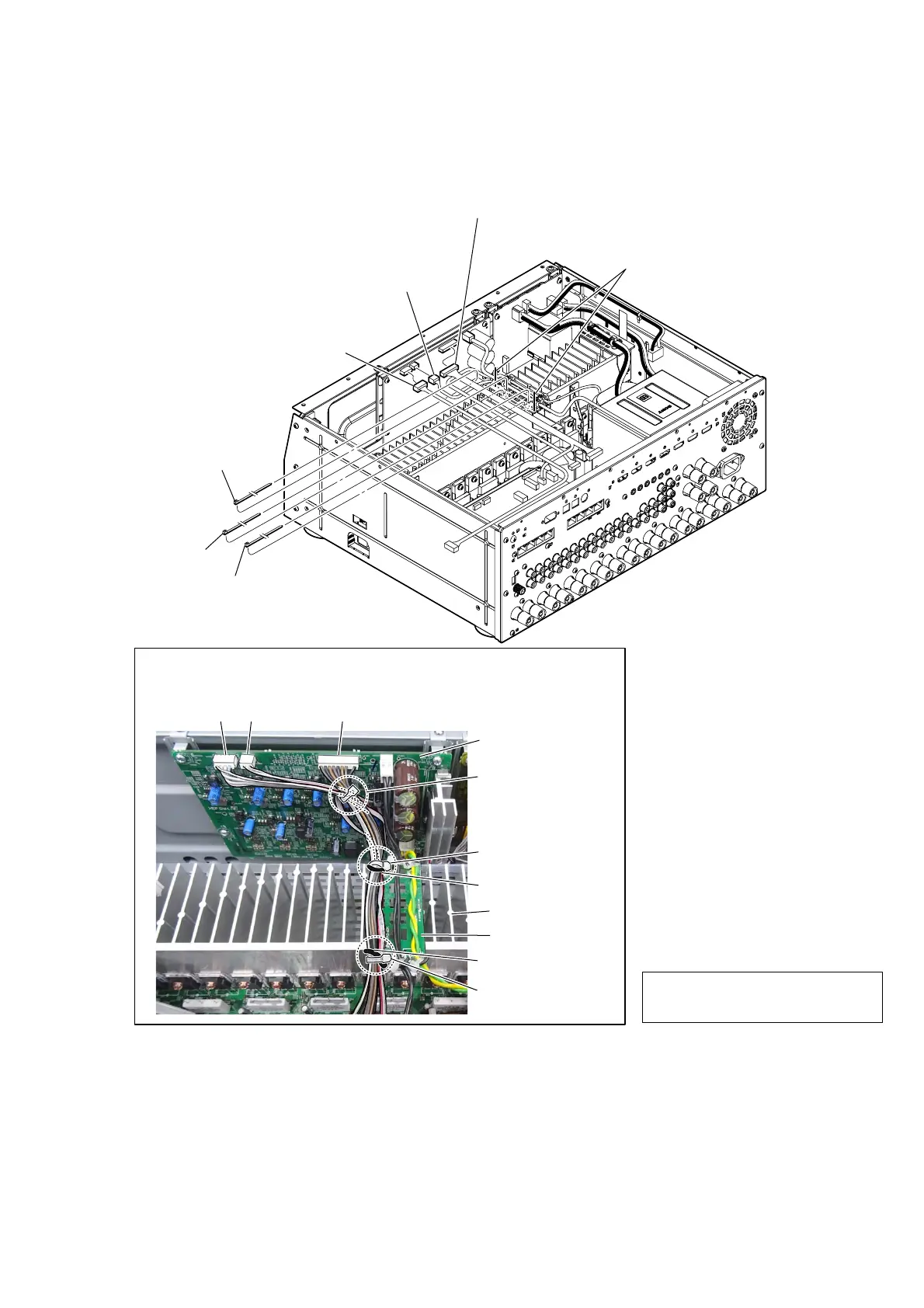

2-10. DCDC BOARD BLOCK-1
• Continued on 2-11 (page 16).
– Rear view –
:LUHVHWWLQJ
cable tie
CN1651 CN1671 CN1631
DCDC board
cable tie
lead pin
heat sink
HS_COVER_C board
lead pin
cable tie
4
STBY board
cable connector
(CN1671)
3
DIGITAL board
cable connector
(CN1651)
5
DIGITAL board and
HUB board cable
connector (CN1631)
2 Remove the wire
from two lead pins.
(See Fig. C)
1 Cut the cable tie.
(See Fig. C)
(See Note 2)
1 Cut the cable tie.
(See Fig. C)
(See Note 2)
1 Cut the cable tie.
(See Fig. C)
(See Note 2)
)LJ&!
Note 2:
During reassembly, use new cable
ties to fasten the wires back in place
as they were before disassembly.
Note 1:
Do not touch the wires to the heat sink.
