STR-ZA5000ES
35
SECTION 4
ELECTRICAL CHECK
TUNER SECTION
0 dB = 1 V

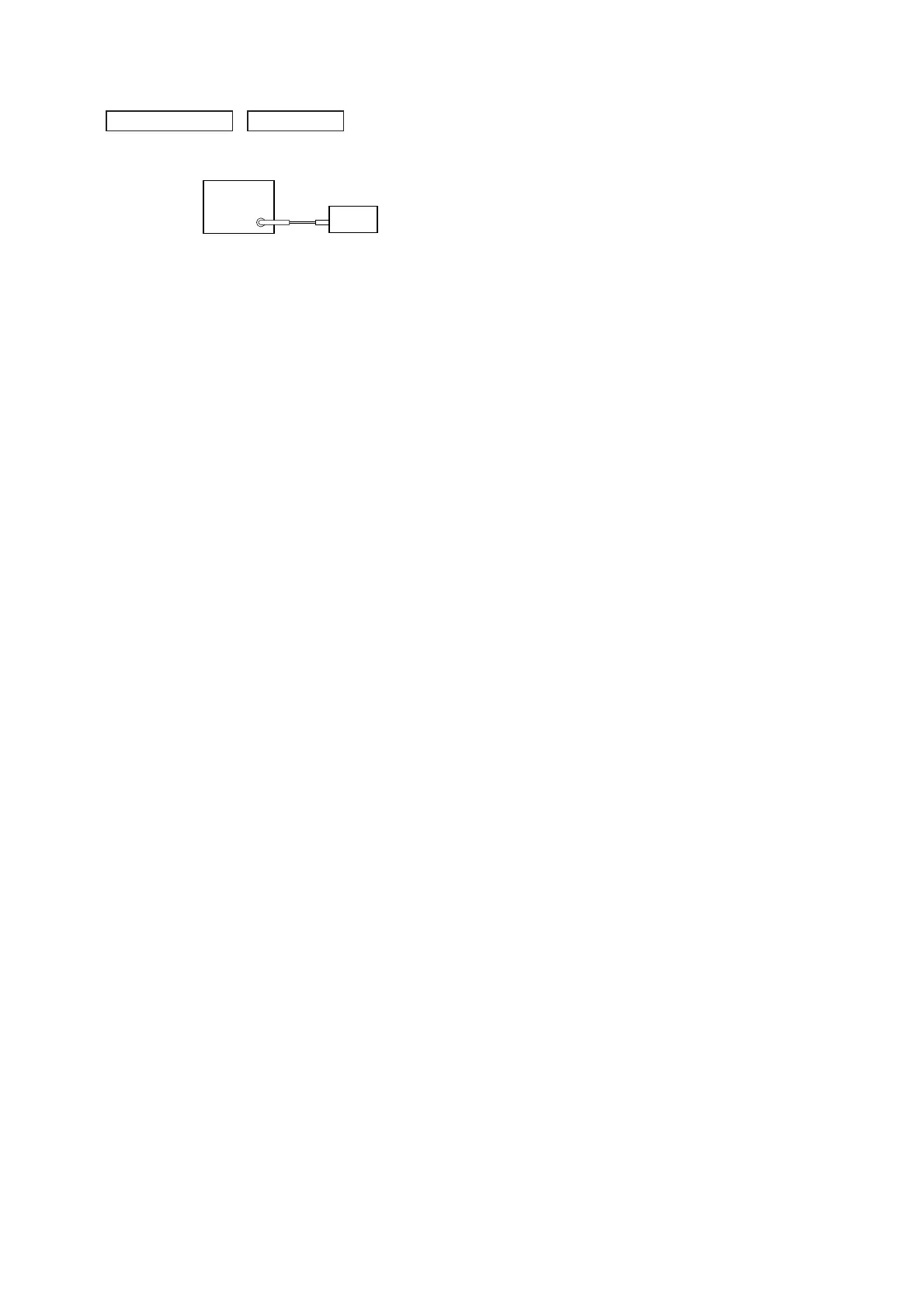

FM AUTO STOP CHECK
signal
generator
unit
Procedure:
1. Press the [
1
] button to turn the power on.
2. Input the following signal from signal generator to FM antenna
input directly.
Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)
Note: Use 75 ohm coaxial cable to connect signal generator and the unit.
You cannot use video cable for checking.
Use signal generator whose output impedance is 75 ohm.
3. Press the [TUNER] button to turn the FM tuner function and
scan the input FM signal with automatic scanning.
4. Confi rm that input frequency of A, B and C detected and auto-
matic scanning stops.
When the station signal is received in good condition, automatic
scanning stops.
