88
STR-ZA5000ES

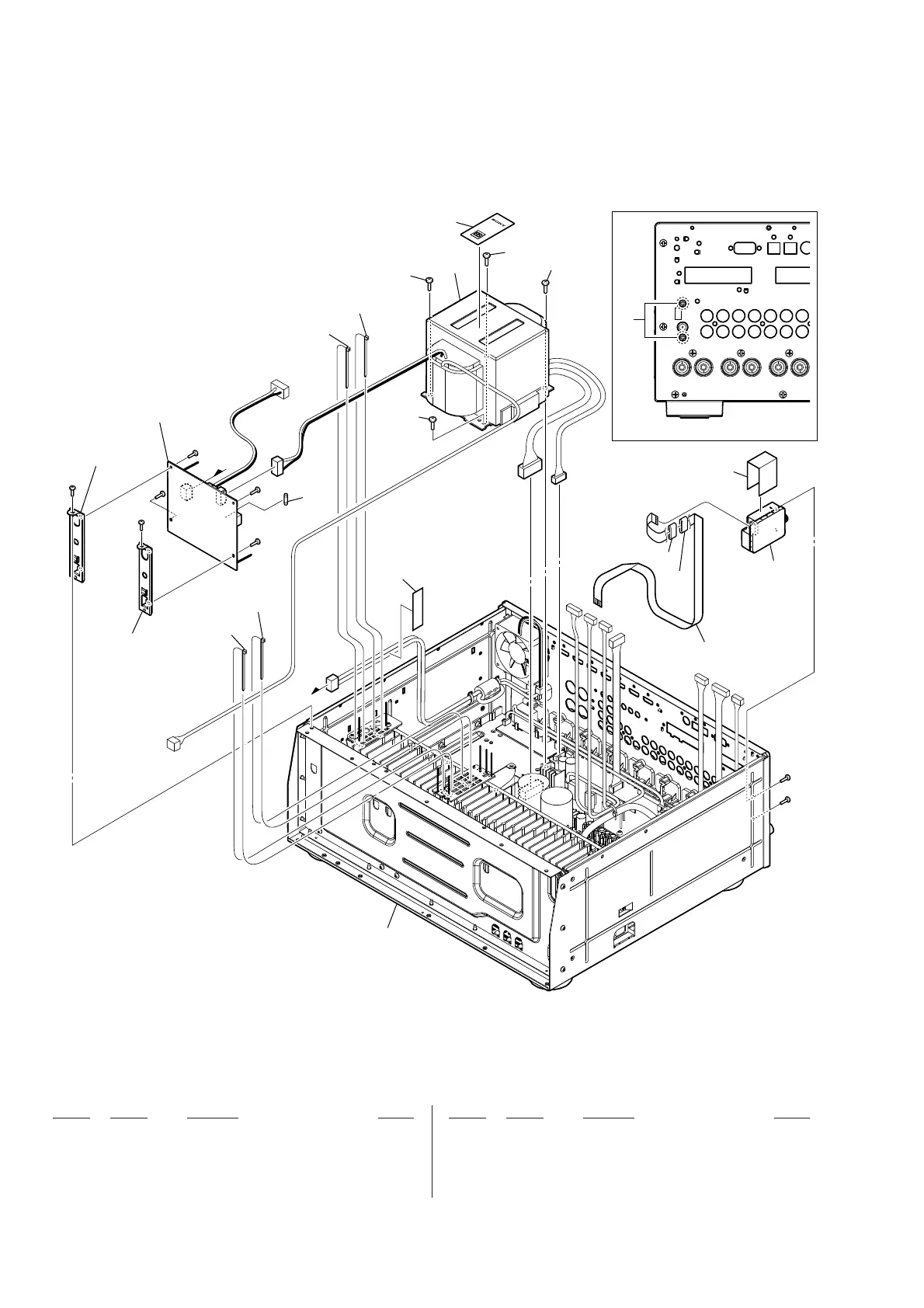

7-8. POWER TRANSFORMER SECTION
AMP board section
#1
#1
FC1
FFC5
FC2
TU1
T01
#1
#1
not supplied
not supplied
(STBY board)
not supplied
#1
#1
#1
F01
ea
not
supplied
#1
ea
351
351
351
352
351
#1
– Rear view –
not supplied
not supplied
not supplied
not supplied
not supplied
351 4-900-386-01 SCREW +BV SUMITITE S 4X8 ROUND
352 4-585-367-01 LABEL (PT
Z5)
0 F01 1-532-506-33 FUSE (T 6.3 AL/250 V)
FC1 1-500-981-11 CORE, FERRITE
FC2 1-500-981-11 CORE, FERRITE
FFC5 1-921-391-42 FFC 9P (250)
0 T01 1-697-493-11 POWER TRANSFORMER
TU1 A-1846-564-A TUNER1AMF ASSY (FM/AM TUNER UNIT)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
To Next Page
