STR-ZA5000ES
18

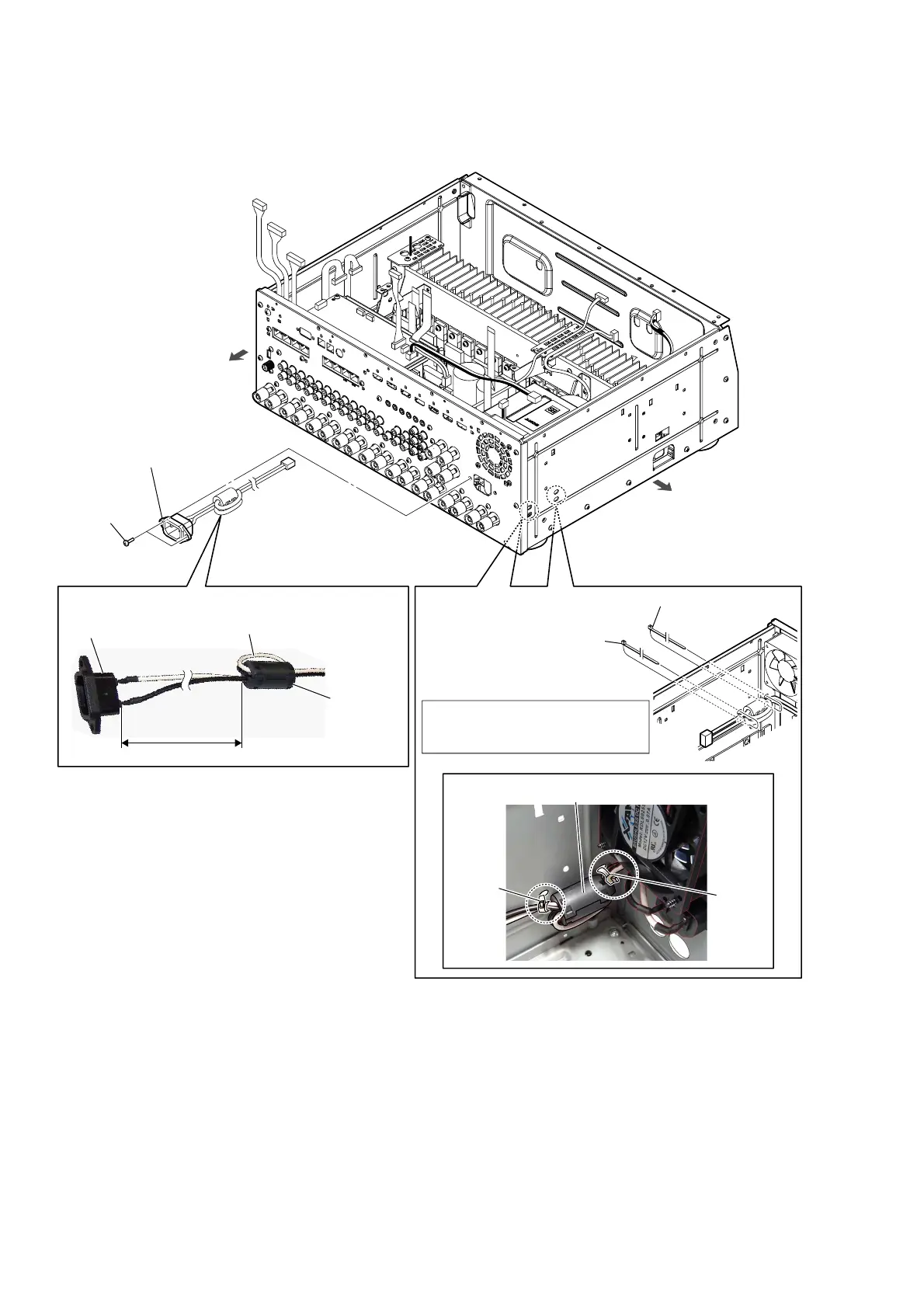

2-13. AC INLET (2P) BLOCK
3 AC inlet (2P) block
AC inlet (2P)
(AC1)
AC inlet wire two rounds.
1 Cut the cable tie.
1 Cut the cable tie.
cable tie
cable tie
2 two screws
(BVTP3 u 8)
:LUHVHWWLQJ
&ODPSILOWHUIHUULWHFRUH)&VHWWLQJ
100 mm
clamp filter (ferrite core) (FC3)
clamp filter
(ferrite core)
(FC3)
Note:
During reassembly, use new cable
ties to fasten the wires back in place
as they were before disassembly.
rear side
left side
–5HDUYLHZ–
