STR-ZA5000ES

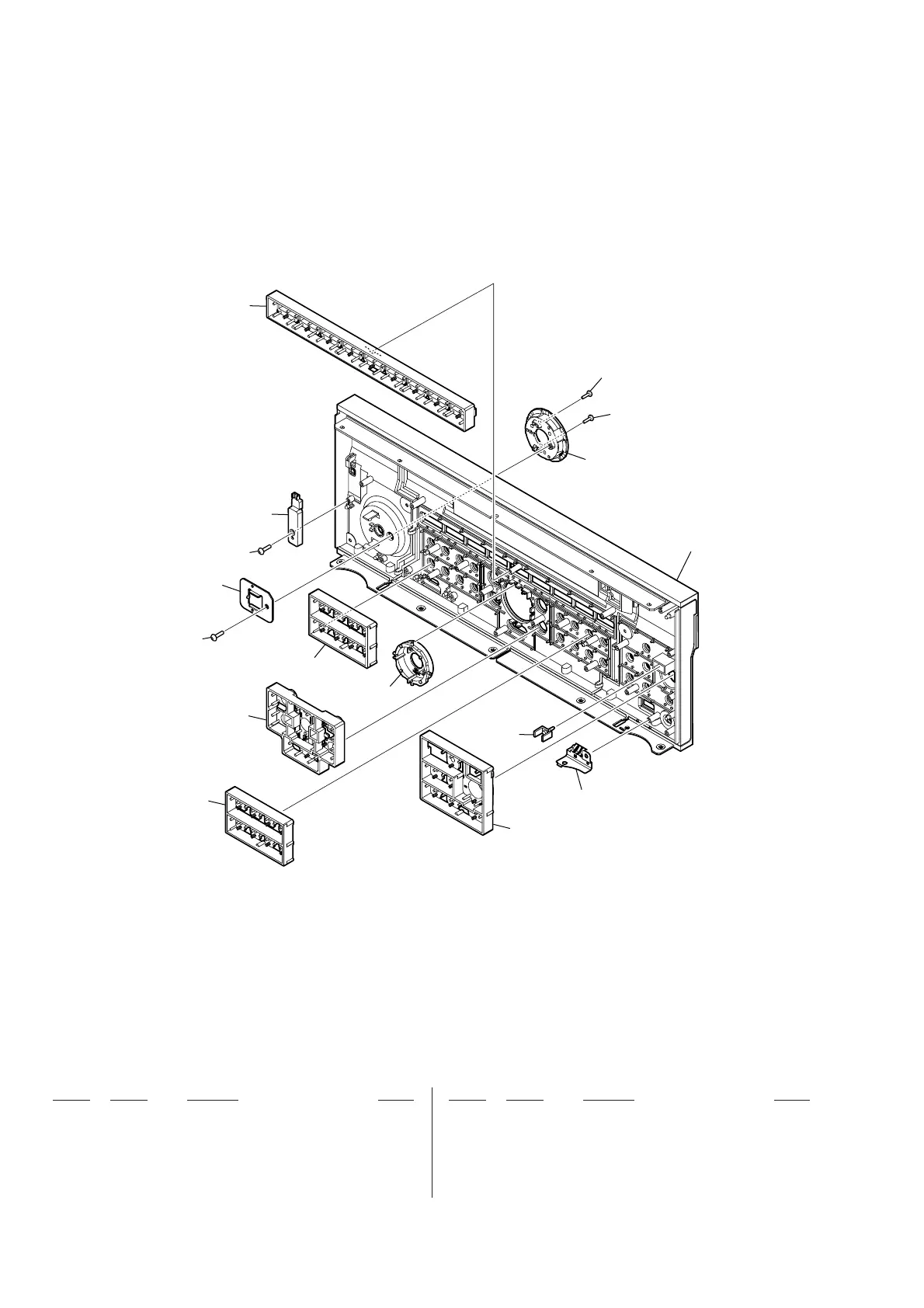

7-4. FRONT PANEL SECTION
• Rear view
not supplied
159
155
156
156
156
156
151
151
153
154
157
158
152
not supplied
not supplied
151 4-534-377-01 BUTTON, MODE
152 4-534-378-02 BUTTON, POWER
153 4-534-379-01 BUTTON, ENTER (DISPLAY, AMP MENU,
RETURN, OPTIONS, ENTER, HOME)
154 4-534-380-01 BUTTON, CURSOR (V, B, b, v)
155 4-534-381-01 INDICATOR, POWER
156 3-087-053-01 +BVTP2.6 (3CR)
157 4-544-973-01 COVER (HOLE)
158 4-534-376-01 BUTTON, FUNCTION (BD/DVD, SAT/CATV,
GAME, STB, VIDEO, AUX, TV, SA-CD/CD, TUNER)
159 A-2087-923-A PANEL ASSY (ZA5000) (SERVICE)
