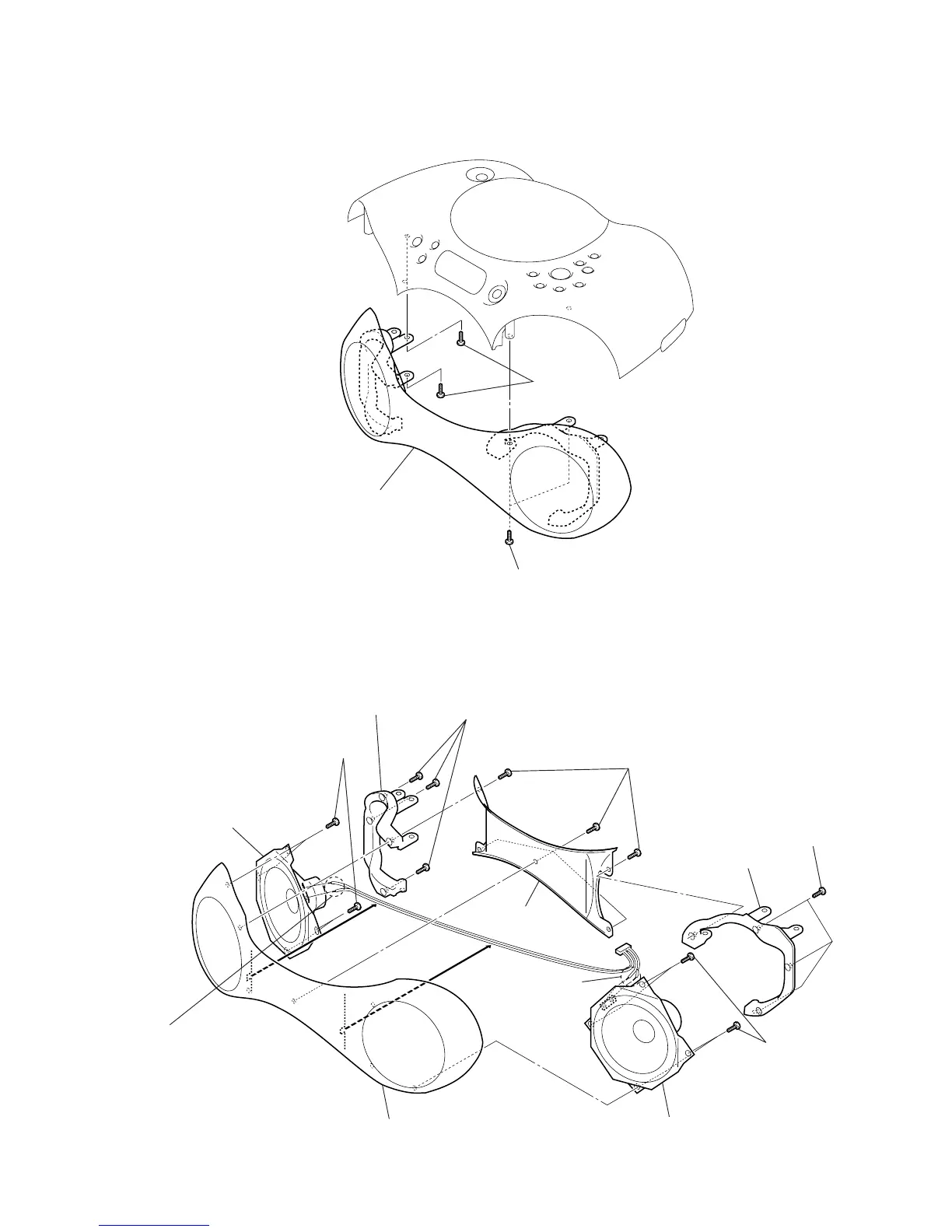

3-10. CABINET FRONT SECTION
3-11. SPEAKER (10cm) (L) (SP1), SPEAKER (10cm) (R) (SP2)
2 cabinet front section
1 two screws
(BVTP3
× 10)
1 two screws
(BVTP3
× 10)
0 Remove two solders.
5 Remove two solders.
qs speaker (10cm) (R)
(SP2)
7 speaker (10cm) (L) (SP1)
qd cabinet front sub assy
9 holder front (L)
4 holder front (R)
2 handle cover
qa four screws
(BVTP3
× 10)
6 four screws
(BVTP3
× 10)
8 three screws
(BVTP3
× 10)
3 three screws
(BVTP3
× 10)
1 five screws
(BVTP3
× 10)

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries
