39
ZS-X3CP

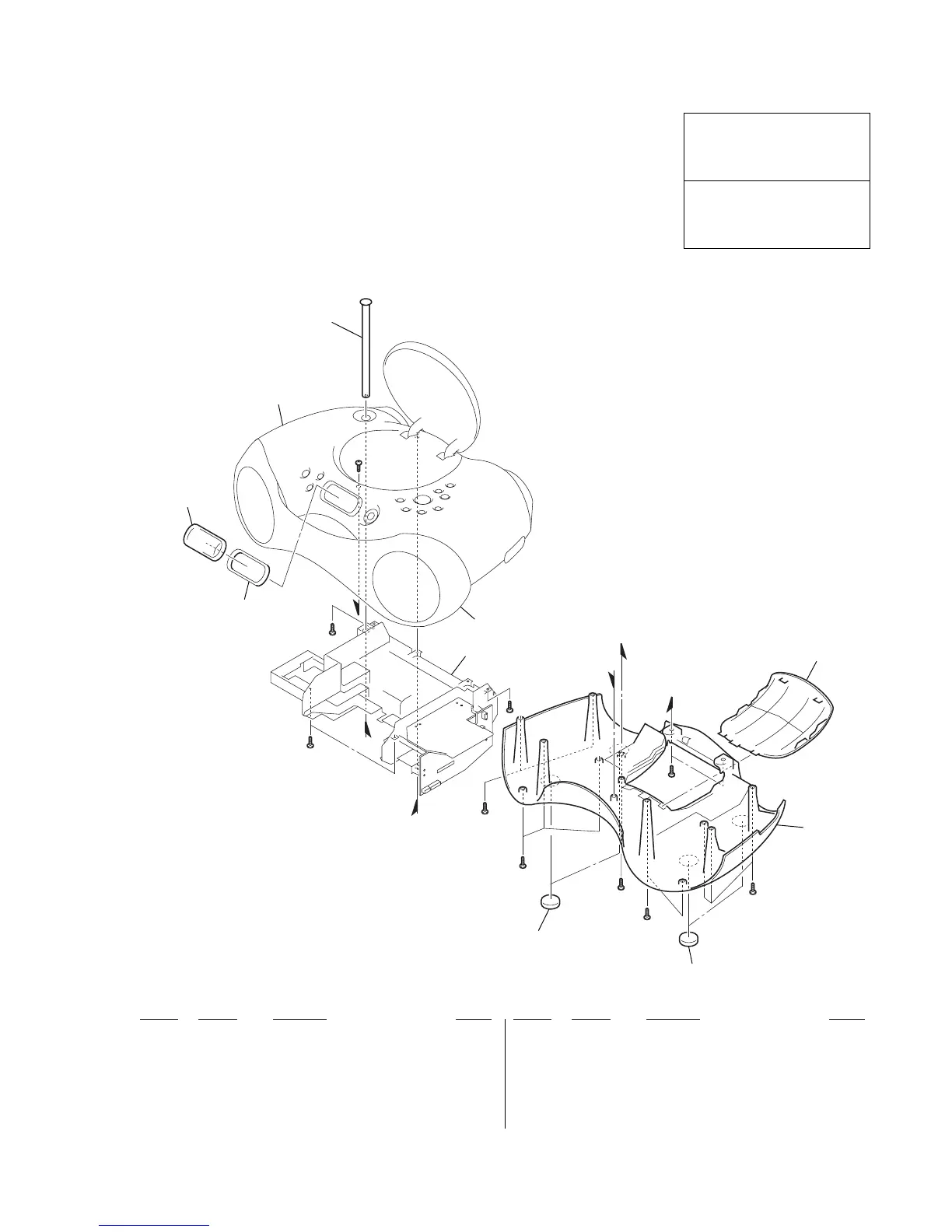

6-1. CABINET LOWER SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-236-245-01 TAPE (WINDOW), DOUBLE-FACE
2 3-236-085-01 WINDOW, LCD
3 3-236-080-01 LID, BATTERY CASE
4 3-236-076-01 CABINET (LOWER) (AEP, UK, IT, EE)
4 3-236-076-11 CABINET (LOWER) (US)
4 3-236-076-21 CABINET LOWER (CND)
5 3-236-229-01 FOOT (A), RUBBER
ANT1 1-754-226-12 ANTENNA, TELESCOPIC
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-649-14 SCREW +BVTP 3X14 TYPE2 N-S
#3 7-682-548-04 SCREW +B 3X8
ANT1
cabinet upper section
#2
#1
#1
#1
#2
#2
#2
#2
#3
#2
A
A
B
B
C
C
cabinet front section
main chassis section
3
4
5
1
2
5
Ver 1.2
• Abbreviation
CND : Canadian model
EE : East European model
IT : Italian model
