Sony ZS-X3CP User Manual

ZS-X3CP
2626
IC2
IC1
TUNER BOARD
1-680-952-
11
(11)
L4
AM OSC
L3
AM FERRITE-ROD
ANTENNA
L2
FM OSC
T2
FM IF
T1
AM IF
L1
FM RF
(SHIELD CASE)
TP
(VT)
TP
(GND)
TP
(ANT)
ANT1
FM TELESCOPIC
ANTENNA
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
CONTROL
BOARD
CN601
A

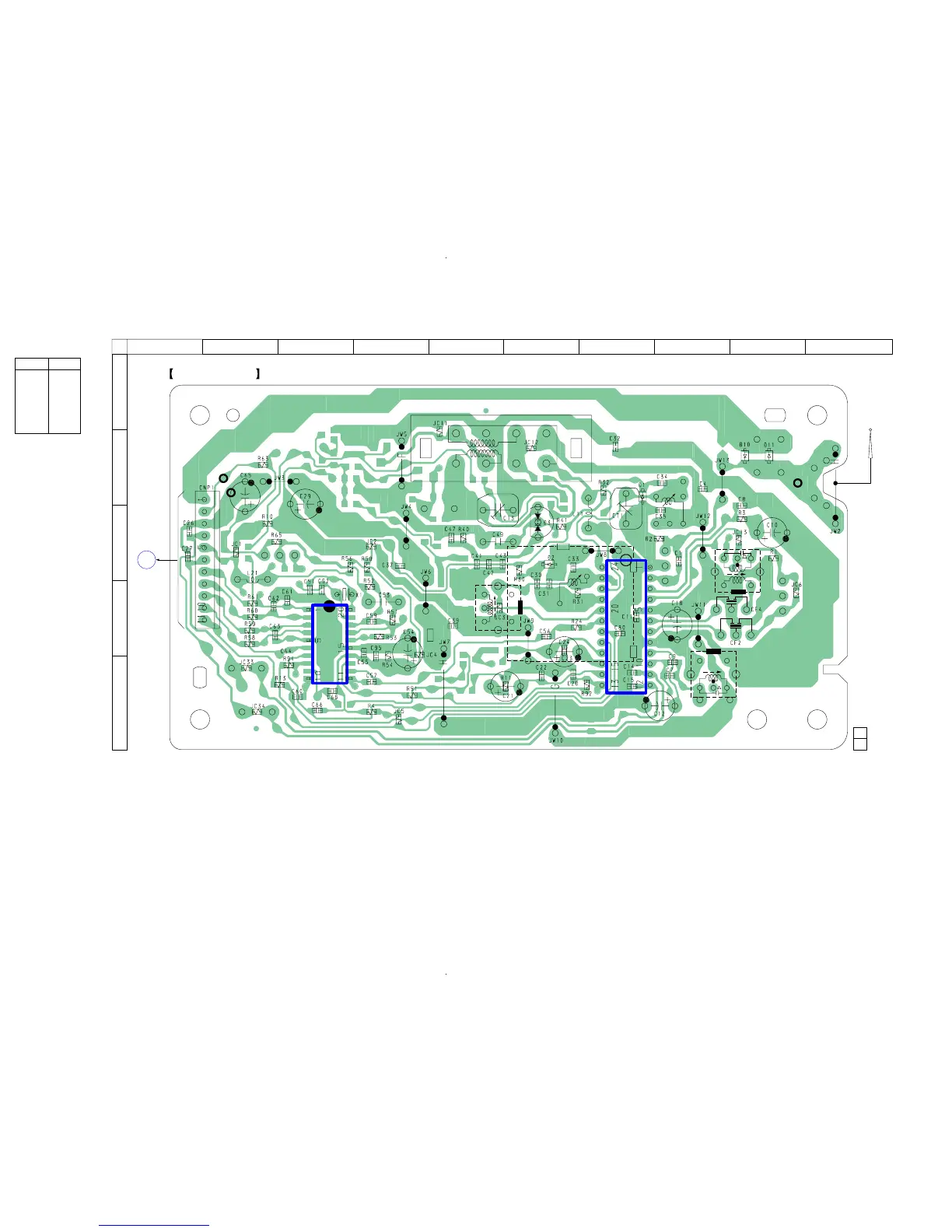

5-8. PRINTED WIRING BOARD – TUNER Section (US, Canadian Models) – • See page 21 for Circuit Boards Location.
(Page 30)
• Semiconductor
Location
Ref. No. Location
D1 B-7
D2 C-6
D3 C-6
D10 B-9
D11 B-9
IC1 D-7
IC2 D-3

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries
