Sony ZS-X3CP User Manual

41
ZS-X3CP

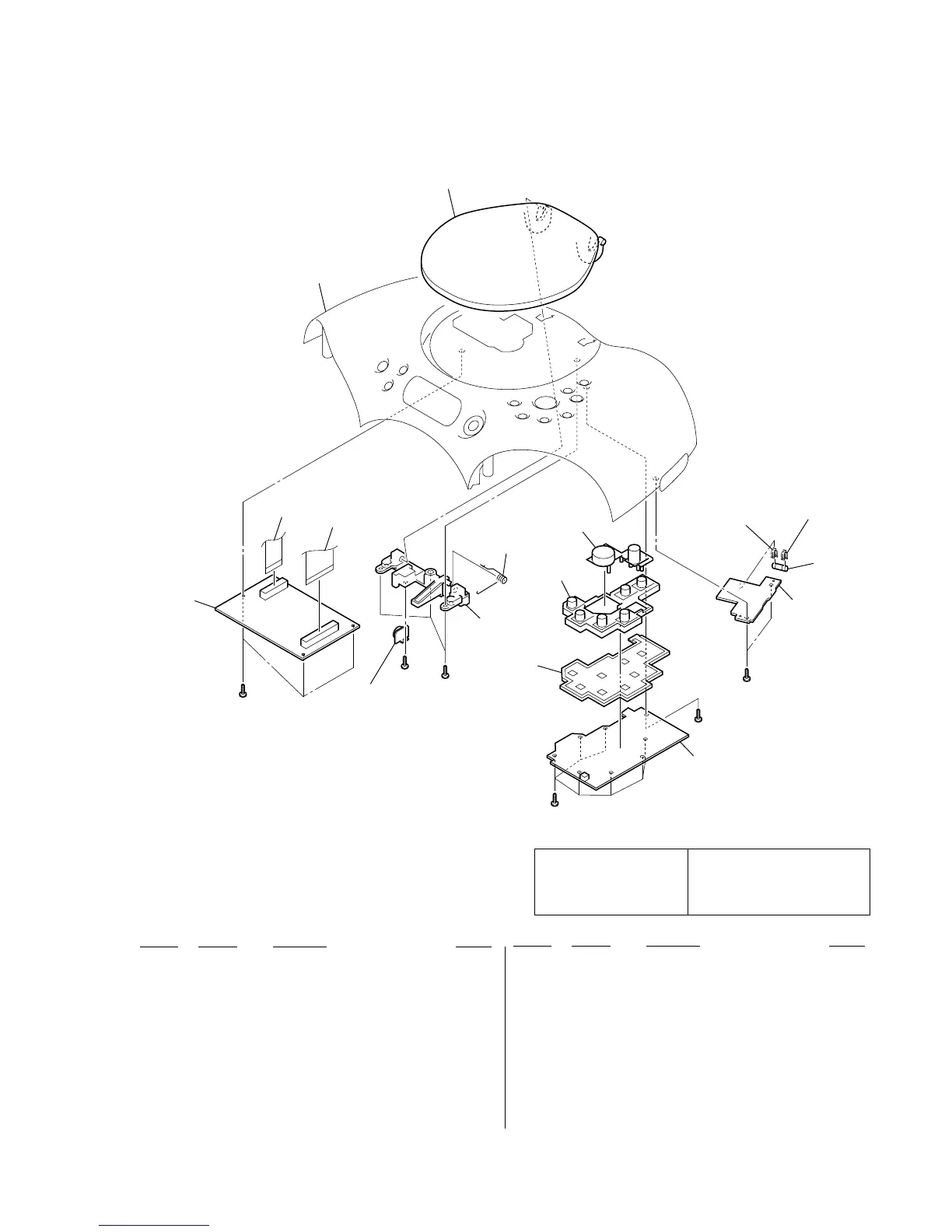

6-3. CABINET UPPER SECTION-1
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 101 A-3021-699-A CDMP3 BOARD, COMPLETE
102 1-777-843-11 WIRE (FLAT TYPE) (30 CORE)
103 1-769-326-11 WIRE (FLAT TYPE) (20 CORE)
104 3-236-079-01 LID, CD
* 105 1-683-740-11 JACK BOARD
106 3-236-090-01 BUTTON, VOLUME (u. x)
107 3-236-091-01 BUTTON, CD (+. –. MODE. REPEAT. ESP.
MEGABASS)
108 3-236-223-01 RUBBER, VOLUME
* 109 1-683-743-11 VOLUME BOARD
110 3-236-240-01 SPRING, CD
111 3-236-093-01 HOLDER, CD
112 3-049-782-31 DAMPER
0 F901 1-533-449-11 FUSE, GLASS TUBE (DIA. 5) (2A/125V)
(US, CND)
0 F901 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) (2A/250V)
(AEP, UK, IT, EE)
FH901 1-533-233-31 HOLDER, FUSE
FH902 1-533-233-31 HOLDER, FUSE
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#4 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
104
cabinet upper section-2
#4
#1
#1
#1
#1
#1
101
103
102
112
111
110
106
107
108
109
105
F901
FH902
FH901
Ver 1.2

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries
