ZS-X3CP

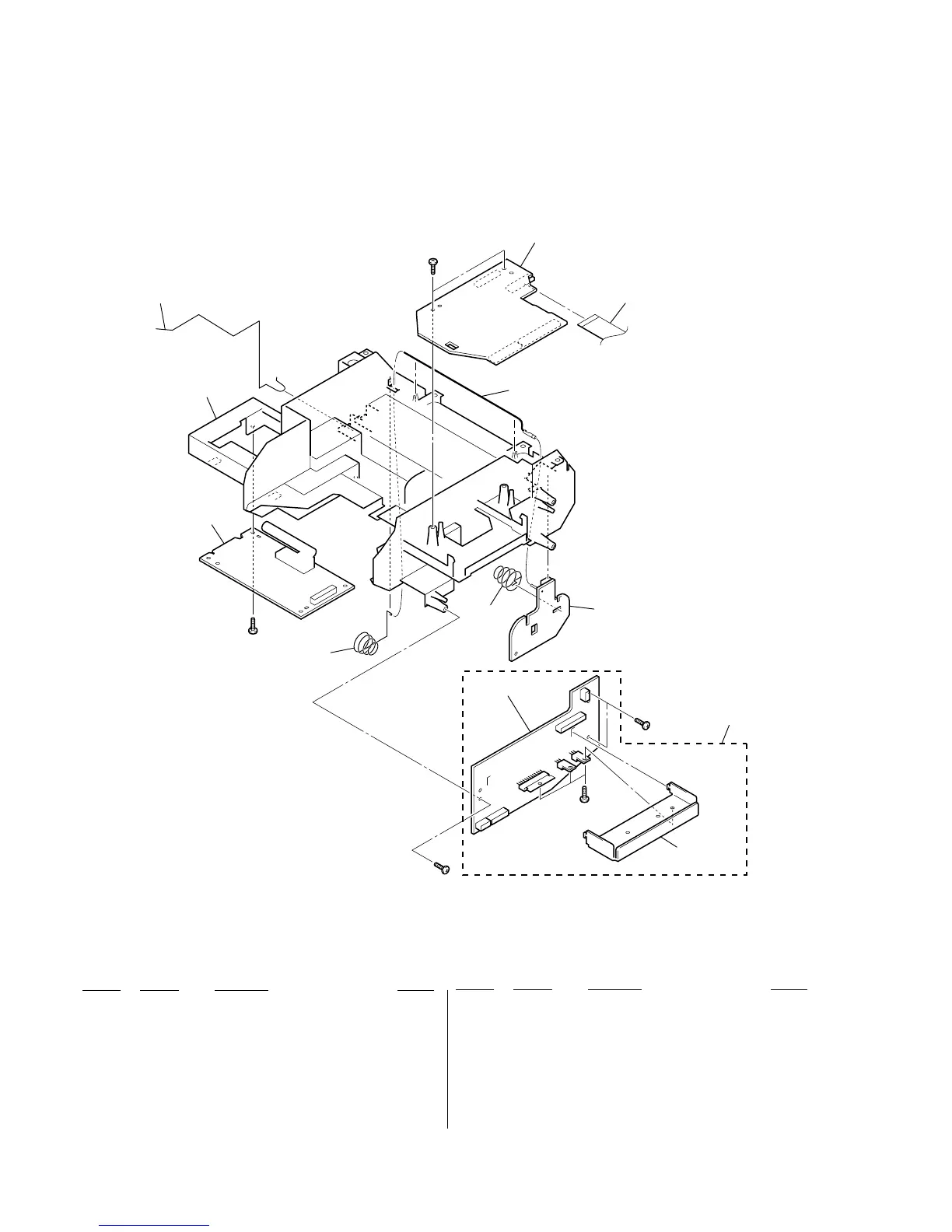

6-6. MAIN CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 3-236-242-01 SPRING (+ –), BATTERY
* 252 A-3021-425-A TUNER BOARD, COMPLETE (US, CND)
* 252 A-3021-475-A TUNER BOARD, COMPLETE (AEP, UK, IT, EE)
253 3-236-097-01 CHASSIS, MAIN
254 3-236-239-01 TERMINAL, ANTENNA
* 255 A-3178-118-A CONTROL BOARD, COMPLETE
(AEP, UK, IT, EE)
* 255 A-3178-119-A CONTROL BOARD, COMPLETE (US, CND)
256 1-773-070-11 WIRE (FLAT TYPE) (18 CORE)
* 257 1-683-742-11 BATTERY BOARD
258 3-028-154-01 TERMINAL (–), BATT
* 259 A-3021-701-A AUDIO BOARD, COMPLETE
260 3-236-238-01 HEAT SINK
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#6 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S
260
#1
#1
#1
#1
not supplied
#6
259
257
258
251
252
253
255
256
254
audio board
Ver 1.2

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries
