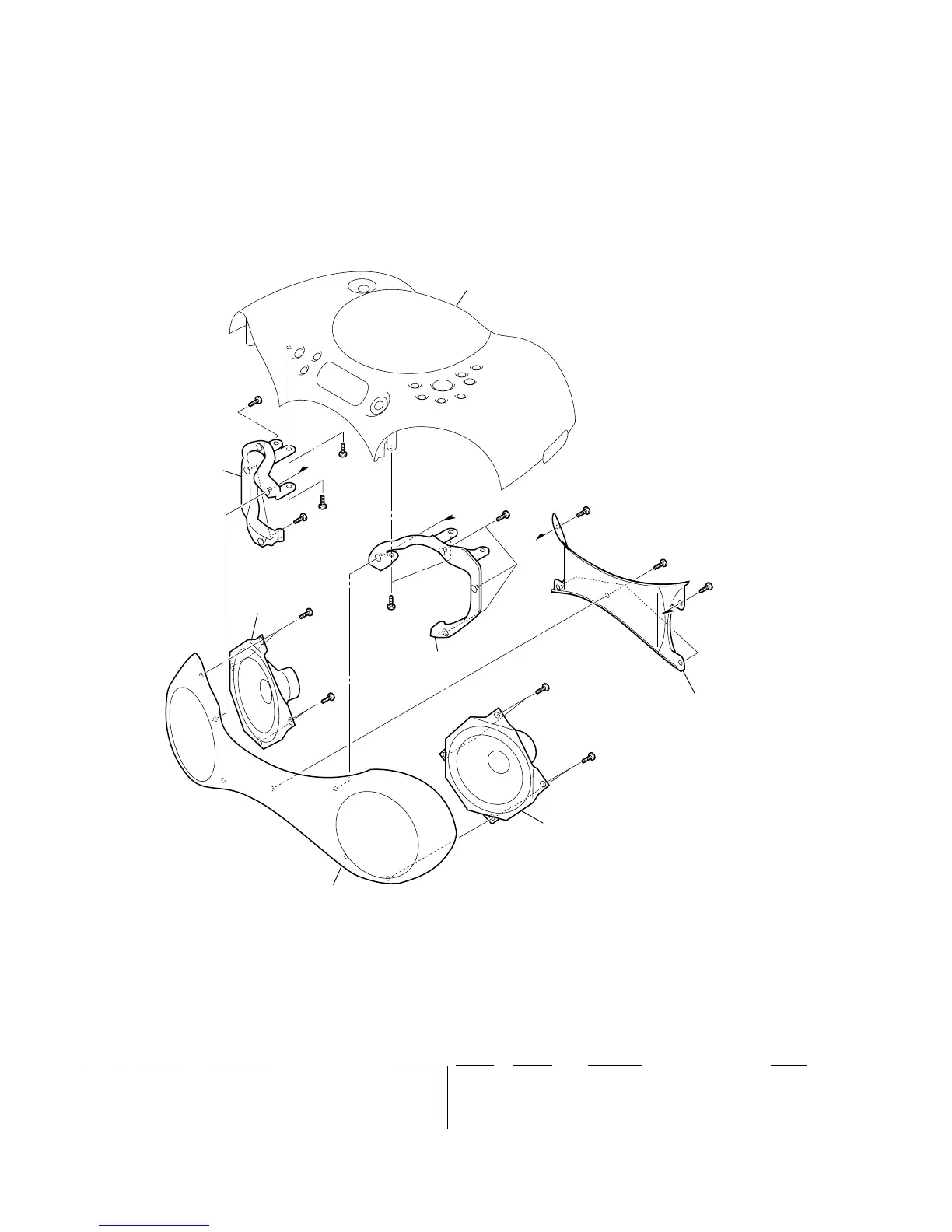

6-2. CABINET FRONT SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-3381-568-1 CABINET SUB ASSY, FRONT
52 3-236-094-01 HOLDER (LEFT), FRONT
53 3-236-095-01 HOLDER (RIGHT), FRONT
54 3-236-078-01 COVER, HANDLE
SP1 1-544-988-11 SREAKER (10cm) (L)
SP2 1-544-988-11 SREAKER (10cm) (R)
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
54
#1
SP1
#1
#1
#1
#1
#1
cabinet upper section-1
#1
#1
#1
#1
#1
#1
#1
E
D
D
E
53
52
51
SP2
Ver 1.2

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries
