Sony ZS-X3CP User Manual

ZS-X3CP
2323
IC704

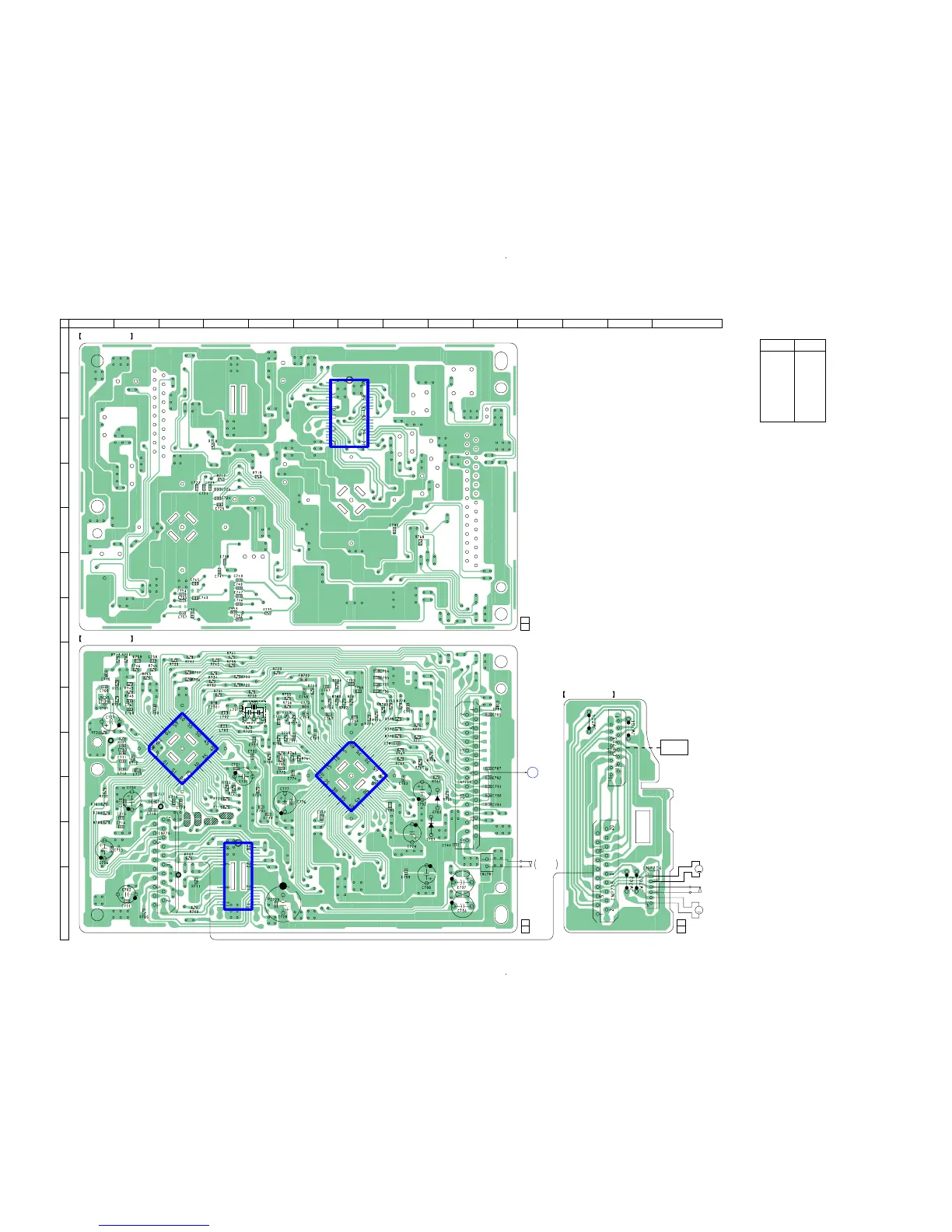

CDMP3 BOARD (COMPONENT SIDE)
1-683-737-
11
(11)
IC701
IC702
IC703
CDMP3 BOARD (CONDUCTOR SIDE)
1-683-737-
11
(11)
RELAY BOARD
1-683-741-
11
(11)
S702
(LIMIT)
M702
(SLED)
M
M701
(SPINDLE)
M
OPTICAL
PICK-UP BLOCK
(KSS-900A)
S701
CD LID
OPEN/CLOSE
B
CONTROL
BOARD
CNP802
TP
(RF)
TP
(TE)
TP (VC)
B
C
D
E
F
G
H
I
J
K
1
2 3 4 5 6 7 8 9 10 11 12 13
A
14
L
M
5-5. PRINTED WIRING BOARDS – CD Section – • See page 21 for Circuit Boards Location.
(Page 30)
• Semiconductor
Location
Ref. No. Location
D701 L-9
D702 K-9
IC701 J-3
IC702 M-4
IC703 J-7
IC704 B-7
Q701 I-1

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries
