Sony ZS-X3CP User Manual

42
ZS-X3CP

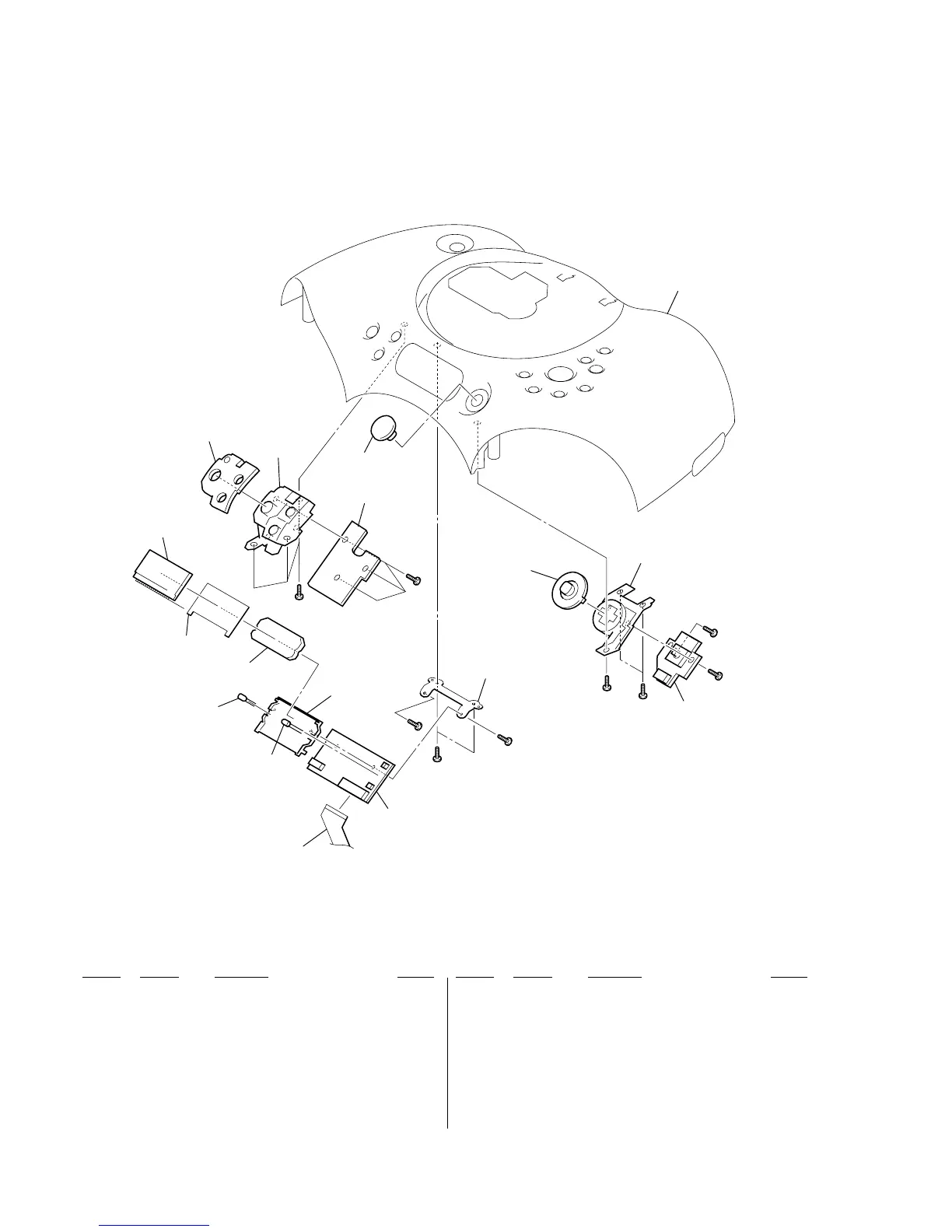

6-4. CABINET UPPER SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 3-241-095-01 BRACKET, LCD
* 152 1-683-745-11 LCD BOARD
153 1-773-160-11 WIRE (FLAT TYPE) (21 CORE)
154 3-236-092-01 HOLDER, LCD
155 3-236-086-01 PLATE, LIGHT GUIDE
156 3-236-241-01 ILLUMINATOR (LCD)
* 157 1-683-746-11 BUTTON POWER BOARD
158 3-236-082-01 BUTTON, POWER (DISPLAY. BAND. OPERATE)
159 3-236-224-01 RUBBER, POWER
160 3-236-083-01 BUTTON, ENTER
161 3-236-225-01 RUBBER, ENTER
162 3-236-081-01 HOLDER, ENTER
* 163 1-683-744-11 ENTER BOARD
D603 6-500-076-01 DIODE SLI-343YC (LCD BACKLIGHT)
D604 6-500-076-01 DIODE SLI-343YC (LCD BACKLIGHT)
LCD801 1-477-192-11 INDICATOR UNIT, LIQUID CRYSTAL
#4 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#5 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
161
151
152
153
154
155
156
159
158
157
160
162
163
#4
cabinet upper section-3
#4
#4
#4
#4
#4
#4
#5
#5
D603
D604
LCD801
Ver 1.2

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries
