Sony ZS-X3CP User Manual

3
ZS-X3CP
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
Notes on chip component replacement
•Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suit-
able. (See Fig. A)

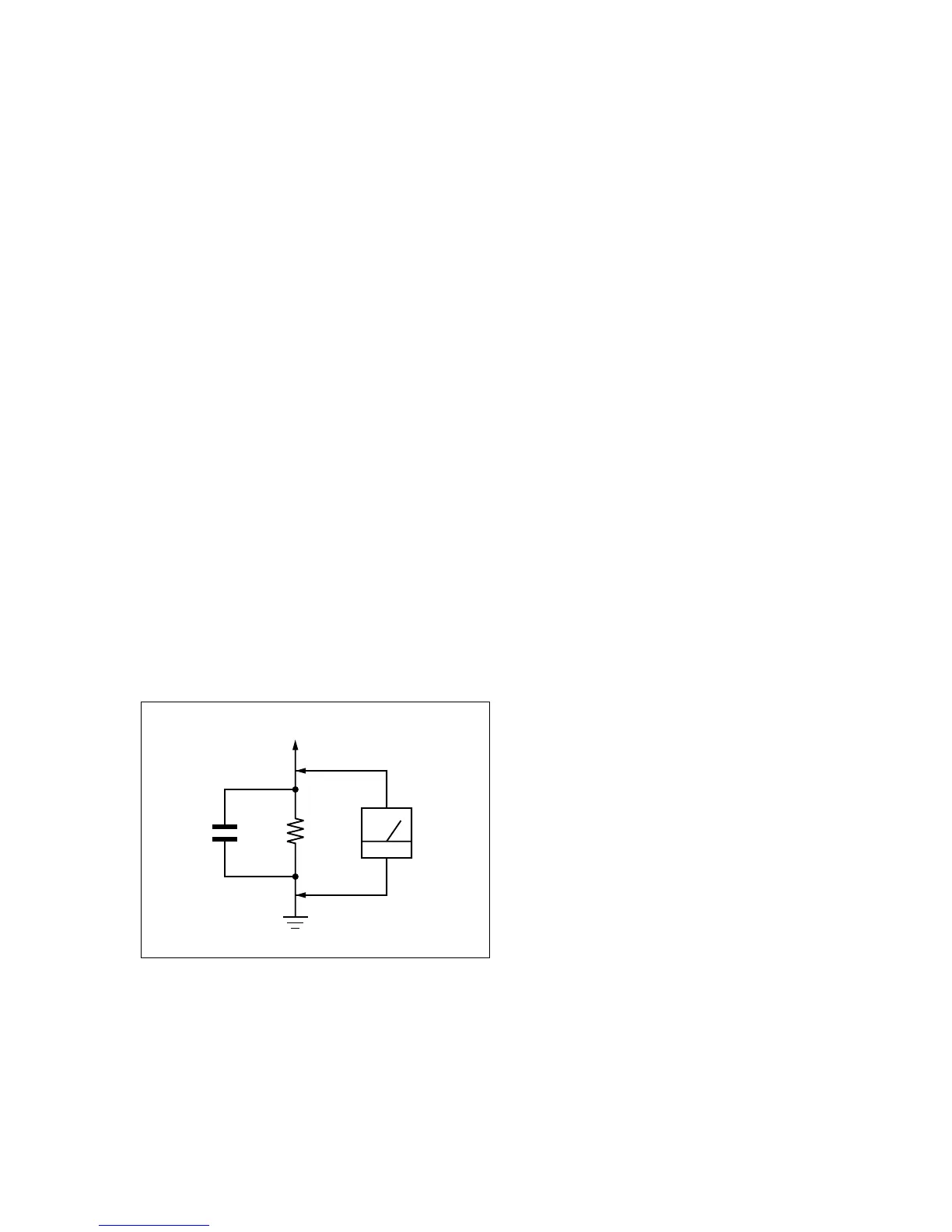

Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
About CD-Rs/CD-RWs and MP3 files
This player can play CD-Rs/CD-RWs recorded in the CD-
DA format* and MP3 files recorded in the CD-ROM
format, but playback capability may vary depending on the
quality of the disc and the condition of the recording
device.
* CD-DA is the abbreviation for Compact Disc Digital Audio. It is
a recording standard used for Audio CDs.

Sony ZS-X3CP Specifications

Audio Specifications

digital filter	8X Oversampling
digital to analog conversion	1 Bit
cd frequency response	20-20000Hz, +1, -2dB

Tuner Specifications

tuner frequency range AM	530-1710kHz
tuner frequency range FM	87.6-108MHz
antenna system AM	Built-in Ferrite Bar Antenna
antenna system FM	Telescopic Antenna

Speaker Specifications

speakers	4" (10cm) x 2
outputs	Headphone (stereo mini jack)

Power

power requirements batteries	“D” x 6 Batteries (optional)
power requirements AC	AC 120V, 60Hz
inputs	DC In

Weight and Dimensions

dimensions	16 [7]⁄8" x 6 [3]⁄4" x 11 [1]⁄4" (430 x 172 x 287.5mm)
weight	8 lbs 8 [2]⁄3 oz (3.8kg) w/batteries

Summary

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

Describes audio output power and distortion.

Other Specifications

Details on CD player and radio sections.

General Specifications

Covers speaker, outputs, power requirements, and dimensions.

IMPORTANT SAFETY INFORMATION

Repair Precautions

Notes on handling components and circuit boards during repair.

Safety Leakage Test

Procedure to check for AC leakage from exposed metal parts.

MP3 and Media Compatibility

Information on playable CD formats and MP3 files.

SERVICING NOTES

Optical Pick-up Handling

Precautions for handling the optical pick-up block to prevent damage.

Laser Diode Emission Check

Procedure for checking laser diode emission and focus search.

GENERAL OPERATIONS

Playing CDs (Audio & MP3)

Instructions for playing audio CDs and MP3 files.

Listening to the Radio

Instructions for tuning and listening to radio stations.

DISASSEMBLY PROCEDURES

Disassembly Flow Chart

Visual guide to the sequence of disassembly steps.

Cabinet and Antenna Removal

Steps to remove the lower cabinet and telescopic antenna.

Tuner and Control Board Removal

Steps for removing the tuner and control boards.

CDMP3 Board Removal

Steps to remove the CDMP3 board.

Optical Pick-up Section Removal

Steps to remove the optical pick-up section.

Sled Motor Assembly Removal

Steps to remove the sled motor assembly.

Optical Pick-up (KSS-900A) Removal

Steps to remove the optical pick-up unit.

Front Cabinet Section Removal

Steps to remove the front cabinet section.

Speaker Removal

Steps to remove the left and right speakers.

CD Lid Removal

Steps to remove the CD lid.

ELECTRICAL ADJUSTMENTS

Tuner Section Adjustments

Procedures for AM/MW/LW and FM tuner adjustments.

Adjustment Locations

Diagrams showing the location of adjustment points on tuner boards.

CD SECTION TESTING

CD Test Mode Entry

Procedure to enter CD test mode for diagnostics.

Focus Bias and Traverse Checks

Procedures for checking focus bias and traverse operations.

SCHEMATICS AND DIAGRAMS

CD Section Block Diagram

Block diagram illustrating the CD section's signal flow.

Tuner Section Block Diagram

Block diagram illustrating the tuner section's signal flow.

Main Section Block Diagram

Block diagram illustrating the main control and power sections.

Schematic and PCB Notes

Notes on interpreting schematics and printed wiring boards.

Circuit Board Locations

Diagrams indicating the physical location of circuit boards.

Waveform Examples

Oscilloscope waveform examples for various ICs in the CD section.

CD Section Printed Wiring Boards

Component and conductor side views of CD section PCBs.

CD Section Schematic (Part 1)

Detailed schematic for the CD section (first half).

CD Section Schematic (Part 2)

Detailed schematic for the CD section (second half).

Tuner Section PCB (US/Canadian)

Printed wiring board layout for the tuner section (US/Canadian models).

Tuner Section Schematic (US/Canadian)

Schematic diagram for the tuner section (US/Canadian models).

Tuner Section PCB (Other Models)

Printed wiring board layout for tuner section (non-US/Canadian models).

Tuner Section Schematic (Other Models)

Schematic diagram for tuner section (non-US/Canadian models).

Control Section Printed Wiring Boards

Printed wiring board layouts for control, LCD, button, and enter boards.

Control Section Schematic

Schematic diagram for the control section, including connections to other boards.

Audio/Power Section PCBs

Printed wiring board layouts for audio, jack, and battery boards.

Audio/Power Section Schematic

Schematic diagram for the audio/power section, including jack and battery boards.

IC Block Diagrams

Block diagrams for key ICs in the CDMP3 and Tuner sections.

IC Pin Function Descriptions

Detailed pin function descriptions for IC703 (MP3 Decoder).

EXPLODED VIEWS

Cabinet Lower Section

Exploded view and parts list for the lower cabinet assembly.

Cabinet Front Section

Exploded view and parts list for the front cabinet assembly.

Upper Cabinet Section-1

Exploded view and parts list for the upper cabinet assembly (part 1).

Upper Cabinet Section-2

Exploded view and parts list for the upper cabinet assembly (part 2).

Upper Cabinet Section-3

Exploded view and parts list for the upper cabinet assembly (part 3).

Main Chassis Section

Exploded view and parts list for the main chassis.

Optical Pick-up Section

Exploded view and parts list for the optical pick-up unit.

ELECTRICAL PARTS LIST

Audio Board Parts

Detailed list of electrical components for the audio board.

Battery, Button Power, and CDMP3 Board Parts

Component lists for battery, button power, and CDMP3 boards.

CDMP3 Board Components

Detailed component listings for the CDMP3 board.

Control Board Components

Detailed component listings for the control board.

Control, Enter, Jack, and LCD Board Parts

Component lists for control, enter, jack, and LCD boards.

Relay and Tuner Board Parts

Component lists for relay and tuner boards.

Tuner Board Components

Detailed component listings for the tuner board.

Tuner, Volume, and Miscellaneous Parts

Component lists for tuner, volume, miscellaneous items, and accessories.
