Workshop Manual
PARK 120 - PARK 220
Chapter
1 General instructions
Page
14
1.6 Technical data
For all the Technical Date, see the “INSTRUCTION MANUAL”.

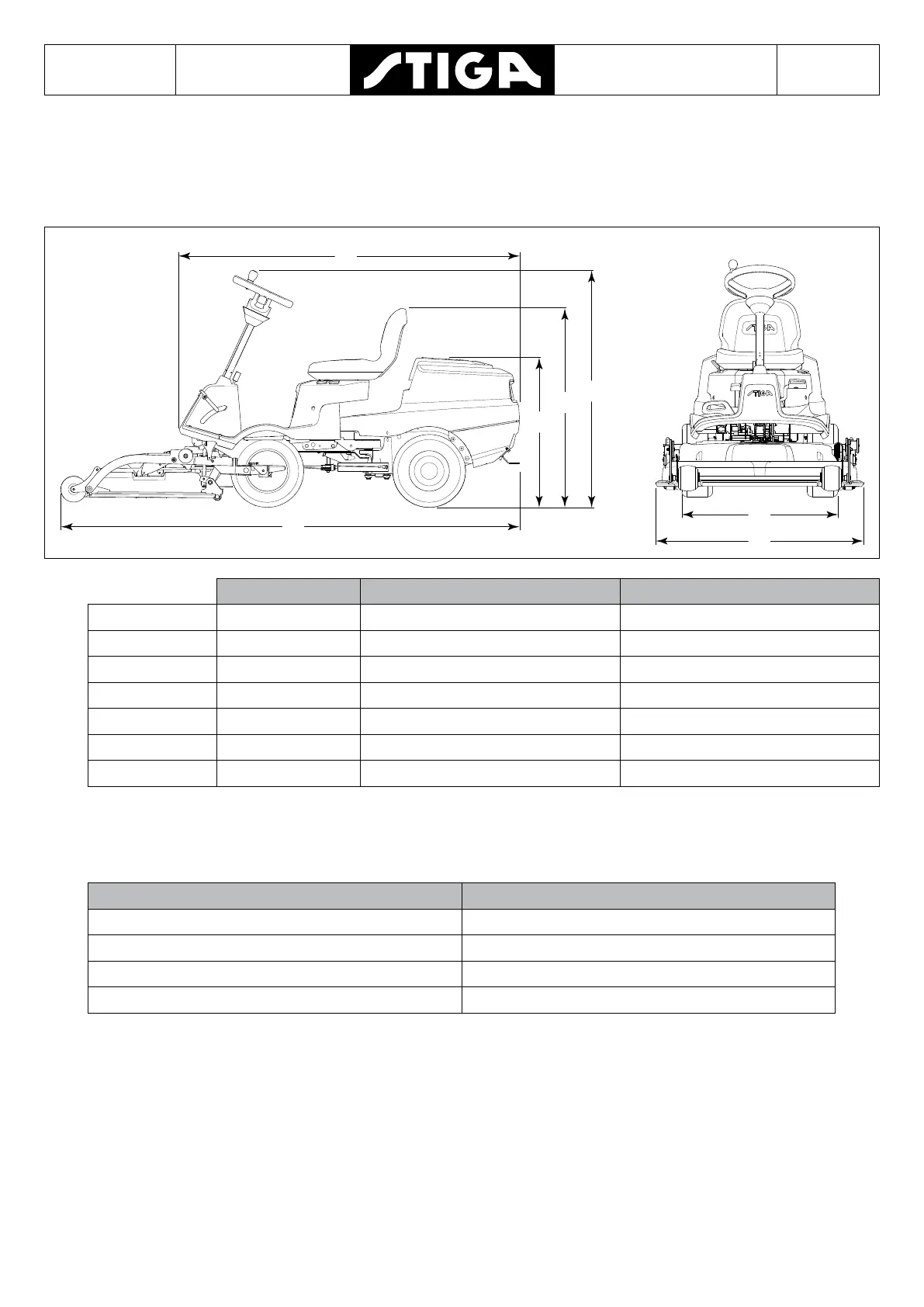

1.6.1 Machine dimensions
B
A
A1
E1
E
C
D
U.M DECK 85 DECK 95
A mm 1681 1681
A1 mm 2252 2279
B mm 1171 1171
C mm 984 984
D mm 741 741
E mm 770 770
E1 mm 991 1023
1.6.2 General tightening torques
Tightening torques for screws and nuts unless otherwise specied:
Thread Torque
M5 6 Nm
M6 10 Nm
M8 24 Nm
M10 47 Nm
1.7 User guide
Certain procedures, for example how to change the engine oil, replace lters, etc. refer to
the instruction manuals supplied with the machine.
The instructions for use are available on the GGP Parts & Service website.
For further information go to STIGA website:
http://www.stiga.com.
