Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
5 Belts
Page
40

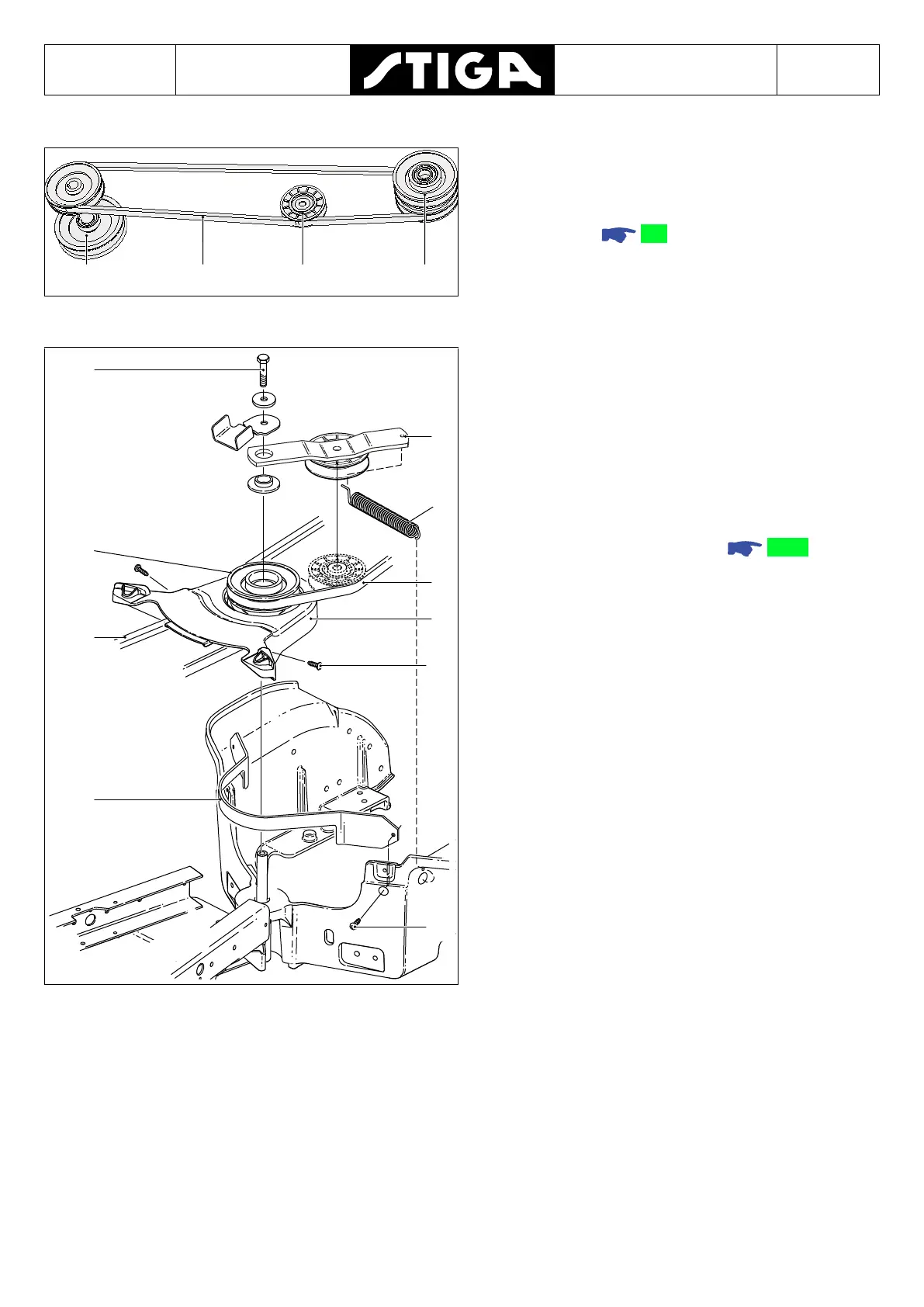

5.2.4 Operating equipment belt (B).
54B3
For greater understanding on how the belts are
positioned, see
5.2.
Disassembly
1. Remove the engine casing 2.1.1
2. Remove the spring (13) on the tensioning arm
which is dedicated to the equipment clutch belt
(C).
3. Unscrew the central top bolt (14) and move
the tensioning arm (18) sideways.
4. Remove the upper belt casing (19), two
screws.
5. Slip the belt (C) off the double pulley (5) from
the central point.
6. Remove the bottom belt casing (12), two
screws.
