Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
8 Mower Decks
Page
73

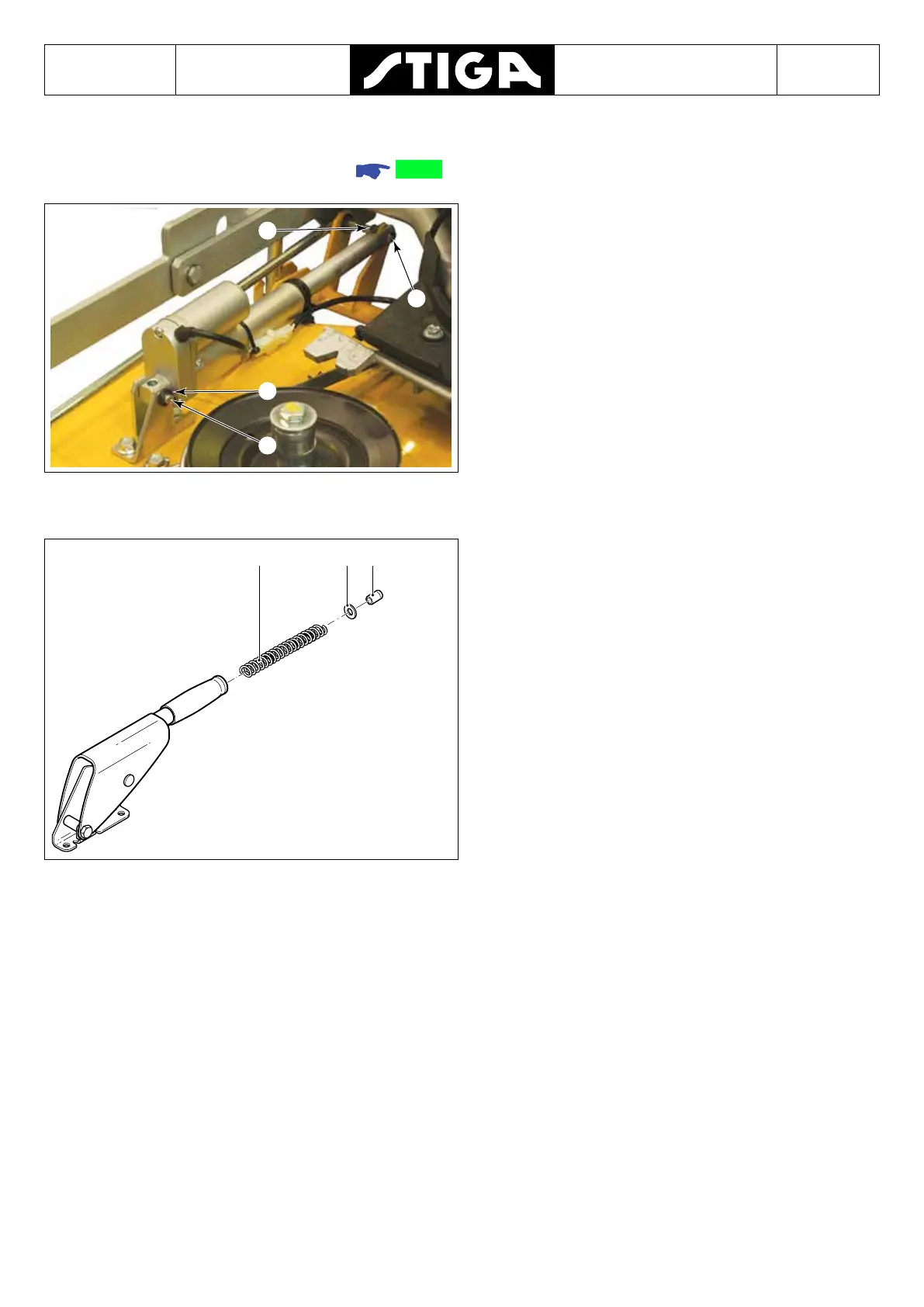

8.6 Replacement of the cylinder / engine lifting
Remove the cutting deck guard. 8.3.1.
A
A
B
B
1. Disconnect the plug from the socket on the
machine.
2. Remove the shaft-stop washers (A).
3. Extract the pins (B) and remove the drive unit.
To reassemble the various parts, repeat the
operations in reverse order.
8.7 Replacement of the spring of the lift lever manual
C
B
A
1. Move the lever to the low position.
2. Unscrew the knob (A).
3. Extract the washer (B) and the spring (C).
4. Replace the spring and reassemble all the
components in reverse order.
