Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
2 Frame and Covers
Page
16
2.1 Disassembly/assembly of covers

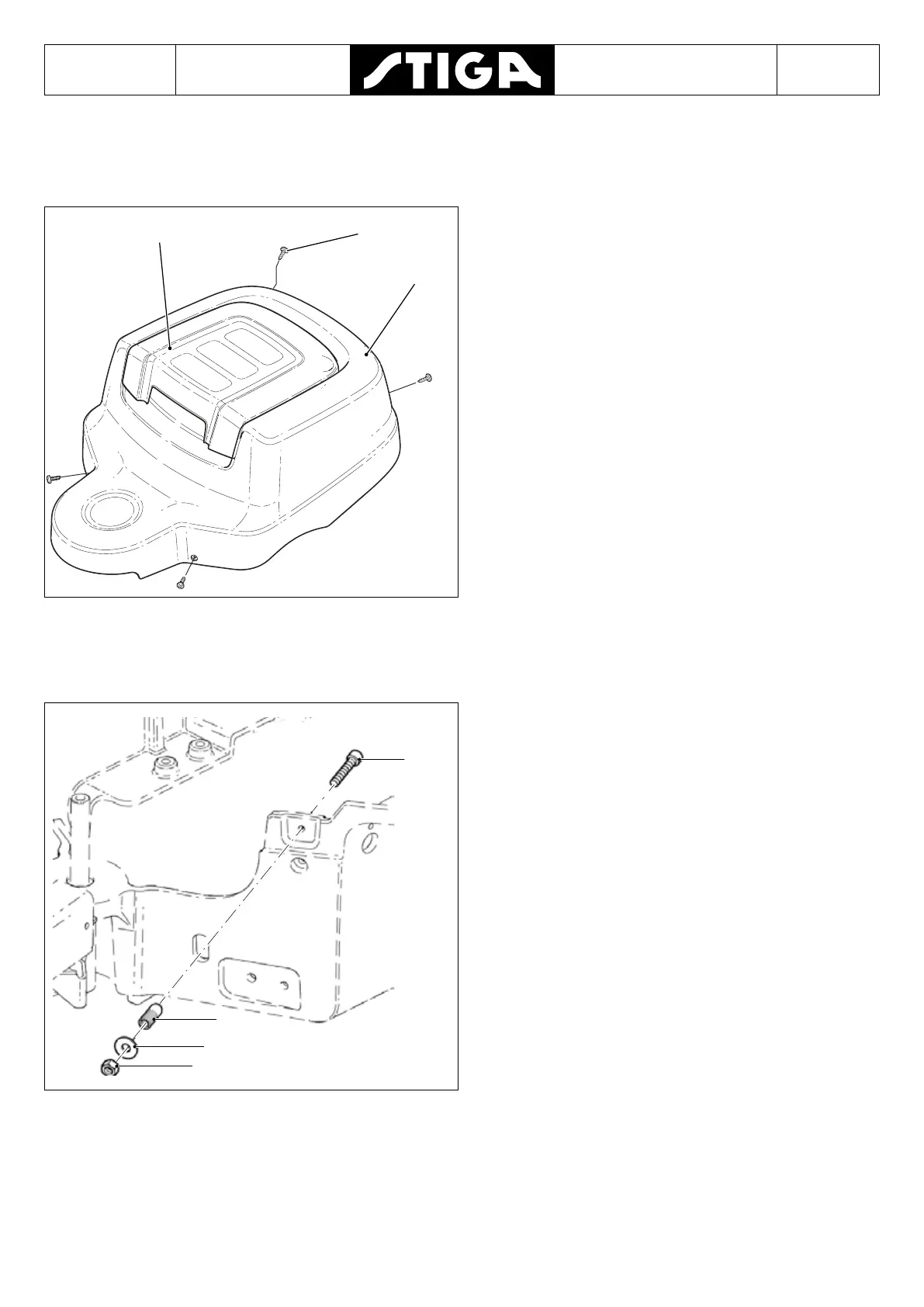

2.1.1 Removing the engine cover
A (4x)
B
C
1. Unscrew the four screws (A) holding the cover,
use torx T30.
2. Open the cover.
3. Take the cap off the petrol tank.
4. Reclose the cover.
5. Remove the cover.
6. Replace the cap on the petrol tank.
To reassemble the various parts, repeat the
operations in reverse order.
2.1.2 Fitting new screw mounts to the engine cover
New screw mounts can be mounted on the rear frame if the previous screw mounts are
faulty.
B
A
C
Remove the faulty screw mount as follows:
1. Use a 8.5 mm drill. Drill down to the thread
from the outside.
2. Pull out the screw mount from the inside with
pliers.
Install new as follows:
1. Install the rivet (A) from the outside, with the
ange outward.
2. Assemble screw (B) is screwed through the
rivet, from within.
3. Put on the washer (C) and the nut (D), from
the outside.
4. Hold the screw and tighten the nut so the rivet
expands and locks into the rear frame. The
rivet should not rotate!
5. Remove the assembly screw and mount cover
with regular screws.
