Workshop Manual
PARK 120 - PARK 220
Chapter
3 Steering wheel
Page
27
3.1.4 Replacing the bushes on the steering shaft
B
A
B
B
C
D
D

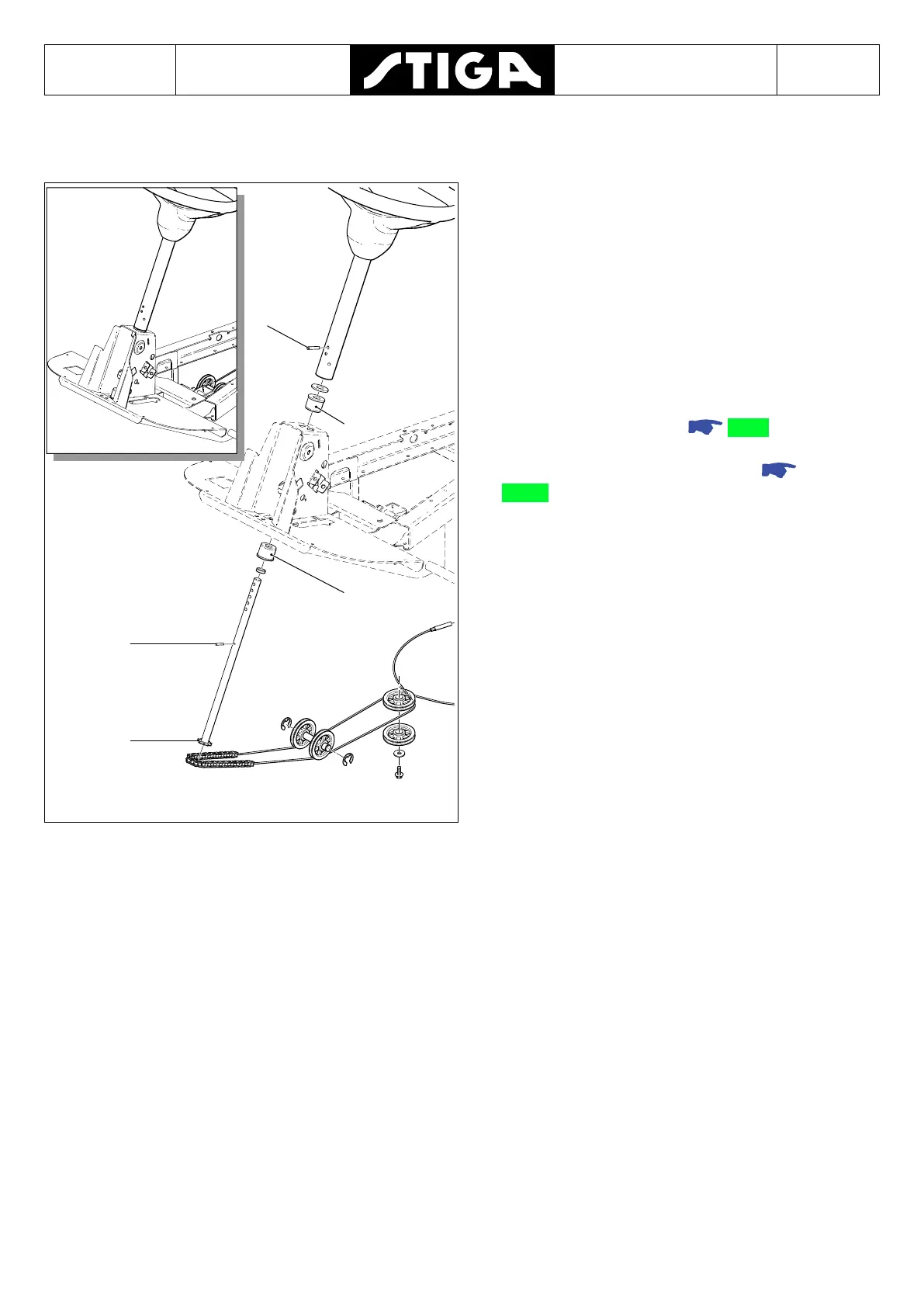

1. Remove the steering wheel: remove the pin
(A).
2. Remove the steering chain and cables.
For further details see
3.1.1
3. Remove the front covers;
For the relative description, see
2.1.3.
4. Remove the pin (B).
5. Take hold of the gearwheel (C) on the bottom
of the steering shaft and remove it.
6. Remove the damaged bushes (D).
Follow the instructions in reverse order to
reassemble.
