Workshop Manual
PARK 120 - PARK 220
Chapter
2 Frame and Covers
Page
21
2.2 Replacing the link arm

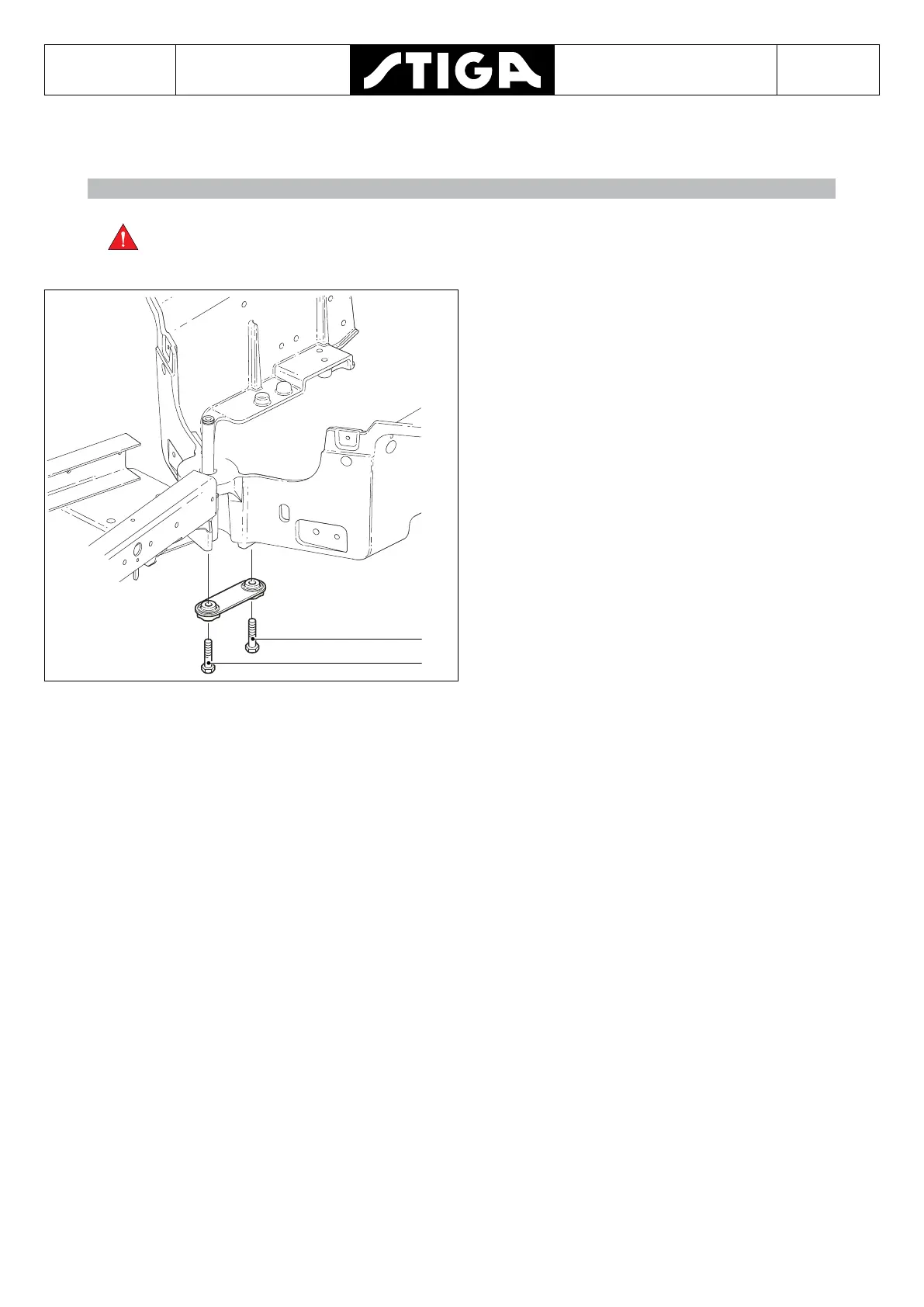

Remove the link arm, as follows:
Warning!
Support the machine safely, on the rear side of the frame and on the front frame
near the arm, to ensure it does not roll over. Keep it lifted using a jack or wooden
planks.
B
1. Unscrew the bolt (A-17 mm wrench.
2. Unscrew the bolt (B-17 mm wrench).
3. Replace the link arm and then mount it together
in reverse order.
4. If it is difcult to t bolt (A) during assembly, lift
up the front frame for an easier mounting of
the bolt.
