7.4.5 Connections
All connections must be kept clean of dirt, rust and moisture.
Use a small screwdriver to remove a at pin connector from the plastic holder.
Press in the screwdriver behind the connection, hold the cable and pull out the cable with
the connection. To reuse reset the catch to its previous position.
Crimping pliers can be used to restore a at pin connector, when it has been exposed to
long term wear and tear. Other types of connectors may require special tools for removal.
Warning!
No metal from the cable may be visible outside the screw connection.
Too long stripped cables can cause short-circuits or res.
7.4.6 Removing the battery
Remove the battery as follows:
Attention!
When removing the battery always start by removing the negative cable before
the positive cable.
During assembly, always start by assemble the negative cable before positive
cable.
PARK 120
Remove the engine casing; for further details see
2.1.1
Warning!
Empty the tank of any residual fuel.
A
B

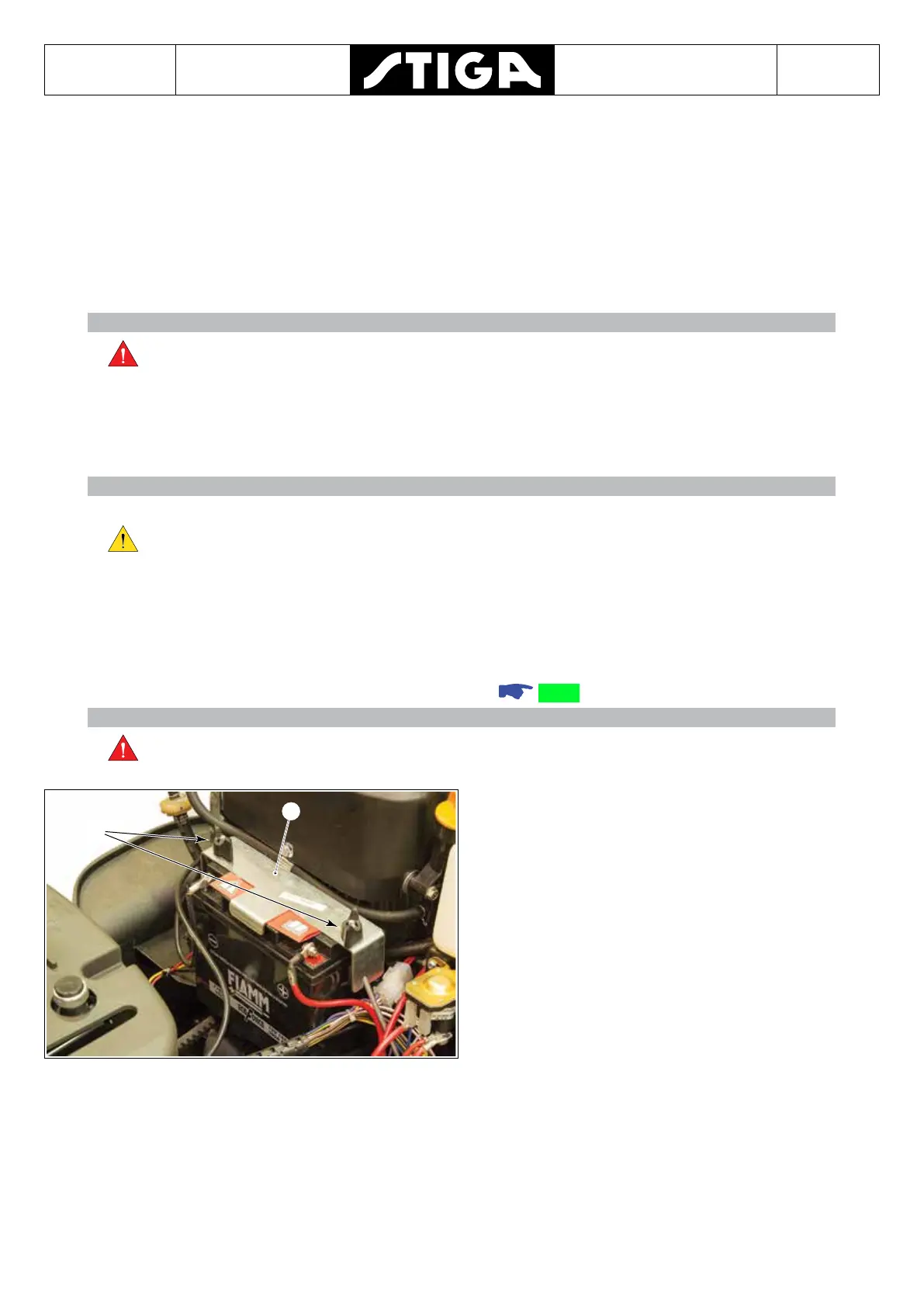

1. Disconnect the (+) and (-) poles of the
battery.
2. Unscrew the two wing nuts (A).
3. Remove the stopper (B).
4. Remove the battery.
To reassemble the various parts, repeat the operations in reverse order.
