Workshop Manual
PARK 120 - PARK 220
Chapter
6 Control cables
Page
47

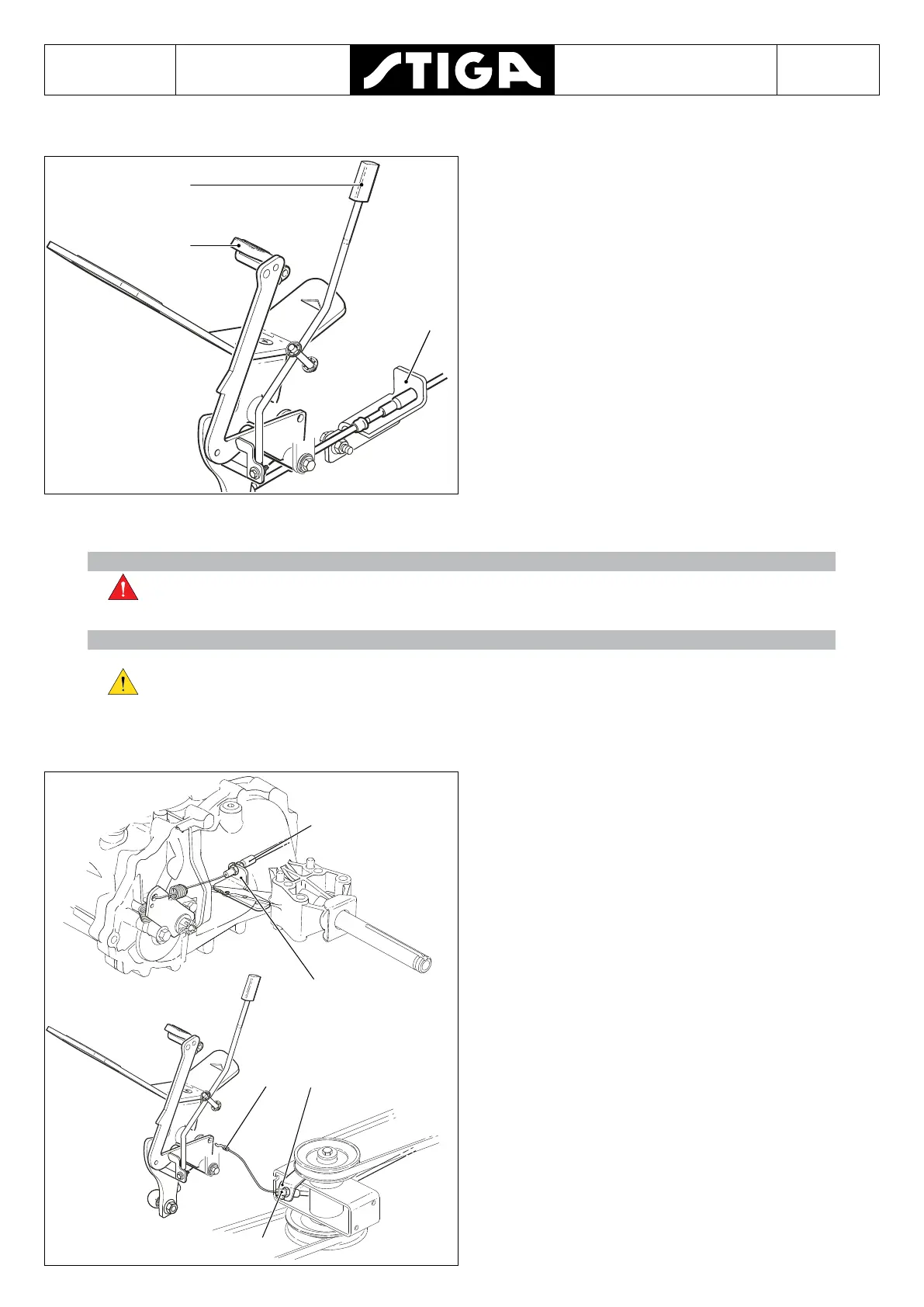

6.3.3 Adjustment
A
C
B
1. Block the parking brake by moving the lever
(A) to the left once the parking brake (B) has
been engaged.
2. Then adjust the bracket (C) forward or back-
ward so that the cable neither pushes or pulls
the pedal forward/backwards.
3. If necessary, adjust the rear elbow connector
located on the pump.
6.4 Brake cable
Danger!
NEVER use the machine if the brakes are faulty.
Caution!
The parking brake must not be used as an operating brake and must only be
engaged when the machine is already stationary. Incorrect use may damage
the components.
6.4.1 Disassembly
B
EE
A
D
C
1. Remove the tie which hold the cable in place.
2. Remove the cable (A) from the bracket (B).
3. Remove the cable (C) from the bracket (D).
4. Detach the end (E) from the parking brake.
5. Completely extract the cable.
