Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
3 Steering wheel
Page
26

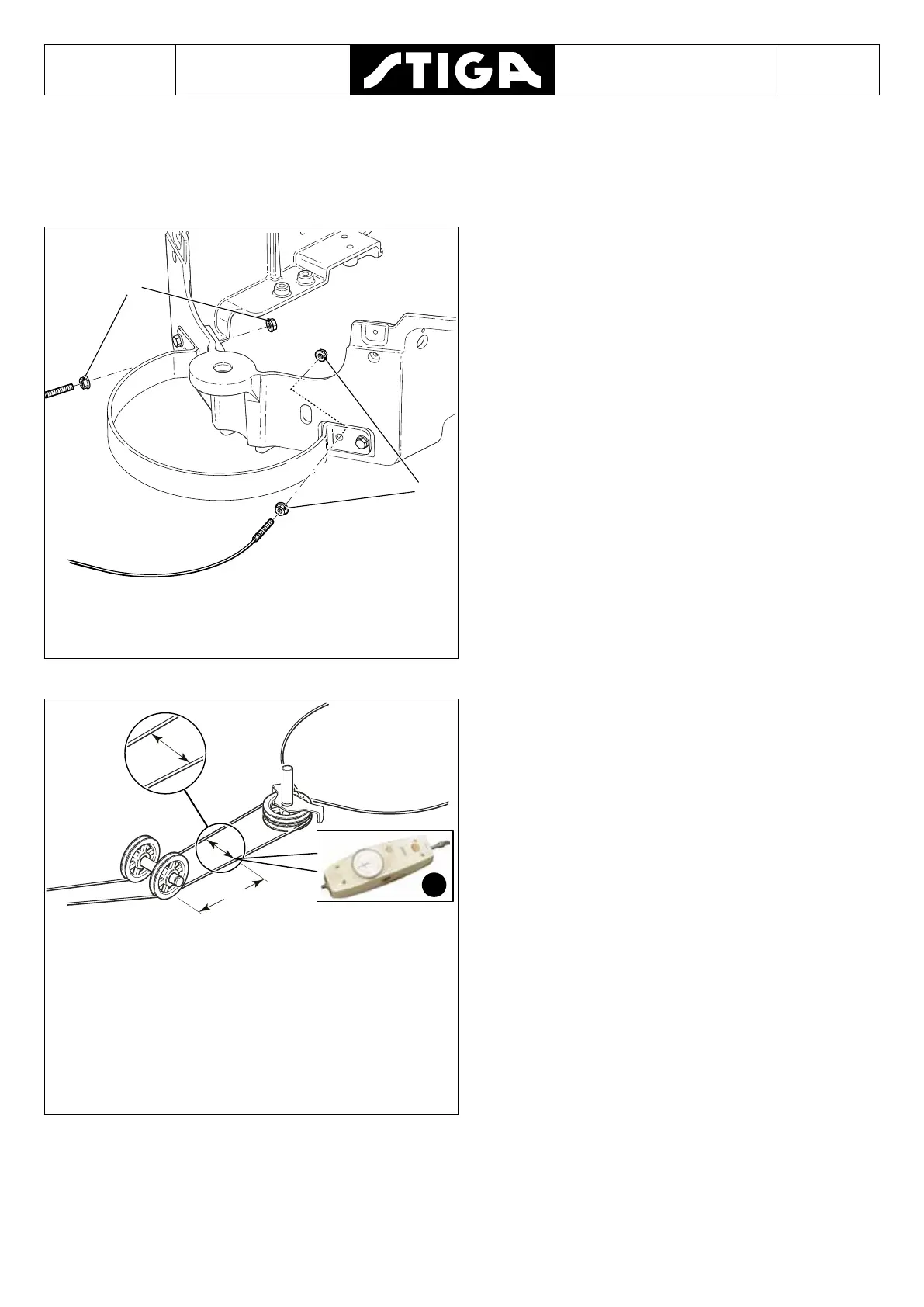

3.1.3 Adjustment
1. Adjust the nuts (A and B) on the two cable
ends to eliminate any play.
E
D
C
2. Make sure the cables are adequately tensioned.
Use a dynamometer. Attach the dynamometer
(C) to the cable at 10 cm (measurement D)
from the front pulley.
3. Apply a force of 5 - 7 kg. The distance (E)
between the cables should be approximately
45 mm.
4. Test drive the machine with the wheels straight
and check that the steering wheel is in the right
position.
5. If the steering wheel is turned, slacken rst one
nut and tighten the other (A or B) by the same
value. Repeat the procedure until the steering
wheel is in the right position. Tension the nuts
on the cables on both sides so that the wheels
are straight when the machine is also straight.
