Legacy U.S.A. (E)
3
Instruments and controls
3-3
– CONTINUED –

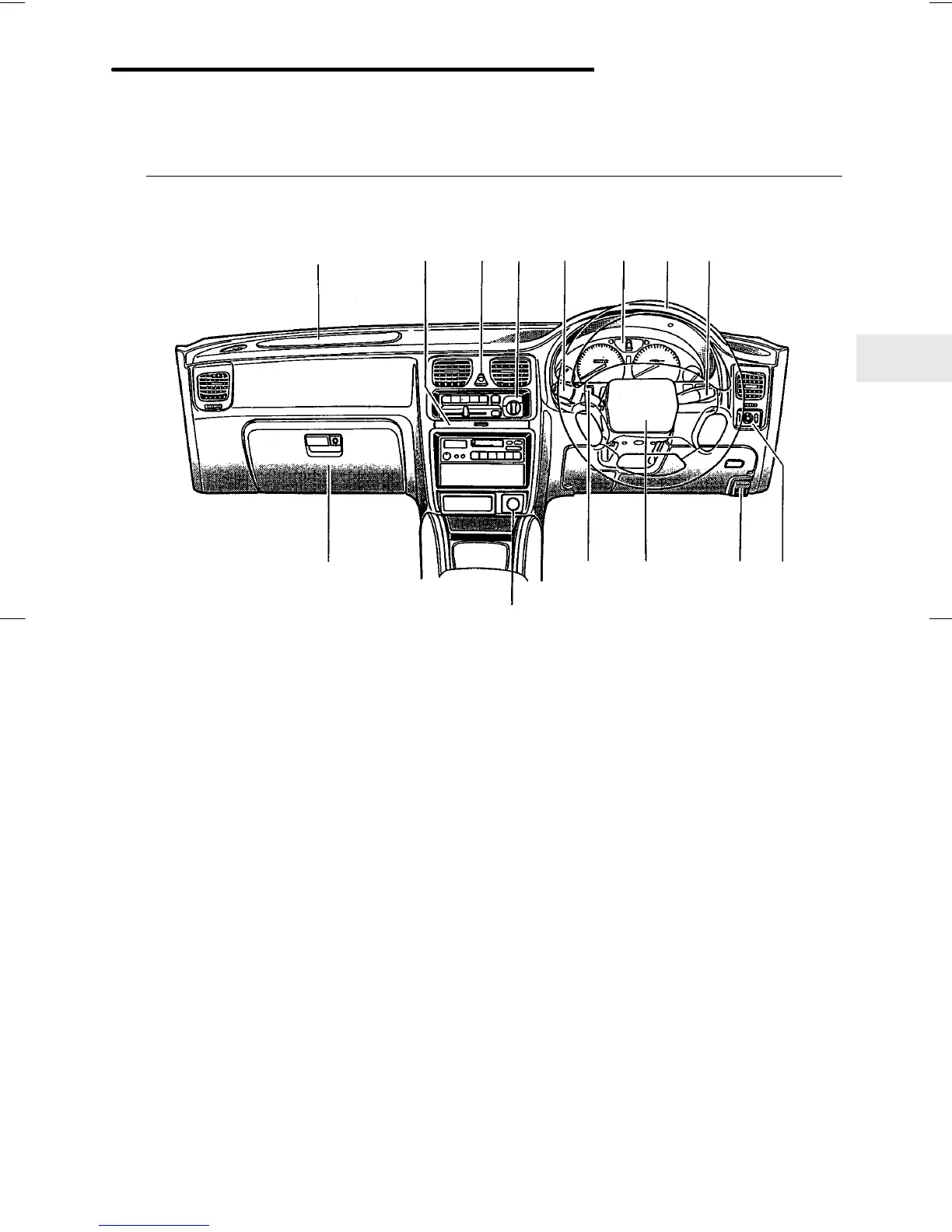

Instrument panel overview
(Right hand drive vehicles)
HB0300
3 4 5
1 Q 9
E
1 2
768
R
W
1 SRS AIRBAG (page 2-30)
2 Cup holder (page 6-5)
3 Hazard warning flasher (page 3-13)
4 Heater or air conditioner control (page 4-14)
5 Lighting, turn signal and illumination brightness control switch
(page 3-13)
6 Combination meter (page 3-4)
7 Steering (page 7-23)
8 Windshield wiper and washer switch (page 3-17)
9 Remote control mirror switch (page 3-25)
Q Hood lock release (page 1-21)
W Rear window defogger switch (page 3-23)
E Cigarette lighter socket (page 6-6)
R Glove compartment (page 6-4)
