Legacy U.S.A. (E)
4-14

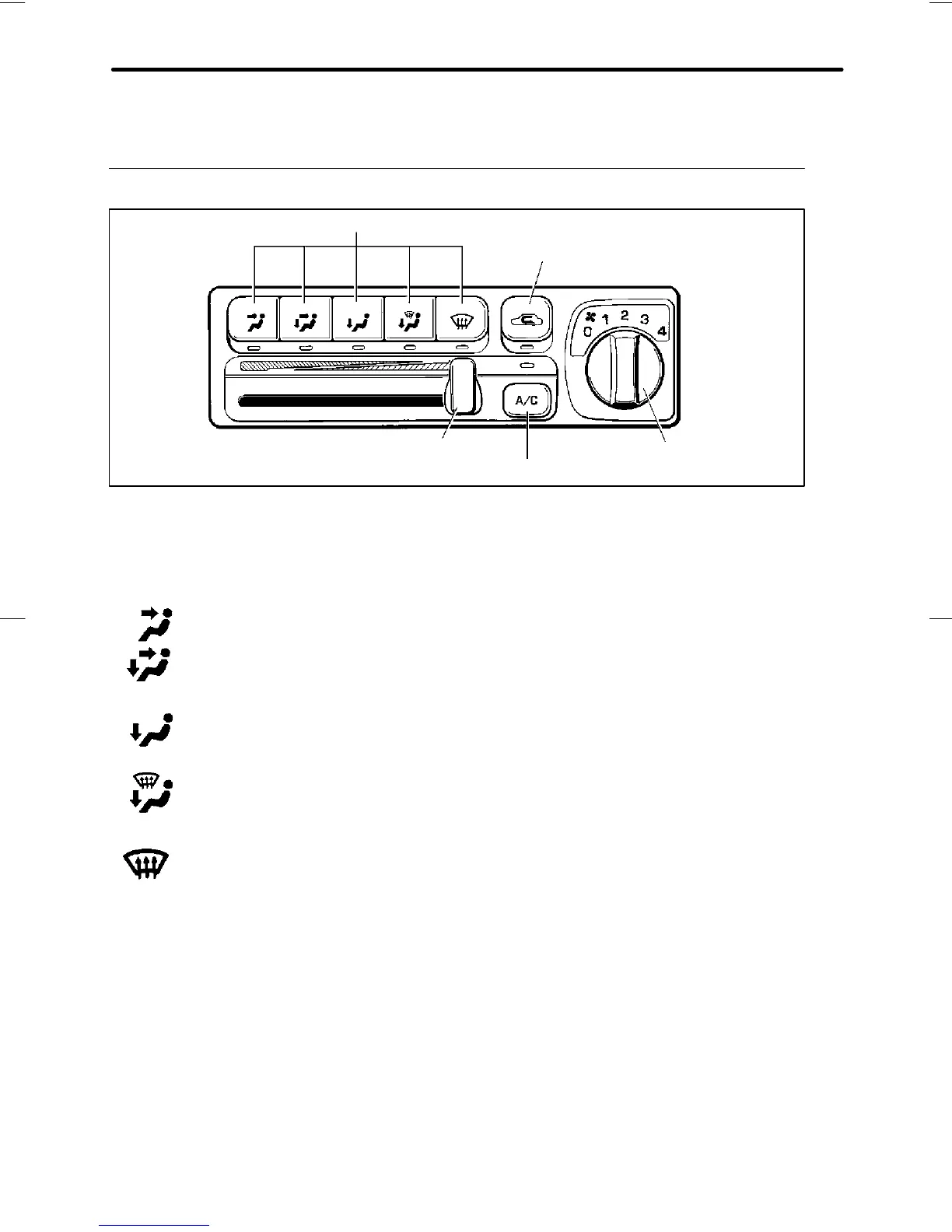

J Heating and air conditioning
(For right hand drive vehicles only)
Air flow control buttons
Air inlet selection button
Fan speed control dial
Temperature control lever
OM-H2507
Air conditioner button
J Air flow control buttons
These buttons allow you to select the air flow outlets.
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets and the foot out-
lets.
: Air flows through the foot outlets and some through the wind-
shield defroster outlets.
: Air flows through the windshield defroster outlets and foot out-
lets.
: Air flows through the windshield defroster outlets.
J Temperature control lever
This lever regulates the temperature of air flow from the air outlets over a
range from the blue area to red area.
J Fan speed control dial
The fan operates only when the ignition switch is turned to the “ON”
position. The fan speed control dial is used to select four fan speeds.
To Next Page
