5 Electrical Connection User Manual
step 6 Make the cable and crimp OT/DT terminal.

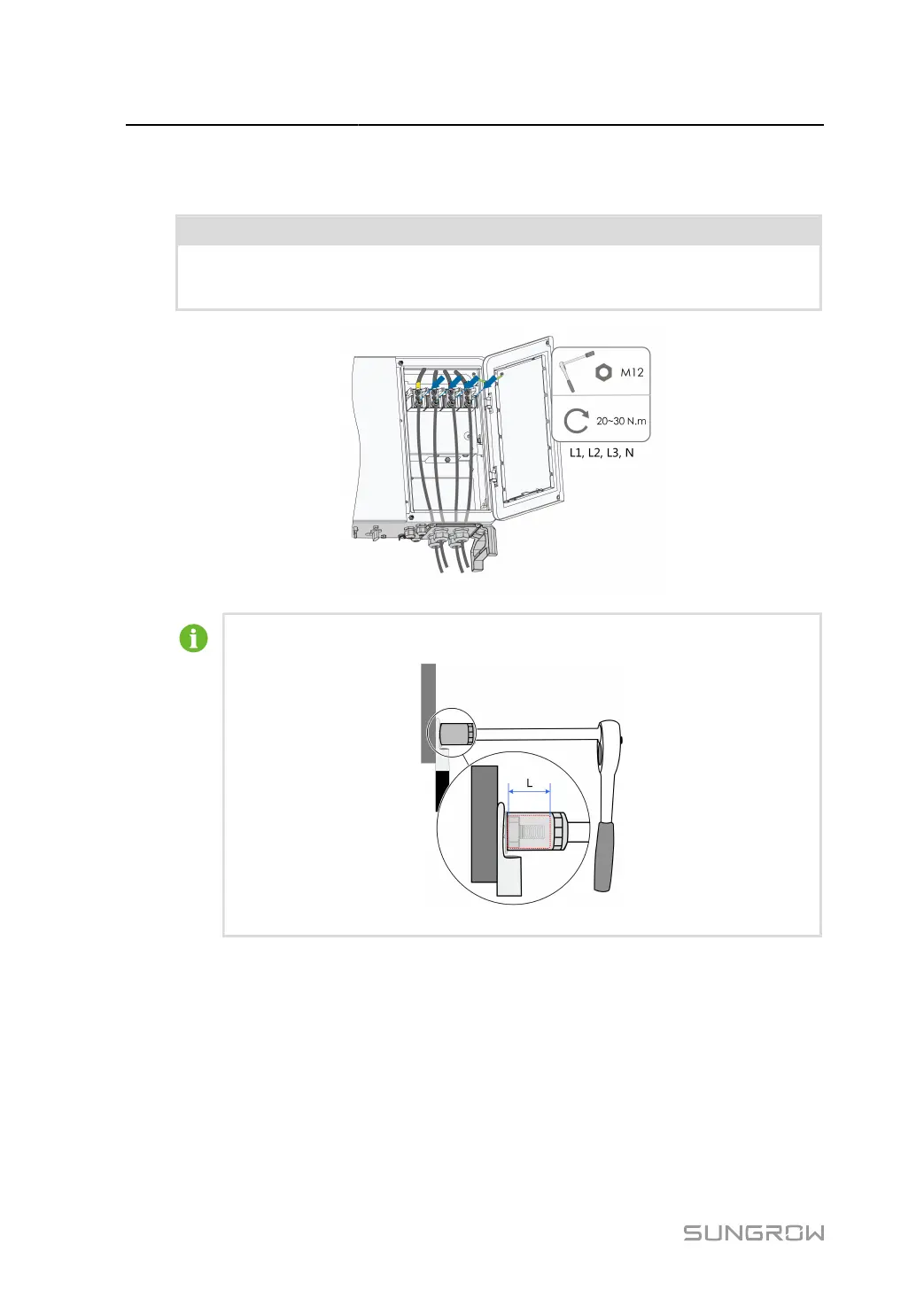

step 7 Secure the wires to corresponding terminals.
NOTICE
Note the terminal positions of PE wire and N wire. If a phase wire is connected to the PE
terminal or N terminal, unrecoverable damage may be caused to the inverter.
Ensure that the depth L of the socket used is not less than 28mm.
step 8
Gently pull the cable backwards to ensure firm connection, and fasten the swivel nut clockwise.
