Operation Manual 3 Product Description
11
3.1.5 Start/Stop Switch
The inverter can only start when the start/stop switch is put in the “start” position.
When you put the switch in the "stop" position, the inverter will stop through a stop
command sent to the control DSP.
3.2 Communication System
3.2.1 RS485 Communication
Logger
The inverter can communicate with Logger via the RS485 standard serial port. Logger
can monitor the communication of single or multiple inverters.

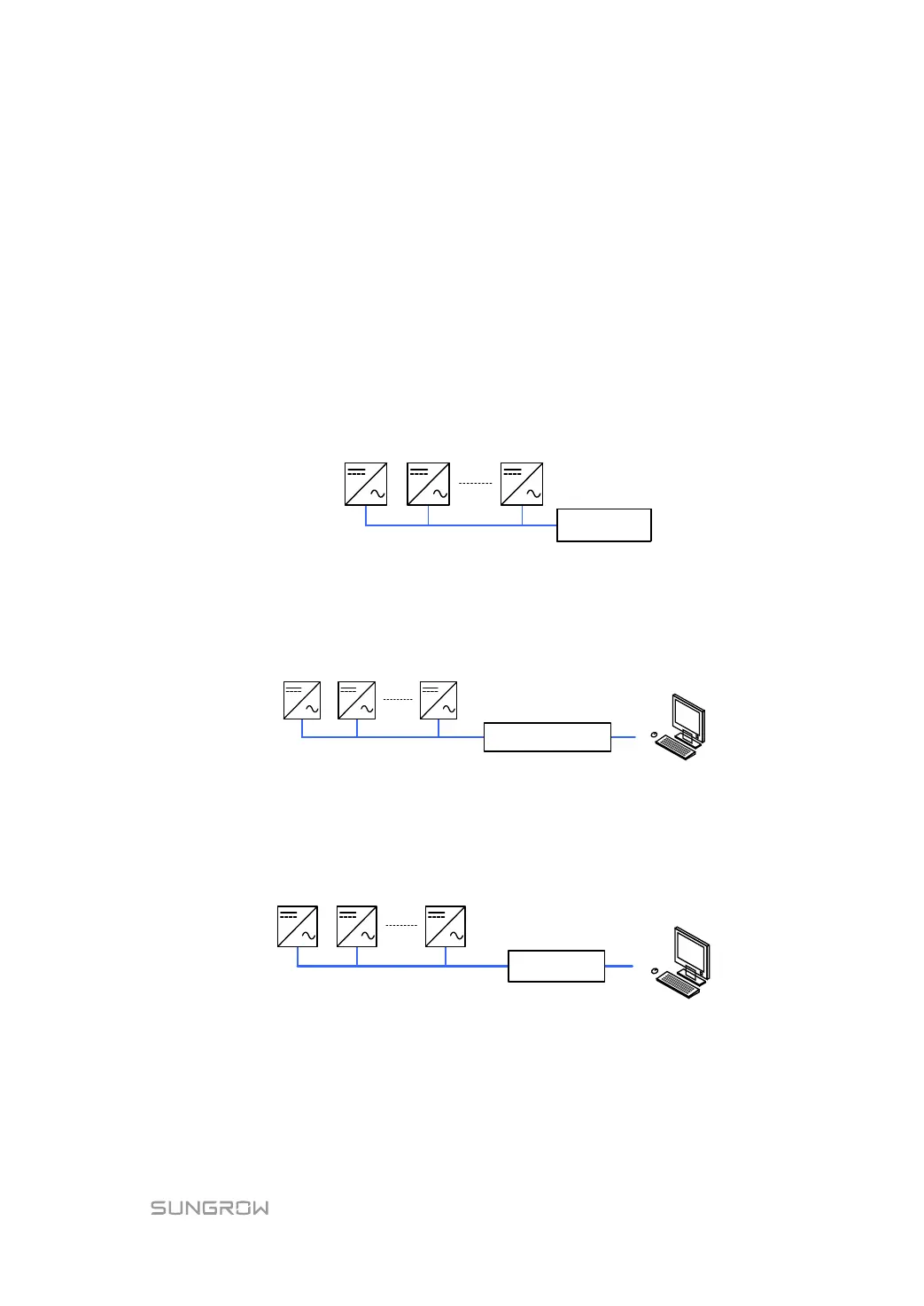

Fig. 3-1 Logger Collects Data through RS485
PC
Inverter communicates with PC via RS485/RS232 converter. Insight is used to monitor
the communication of single or multiple inverters.
Inverter
33 3
RS485/232 Converter
PC
Fig. 3-2 PC collects data through RS485 Bus
Logger + PC
One or more inverters communicate with PC via Logger. Insight is used to monitor the
communication.
Fig. 3-3 Logger & PC Collect Data through RS485 Bus
3.2.2 Ethernet
The inverter provides the Ethernet communication as standard configuration.
Single inverter communication
If there is only one inverter, you can connect the RJ45 port of the inverter to the RJ45 port
of the PC directly. Insight is used to monitor the communication.
