ENGINE 3-65
CYLINDER BLOCK/PISTON INSPECTION

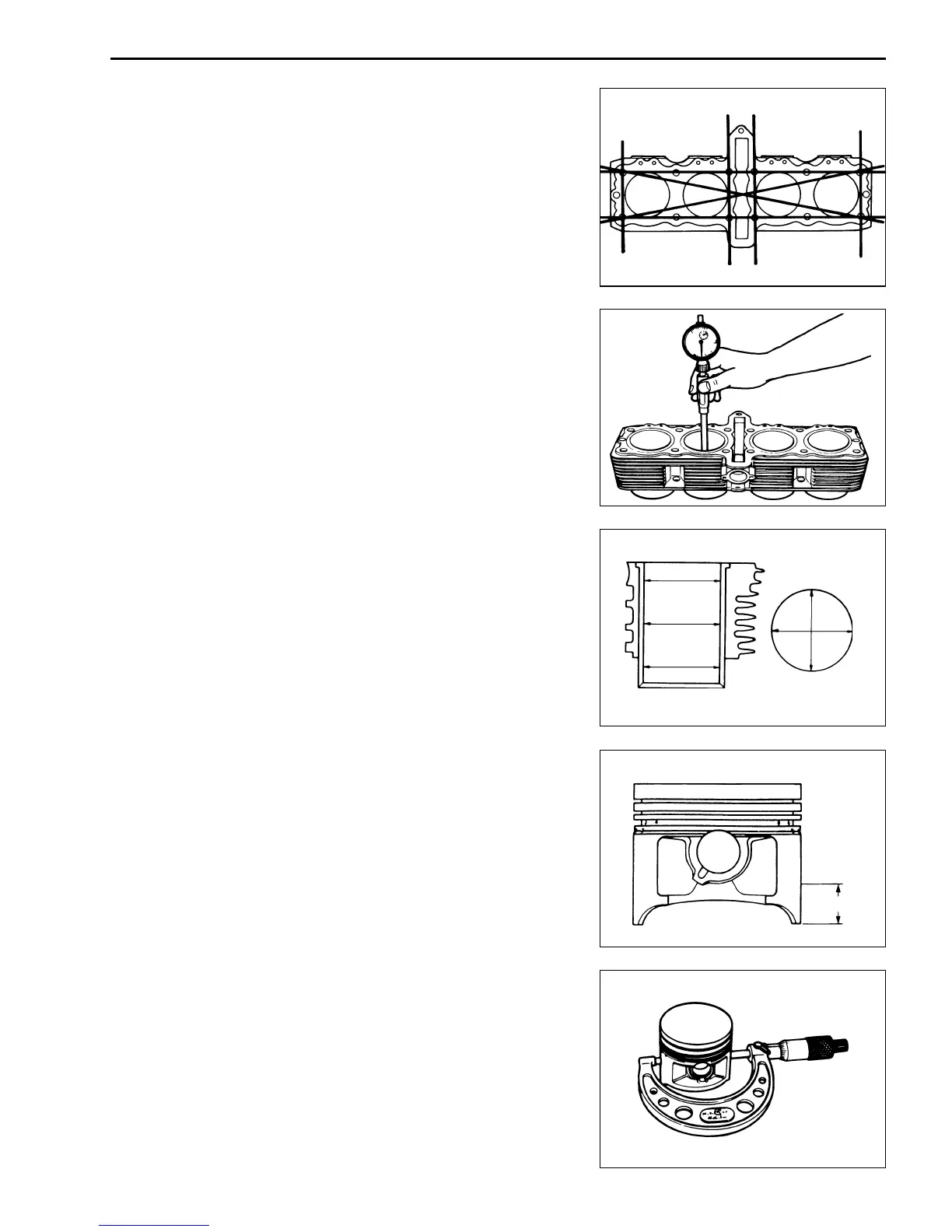

CYLINDER BLOCK DISTORTION
Check the gasket surface of the cylinder block for distortion. Use
a straightedge and thickness gauge. Take clearance readings at
several places. If any reading exceeds the service limit, replace
the cylinder block.
" 09900-20803: Thickness gauge
# Cylinder block distortion
Service Limit: 0.2 mm (0.008 in)
CYLINDER BORE
Measure the cylinder bore diameter at six places. If any one of
the measurements exceed the limit, overhaul the cylinder and
replace the piston with an oversize piston. The remaining cylin-
ders must also be rebored accordingly; otherwise, the imbalance
might cause excessive vibration.
" 09900-20508: Cylinder gauge set
# Cylinder bore
Standard: 79.000 – 79.015 mm (3.1102 – 3.1108 in)
Service Limit: 79.080 mm (3.1134 in)
PISTON DIAMETER
Measure the piston diameter using the micrometer at 15 mm from
the skirt end.
If the piston diameter is less than the service limit, replace the
piston.
" 09900-20204: Micrometer (75 – 100 mm)
# Piston diameter
Service Limit: 78.880 mm (3.1055 in)
15 mm

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
