CHASSIS 5-41
REMOUNTING

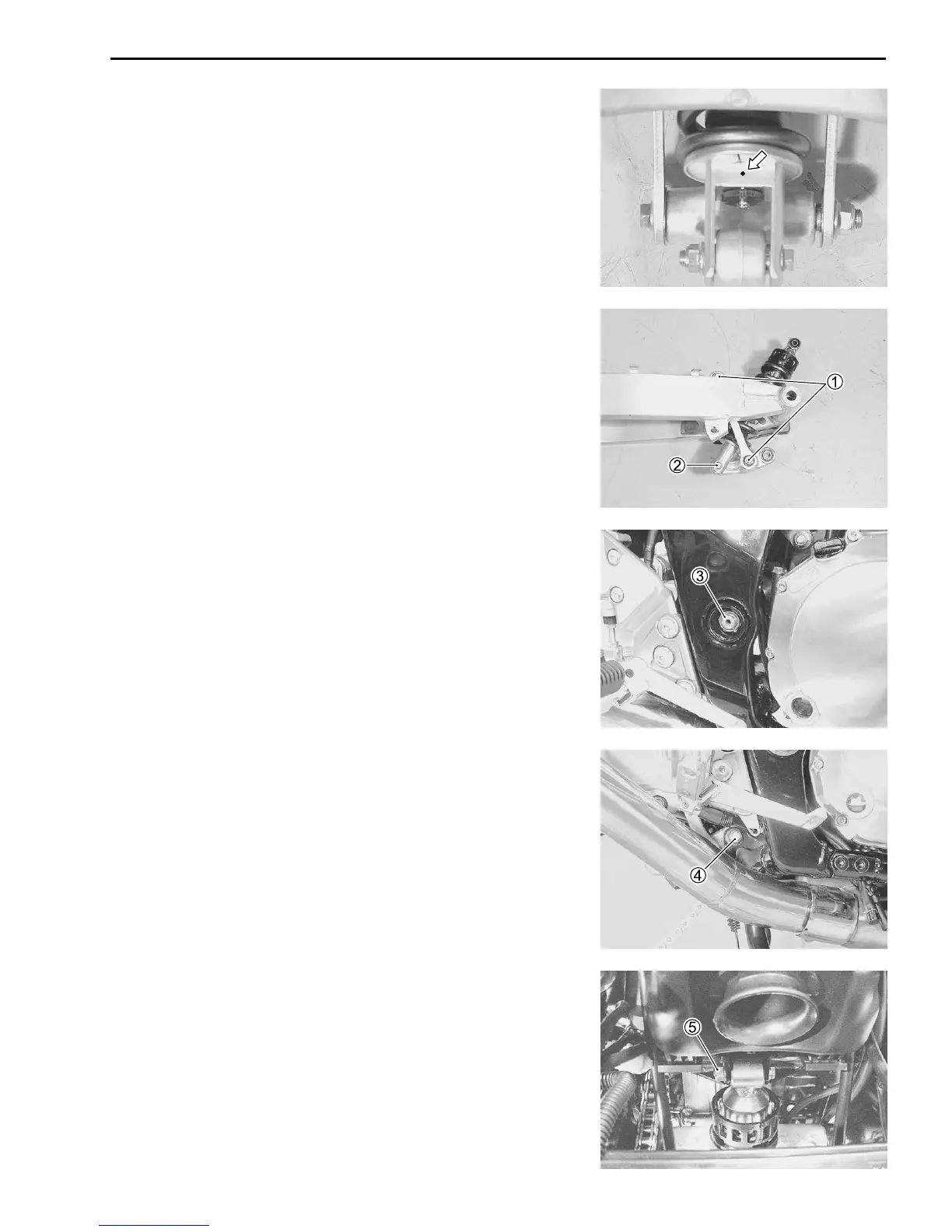

Remount the swingarm and rear shock absorber in the reverse
order of removal. Pay attention to the following points:
• When remount the rear shock absorber and cushion lever, set
the index punched mark rearward.
• Tighten the cushion lever rod mounting nuts 1 and rear shock
absorber lower mounting nut 2 to the specified torque.
" Cushion lever rod mounting nut 1:
78 N
.
m (7.8 kgf
.
m, 56.5 lb-ft)
Rear shock absorber lower mounting nut 2:
50 N
.
m (5.0 kgf
.
m, 36.0 lb-ft)
• Tighten the pivot shaft nut 3 to the specified torque.
" Pivot shaft nut: 100 N
.
m (10.0 kgf
.
m, 72.5 lb-ft)
• Tighten the rear shock absorber upper mounting nut 5 to the
specified torque.
" Rear shock absorber upper mounting nut:
50 N
.
m (5.0 kgf
.
m, 36.0 lb-ft)
• Tighten the cushion lever mounting nut 4 to the specified
torque.
" Cushion lever mounting nut: 78 N
.
m (7.8 kgf
.
m, 56.5 lb-ft)
