STARTER SYSTEM AND SIDE-STAND IGNITION INTERLOCK
SYSTEM

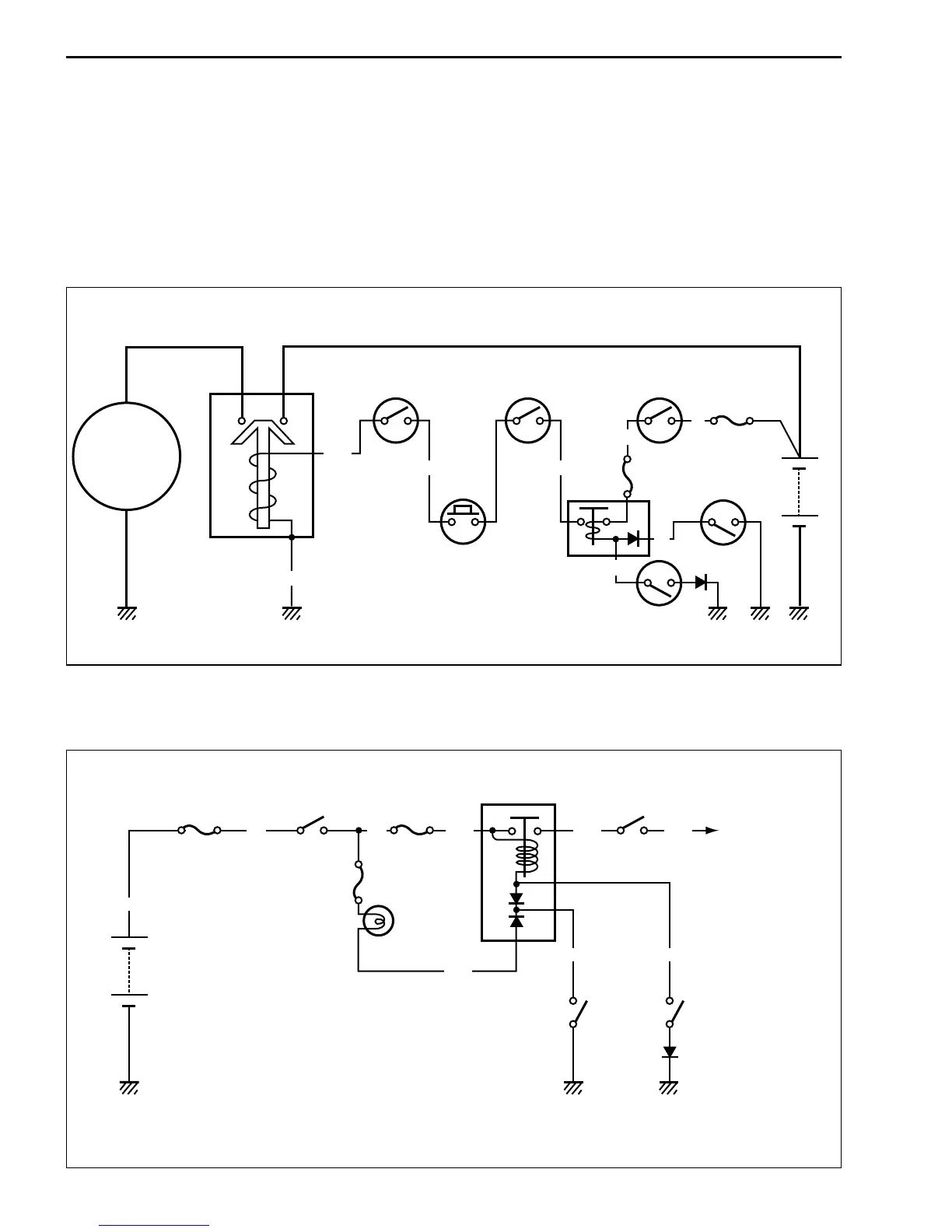

STARTER SYSTEM DESCRIPTION
The starter system consists of the following components: the starter motor, starter relay, clutch lever posi-
tion switch, turn signal/side-stand relay, side-stand switch, gear position switch, starter button, engine stop
switch, ignition switch and battery. Pressing the starter button (on the right handlebar switch) energizes
the starter relay, causing the contact points to close, thus completing the circuit from the starter motor to the
battery. The starter motor draws about 80 amperes to start the engine.
SIDE-STAND/IGNITION INTERLOCK SYSTEM DESCRIPTION
This side-stand/ignition interlock system prevents the motorcycle from being started with the side-stand
down. The system is operated by an electric circuit provided between the battery and ignition coil.
WIRE COLOR
G : Green
R : Red
Bl: Blue
O : Orange
Starter
motor
O/Y : Orange with Yellow tracer
O/B : Orange with Black tracer
O/W : Orange with White tracer
Bl/B : Blue with Black tracer
O/B O/W
R
R
Bl
G
Bl/B
O
O/Y
Clutch lever
position switch
Ignition
switch
Fuse (30 A)
Side-stand
switch
Starter relay
Starter
button
Fuse
(10 A)
Gear
position
switch
Battery
Engine stop
switch
Turn signal/
side-stand relay
Battery
Fuse (30 A)
Fuse (10 A)
Ignition
switch
Fuse (15 A)
Neutral
indicator light
Turn signal/
side-stand relay
Engine stop switch
Side-stand
switch
To ignitor
and ignition
coil
Gear
position
switch
To Next Page
