5-60 CHASSIS
1 Piston/cup set
2 Clutch hose
A Master cylinder bolt
B Union bolt
CLUTCH MASTER CYLINDER

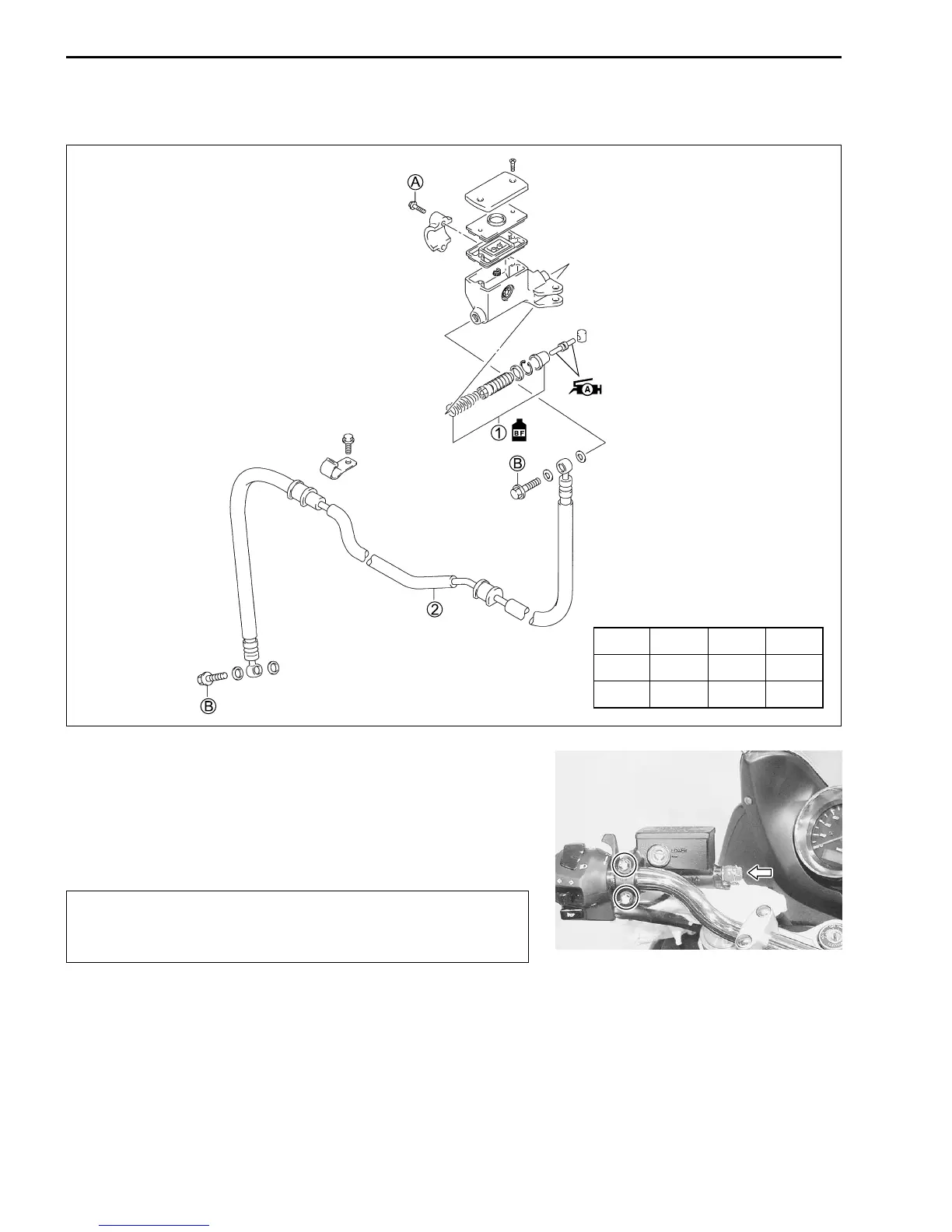

CONSTRUCTION
REMOVAL
• Disconnect the clutch lever position switch lead wires.
• Place a rag underneath the union bolt on the master cylinder to
catch spilled drops of brake fluid. Unscrew the union bolt and
disconnect the clutch hose from the master cylinder.
#
Completely wipe off any brake fluid adhering to any parts
of motorcycle. The fluid reacts chemically with paint, plas-
tics, rubber materials, etc. and will damage them severely.
• Remove the clutch master cylinder by removing its clamp bolts.
DISASSEMBLY AND REASSEMBLY
Disassemble and reassemble the clutch master cylinder in the
same manner of the front brake master cylinder.
(!5-49, 5-51)
"
ITEM N
.
m kgf
.
m lb-ft
A 10 1.0 7.0
B 23 2.3 16.5
