ELECTRICAL SYSTEM 6-17

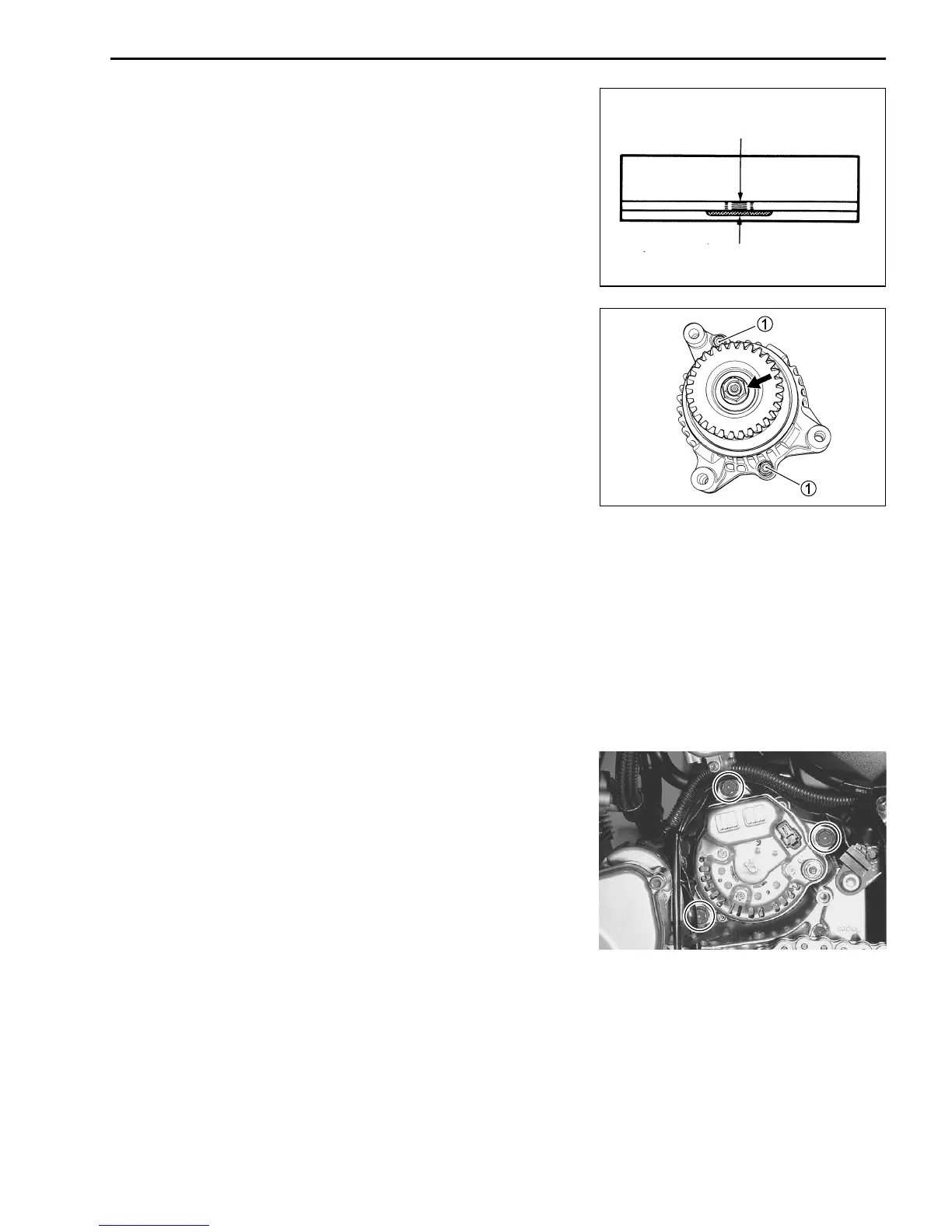

NOTE:
Before reinstalling the slip ring side bearing onto the generator
end housing, turn the expander ring and align the expander ring
lug with the center of the chamfered edge of the bearing outer
race.
• Tighten the generator housing nuts 1 to the specified torque.
( Generator housing nut: 4.5 N
.
m (0.45 kgf
.
m, 3.5 lb-ft)
• Tighten the generator driven gear nut to the specified torque.
( Generator driven gear nut: 55 N
.
m (5.5 kgf
.
m, 40.0 lb-ft)
NOTE:
After tightening the generator driven gear nut to the specified
torque, stake the nut using a punch.
• Tighten the generator mounting bolts to the specified torque.
( Generator mounting bolt: 25 N
.
m (2.5 kgf
.
m, 18.0 lb-ft)
• After mounting the generator, route the wire harness properly.
(!7-14)
• Remount the engine sprocket cover. (!3-10)
Expander ring lug
Chamfered edge

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
