4-16 FUEL SYSTEM

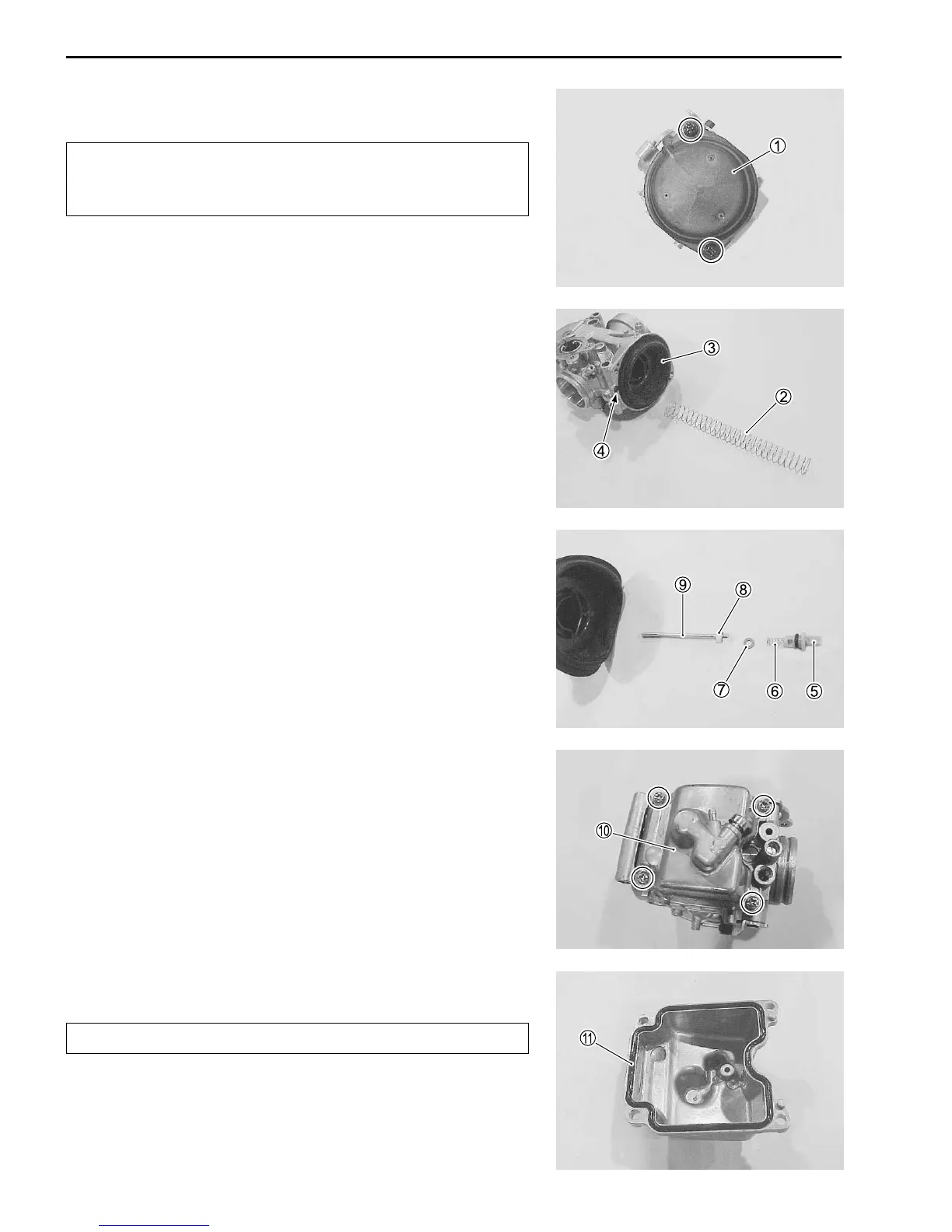

• Remove the top cap 1.
#
Do not use compressed air on the carburetor body, be-
fore removing the diaphragm; this may damage the dia-
phragm.
• Remove the spring 2 and the piston valve along with its dia-
phragm 3.
• Remove the O-ring 4.
• Remove the jet needle stopper 5, spring 6, washer 7, spacer
8 and jet needle 9.
• Remove the float chamber 0.
$ 09900-09004: Impact driver set
• Remove the O-ring A.
#
Use a new O-ring to prevent fuel leakage.

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
