CHASSIS 5-17

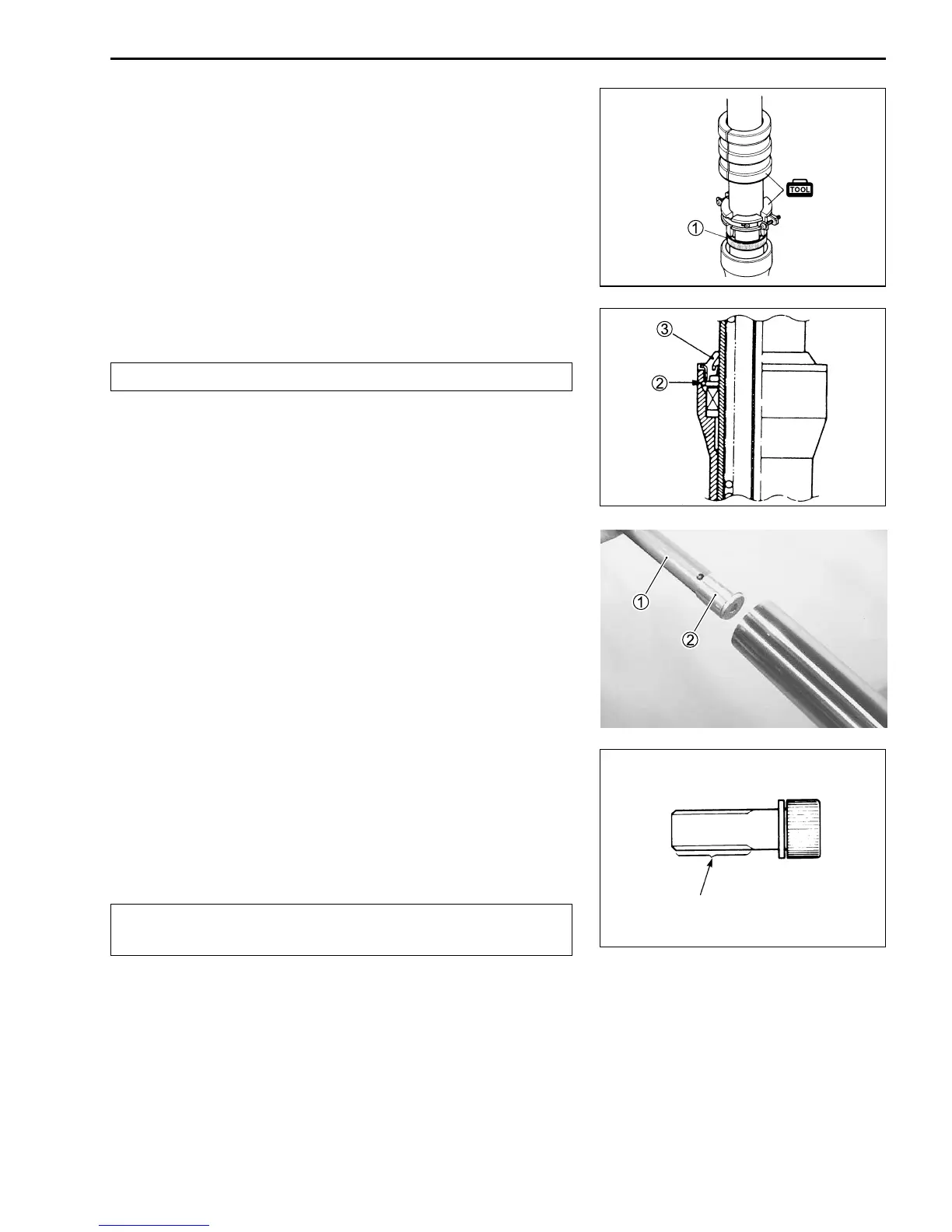

• Insert the inner tube into the outer tube and install the oil seal
1 using the special tool.
% 09940-52861: Front fork oil seal installer
• Install the oil seal stopper ring 2.
#
Make sure that the oil seal stopper ring is fitted securely.
• Install the dust seal 3.
DAMPER ROD BOLT
• Insert the inner rod/damper rod (cartridge) 1 and the oil lock
piece 2 into the inner tube.
• Apply THREAD LOCK “1342” to the damper rod bolt and tighten
it to the specified torque with a 6-mm hexagon wrench and
special tools.
(99000-32050: THREAD LOCK “1342”
" Damper rod bolt: 20 N
.
m (2.0 kgf
.
m, 14.5 lb-ft)
#
Use a new damper rod bolt gasket to prevent oil leak-
age.
THREAD LOCK “1342”

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
