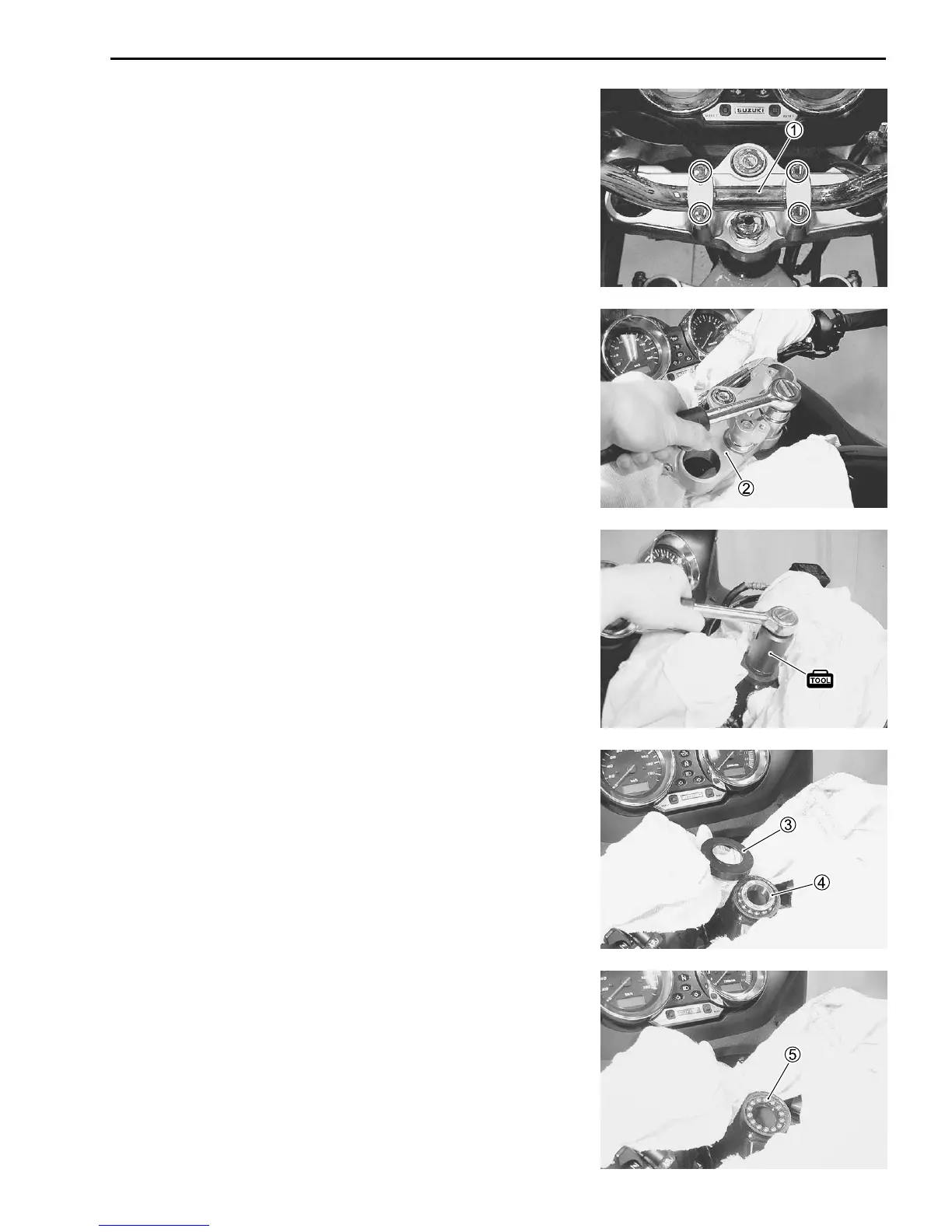

CHASSIS 5-23
• Remove the handlebars 1.
NOTE:
Place the rag on the fuel tank to prevent the fuel tank scratches.
• Remove the steering stem upper bracket 2.
• Remove the steering stem nut using the special tool.
% 09940-14911: Steering stem nut wrench
• Remove the steering stem lower bracket.
NOTE:
Hold the steering stem lower bracket to prevent it from falling.
• Remove the dust seal 3 and upper bearing inner race 4.
• Remove the steering stem upper bearing 5.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki GSF1200S 2001 and is the answer not in the manual?

Suzuki GSF1200S 2001 Specifications

General IconGeneral
Displacement1157 cc
Compression Ratio9.5:1
IgnitionElectronic ignition (Transistorized)
Transmission5-speed
Final DriveChain
Front SuspensionTelescopic, coil spring, oil damped
Front BrakesDual disc
Rear BrakesSingle disc
Front Tire120/70-ZR17
Rear Tire180/55-ZR17
Seat Height790 mm (31.1 inches)
Engine Type4-stroke, 4-cylinder, DOHC
Cooling SystemAir/oil-cooled
Rear SuspensionSwingarm, link type, coil spring, oil damped
Fuel Tank Capacity20 liters
Bore x Stroke79.0 mm x 59.0 mm
