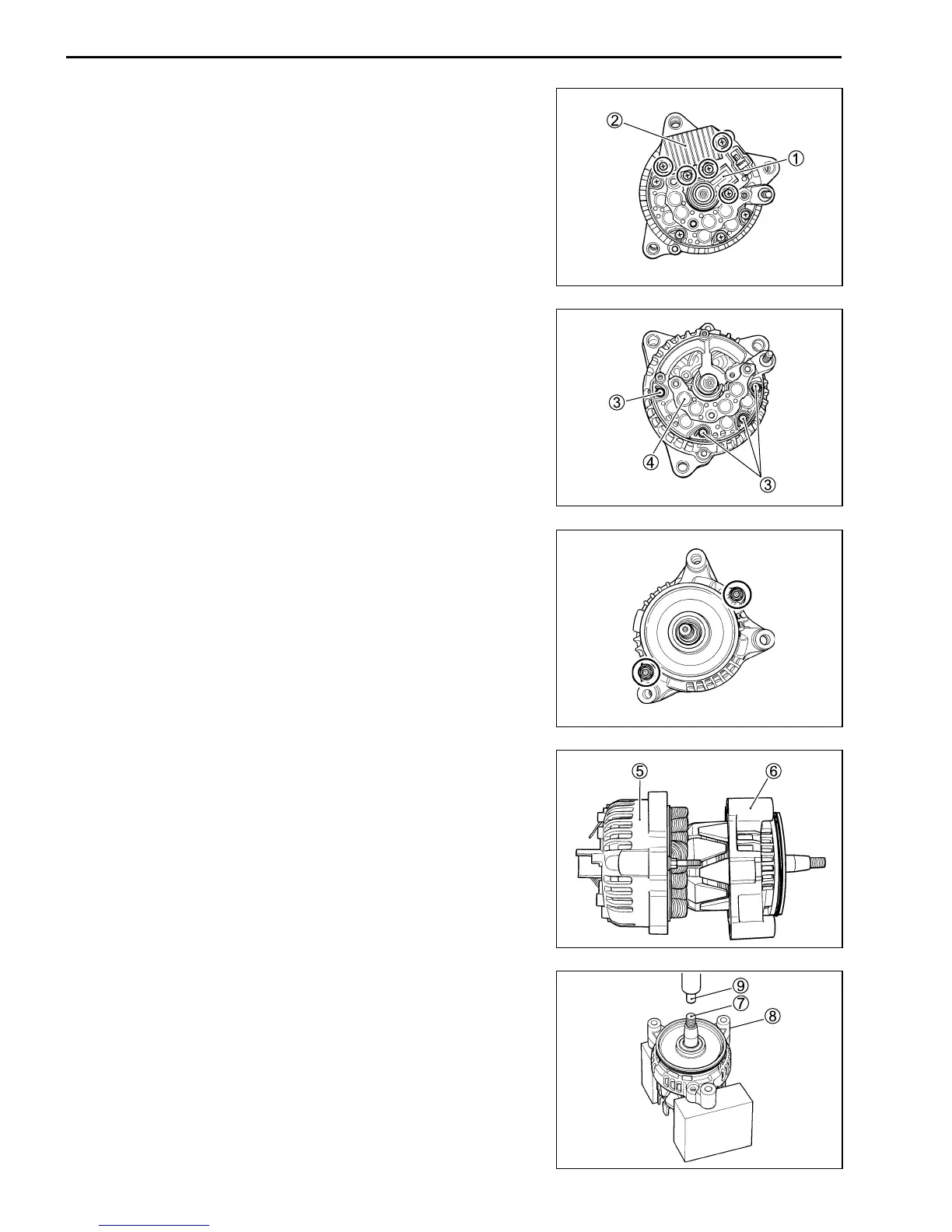

6-12 ELECTRICAL SYSTEM
• Remove the brush holder 1 and IC regulator 2.
• Remove the stator coil lead wires mounting screws 3.
• Remove the rectifier 4.
NOTE:
Straighten the stator coil lead wires using long-nose pliers, then
remove the rectifier.
• Remove the generator housing nuts.
• Separate the generator housing 5 from the generator end hous-
ing 6.
• Remove the rotor 7 from the generator end housing 8 using a
hand press 9 as shown.
