ELECTRICAL SYSTEM 6-25

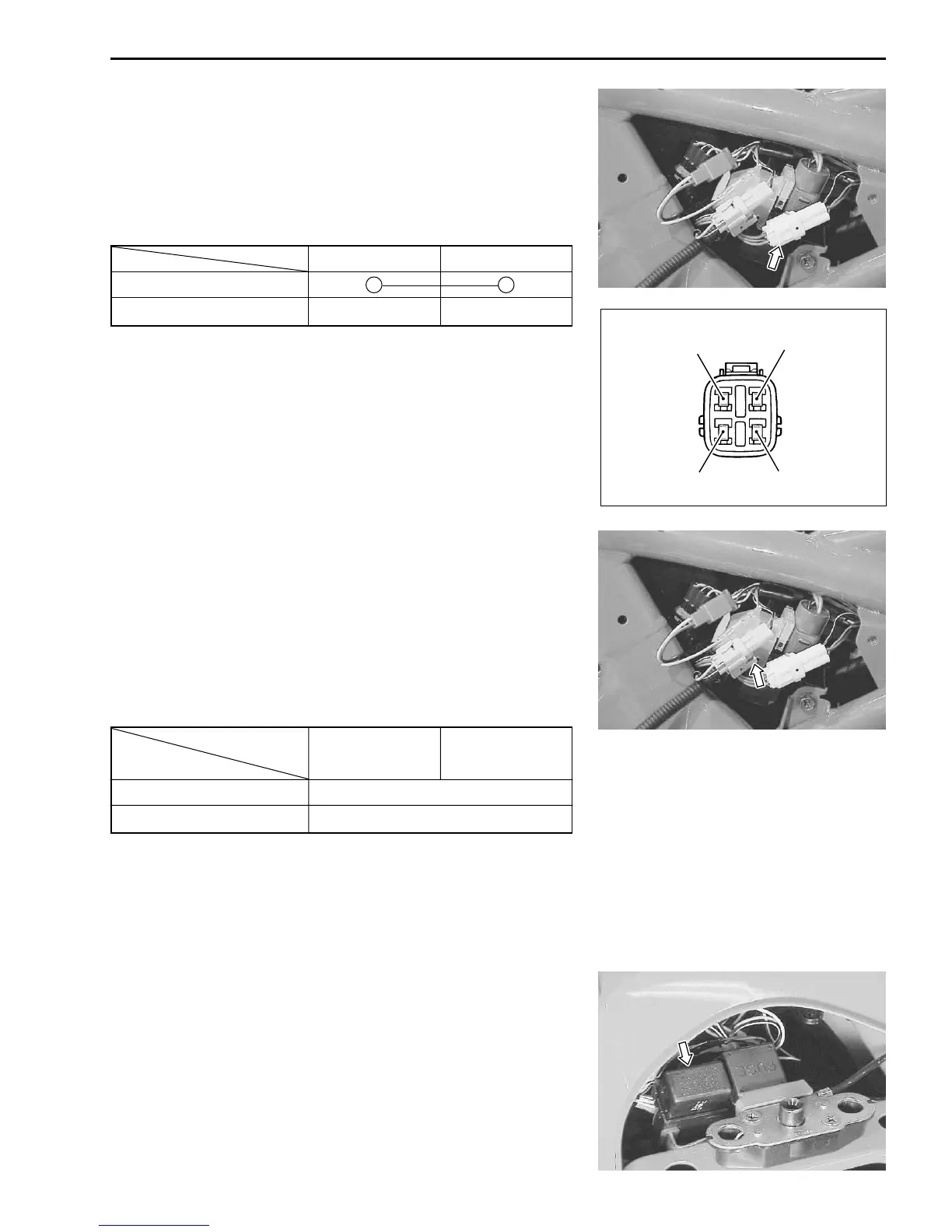

GEAR POSITION SWITCH
The gear position switch coupler is located behind the frame side
cover (left side).
• Remove the frame side cover (left side). (!5-6)
• Disconnect the gear position switch coupler and measure the
continuity between Blue and Ground with the transmission in
neutral.
SIDE-STAND SWITCH
The side-stand switch coupler is located behind the frame side
cover (left side).
• Remove the frame side cover (left side). (!5-6)
• Disconnect the side-stand switch coupler and measure the volt-
age between Green and Black/White lead wires.
# 09900-25008: Multi circuit tester set
, Tester knob indication: Diode test (
--
--
-)
Blue Ground
ON (in neutral)
OFF (not in neutral)
# 09900-25008: Multi circuit tester set
* Tester knob indication: Continuity test (+)
Green Black/White
(+ probe) (- probe)
ON (side-stand up) 0.4 – 0.6 V
OFF (side-stand down) 1.4 – 1.5 V
NOTE:
If the tester reads under 1.4 V, replace its battery when the tester
probes are not connected.
TURN SIGNAL/SIDE-STAND RELAY
The turn signal/side-stand relay, which is located under the seat,
is composed of the turn signal relay, and the side-stand relay and
diode.
• Remove the seat. (!5-5)
Blue
Red/Black
Green
Black/White
(Ground)
