8-76 CHASSIS

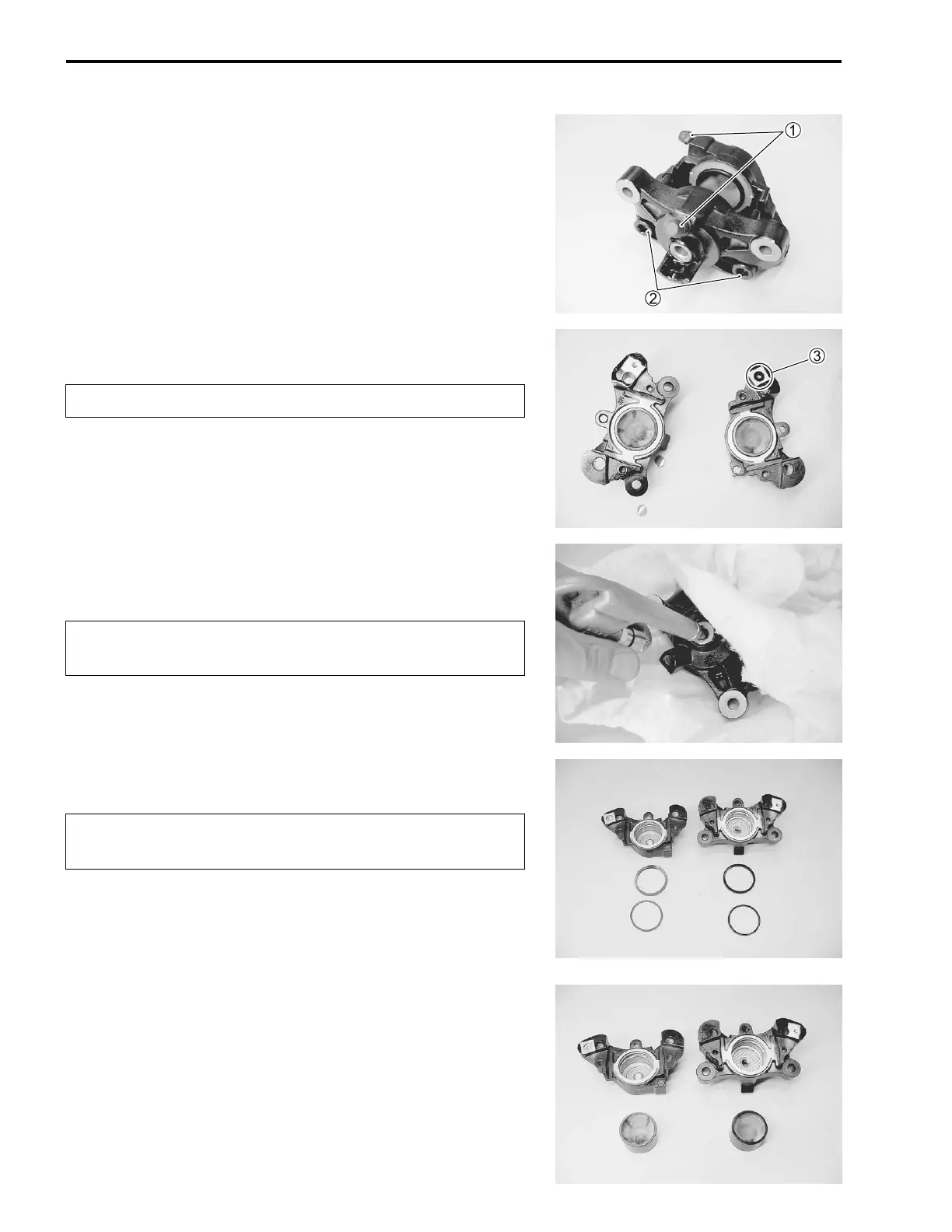

CALIPER DISASSEMBLY
• Remove the caliper air bleeder valve 1.
• Remove the caliper housing bolts 2.
• Separate the caliper halves.
• Remove the O-ring 3.

• Place a rag over the piston to prevent it from popping out and
then force out the pistons using compressed air.

• Remove the dust seals and piston seals.

CALIPER INSPECTION
CALIPER INSPECTION (8-66)
BRAKE DISC INSPECTION (8-68)
 Service Limit
Rear disc thickness: 4.5 mm (0.18 in)
Rear disc runout: 0.30 mm (0.012 in)
Replace the O-ring with a new one.
Avoid using high pressure air to prevent piston dam-
age.
Avoid reusing the dust seals and piston seals to pre-
vent fluid leakage.
